Denon AVR-1913 Service Manual

51

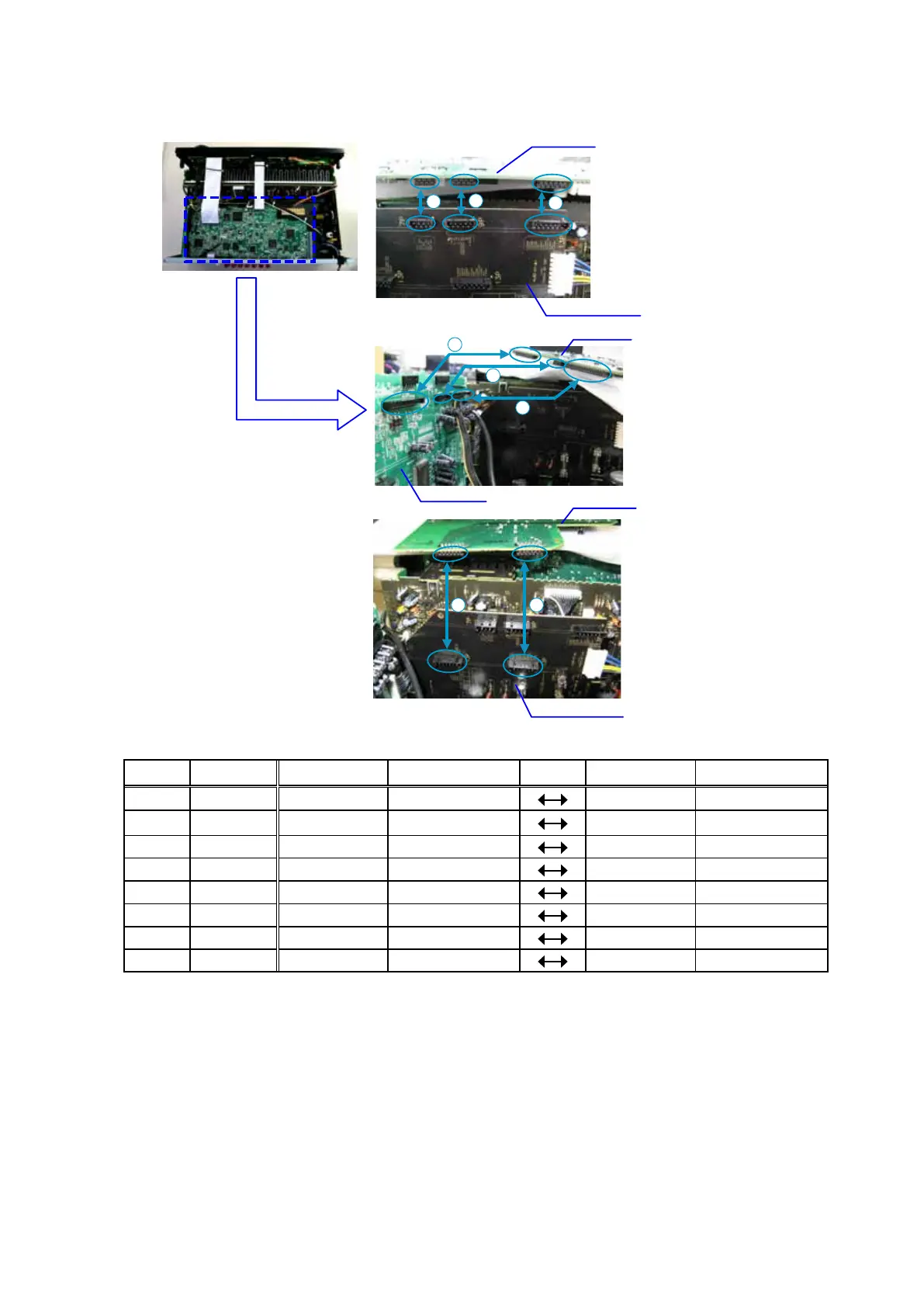

(4) Connect the eight extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
7pin CP3404 FRONT CNT
N3404 HDMI
w
9pin CP3402 FRONT CNT
N3402 HDMI
e
13pin CP3401 FRONT CNT
N3401 HDMI
r
23pin CP4200 INPUT PCB
N3407 HDMI
t
7pin CP4203 INPUT PCB
N3406 HDMI
y
31pin CP4201 INPUT PCB
N3403 HDMI
u
13pin CP5001 FRONT CNT CN5001 VIDEO
i
13pin CP5000 FRONT CNT CN5000 VIDEO
PCB HDMI
PCB FRONT CNT
PCB INPUT
PCB FRONT CNT
PCB HDMI
PCB VIDEO
1
3
4
5
6
7 8
2

Denon AVR-1913 Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Audio formats supported	AAC, FLAC, MP3, WMA
Ethernet LAN	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	162 mm
Width	434.3 mm
Height	328.9 mm
Weight	9099 g
