Denon AVR-1913 Service Manual

91

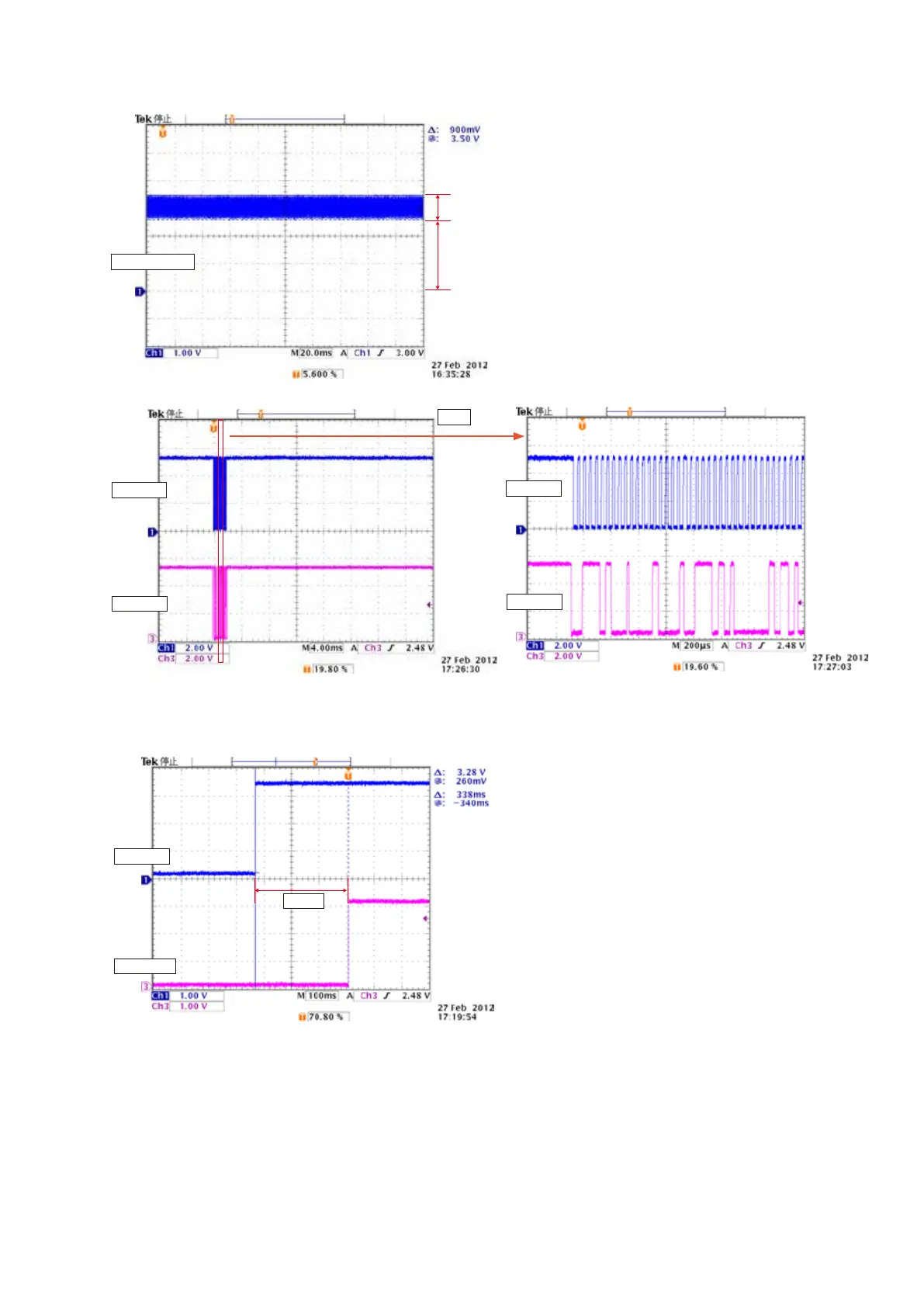

DDC_CLK/DDC_DATA/TMDS : Check items HDMI to HDMI (17)/(19)/(24)
Timing waveform illustration from the start of CEC3.3V to when reset is released : Check items (22)
TMDS Waveform
0.9V
2.6V
DDC_CLK
Zoom
DDC_DATA
CEC3.3V
338ms
3002RESET
DDC_CLK
DDC_DATA
