Denon AVR-1913 Service Manual

92

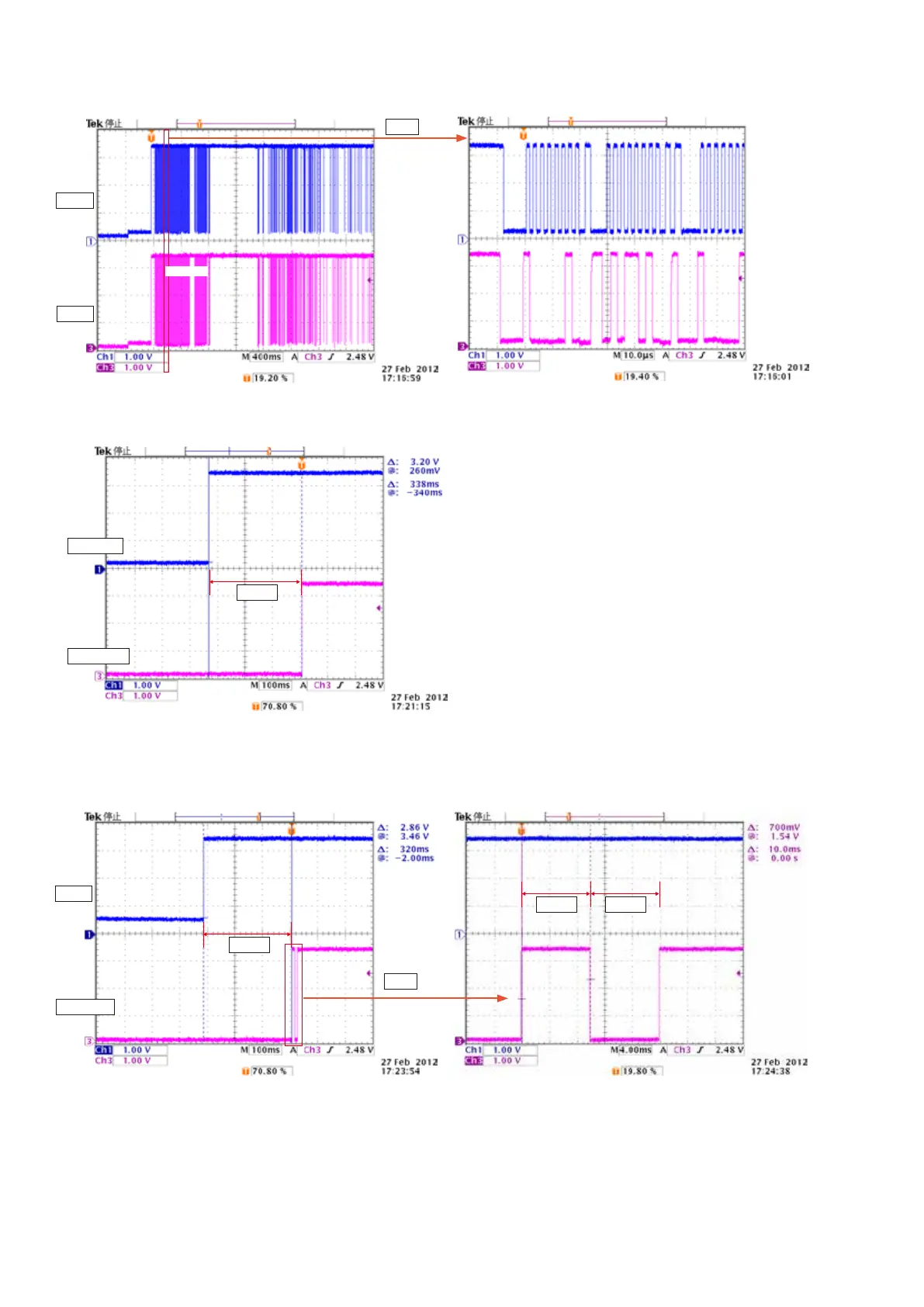

Controlled waveform (I2C), when power is turned on : Check items (23)
Timing waveform illustration from the start of CEC3.3V to when reset is released : Check items (30)
Timing waveform illustration from the start of CEC3.3V to when reset is released : Check items (27)
CEC3.3V
338ms
7850RESET
320ms
DV3.3V
Zoom
8002RESET
10ms 10ms
HSCL
Zoom
HSDA
330ms
