ENGLISH
ENGLISH
22

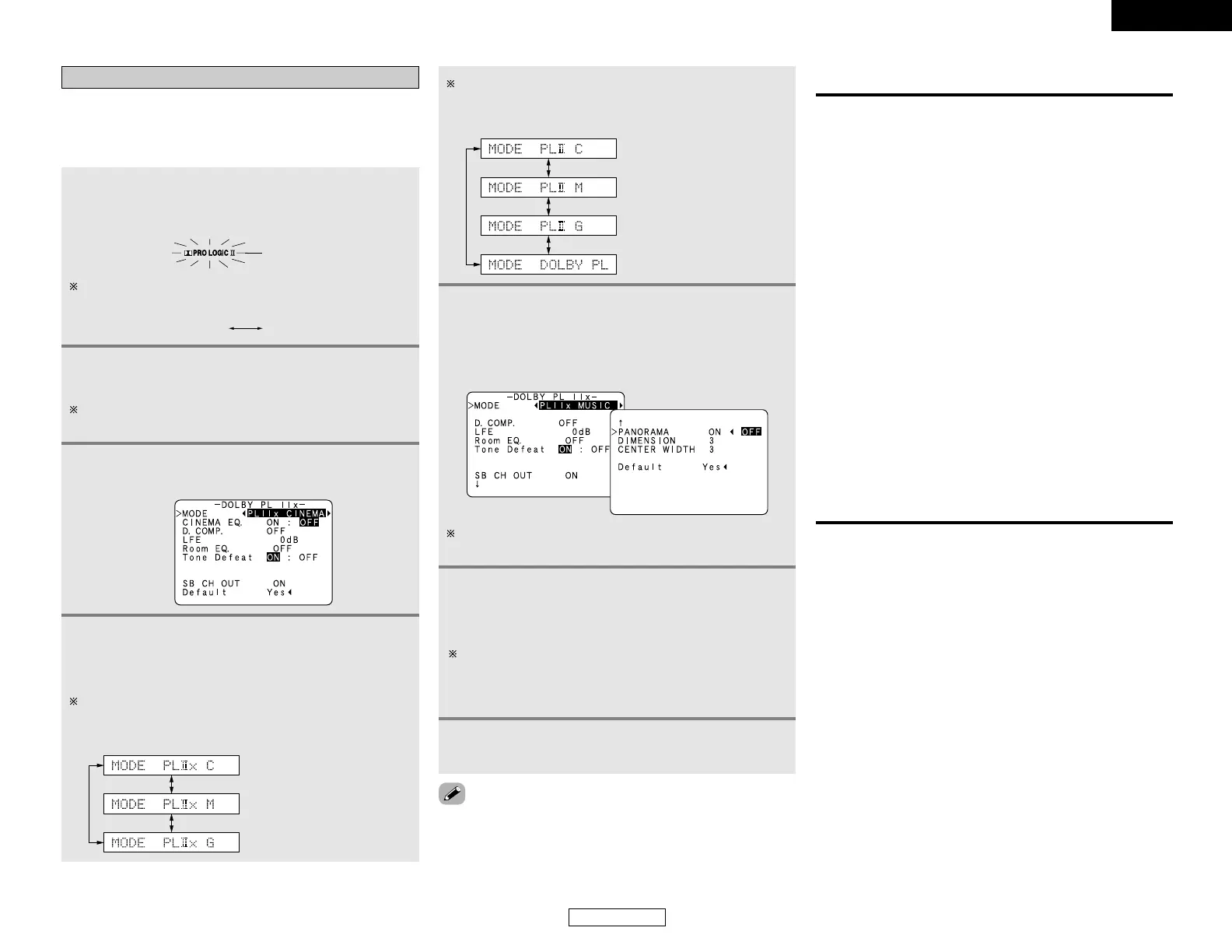

Basic Operation Basic Operation
4
Turn the SELECT knob, and press the CURSOR
FF
or
GG
button to select the optimum mode for
the source.
When the “SB CH OUT” parameter is set to “ON”. (Set “S.
BACK” at system setup to “SMALL” or “LARGE”.)
When the “SB CH OUT” parameter is set to “OFF”. (Set
“S. BACK” at system setup to “NONE”.)
Display
(Pro Logic II Cinema mode)
(Pro Logic
II Music mode)
(Pro Logic
II Game mode)
(Dolby Pro Logic mode)
Dolby Pro Logic
II
x (Pro Logic
II
) mode
• To play in the PLIIx mode, set “S. BackSp” at the “Speaker
Configuration” setting to “1sp” or “2sp”.
• To play in the PLIIx mode, set “Surround Back” at the “Power
Amp Assign.” setting.
1
Press the STANDARD button to select the Dolby
Pro Logic II
x mode.
• The Dolby Pro Logic II indicator lights.
Lights
2
Play a program source.
For operating instructions, refer to the manuals of the
respective components.
The mode switches as shown below each time the
STANDARD button is pressed.
3
Press the SURROUND PARAMETER button to
select the surround parameter mode.
See “Surround parameters q” for a description of the various
parameters.
5
Press the SURROUND PARAMETER button, and
press the CURSOR
DD
or
HH
button to select the
various parameters.
Example: DOLBY PLII x music mode screen
6
Turn the SELECT knob, and press the CURSOR
FF
or
GG
button to set the various surround
parameters.
When the surround parameters are set using the buttons on
the main unit, stop operating the buttons after completing
the settings. The settings are automatically finalized and the
normal display reappears after several seconds.
2 Surround parameters q
Pro Logic IIx and Pro Logic II Mode:
The Cinema mode is for use with stereo television shows and
all programs encoded in Dolby Surround.
The Music mode is recommended for stereo music and
surround-encoded stereo music sources.
The Pro Logic mode offers the same robust surround
processing as original Pro Logic in case the source content is
not of optimum quality.
The Game mode is for playing games. The game mode can only
be used with 2-channel audio sources.
Select one of the modes (“Cinema”, “Music”, “Pro Logic” or
“Game”).
• Panorama Control:
This mode extends the front stereo image to include the
surround speakers for an exciting “wraparound” effect with
side wall imaging.
Select “OFF” or “ON”.
• Dimension Control:
This control gradually adjusts the soundfield either towards
the front or towards the rear.
The control can be set in 7 steps from 0 to 6.
• Center Width Control:
This control adjusts the center image so it may be heard only
from the center speaker; only from the left/right speakers as
a phantom image; or from all three front speakers to varying
degrees.
The control can be set in 8 steps from 0 to 7.
Display
(Pro Logic IIx Cinema mode)
(Pro Logic IIx Music mode)
(Pro Logic
IIx Game mode)
7
Press the ENTER button to finish the surround
parameter mode.
• When making parameter settings, the display will return to the
regular condition several seconds after the last button was
pressed and the setting will be completed.
