ENGLISH
46

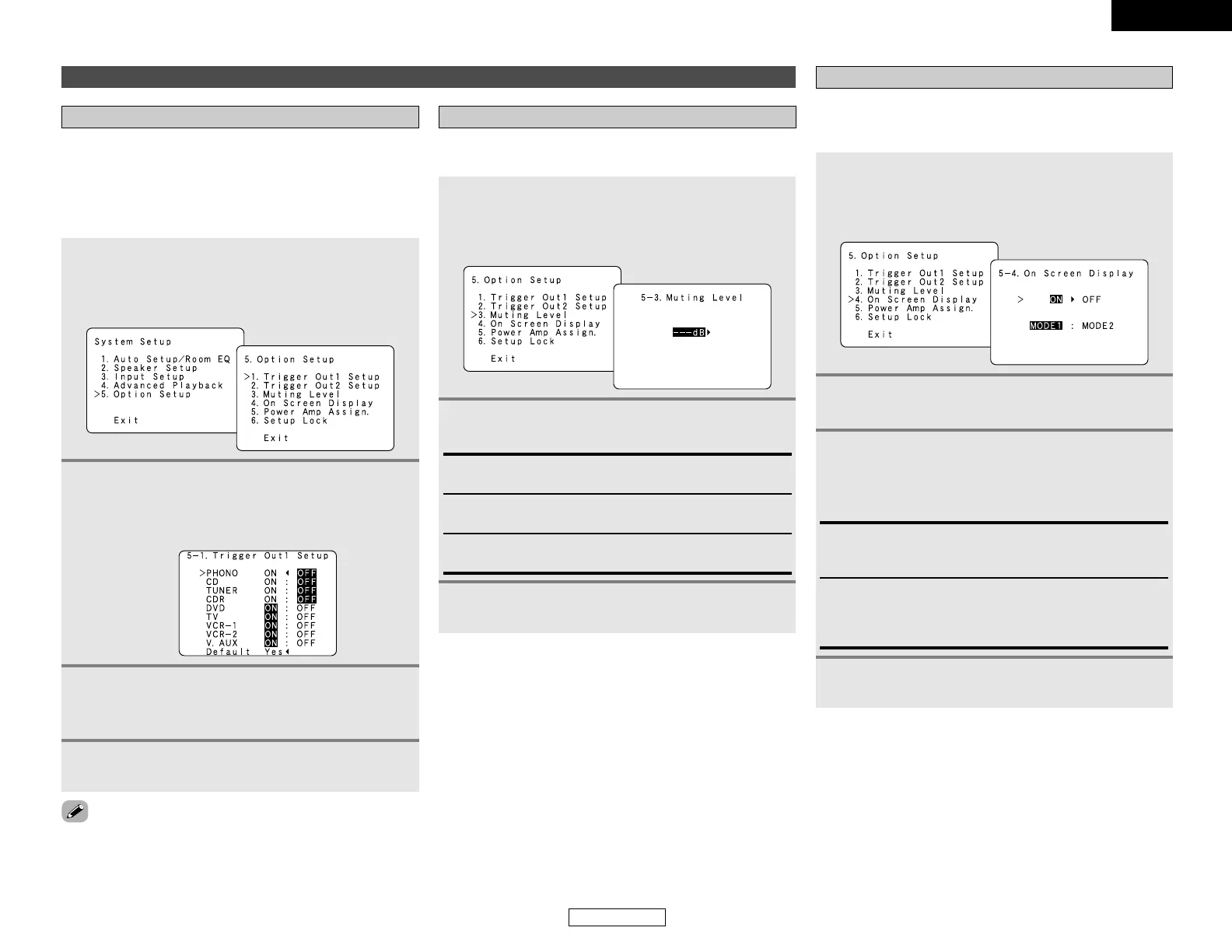

Advanced Setup – Part 1 Advanced Setup – Part 1
ENGLISH
Option Setup
3
Press the CURSOR
DD
or
HH
button to select the
input source, then press the CURSOR
FF
or
GG
button to select “ON” or “OFF”.
4
Press the ENTER button to enter the setting.
• The “Option Setup” menu appears.
• Two 12 V DC Trigger Outputs on the rear panel can be used to
control other devices with compatible trigger inputs, such as
motorized screens, motorized screen masking, motorized
drapes, and other trigger-controlled devices.
• Set the DC output supplied from the trigger out terminals for
the various input sources to “ON” or “OFF”.
Setting the Trigger Out Setup
1
Press the CURSOR
DD
or
HH
button to select
“Option Setup” at the “System Setup” menu,
then press the ENTER button.
• The “Option Setup” menu appears.
2
Press the CURSOR
DD
or
HH
button to select
“Trigger Out1 Setup”, then press the ENTER
button.
• The “Trigger Out1 Setup” screen appears.
2
Press the CURSOR
FF
or
GG
button to select the
desired setting.
3
Press the ENTER button to enter the setting.
• The “Option Setup” menu appears.
This sets the amount of attenuation applied for audio output
muting.
Setting the Muting Level
1
Press the CURSOR
DD
or
HH
button to select
“Muting Level” at the “Option Setup” menu,
then press the ENTER button.
• The “Muting Level” screen appears.
–20 dB:
Attenuation of the volume by –20 dB from the present level.
–40 dB:
Attenuation of the volume by –40 dB from the present level.
– – – dB:
The volume level is completely muted.
• Use this to turn the on screen display (messages other than the
menu screens) “ON” or “OFF”.
• Sets the on screen display mode.
Setting the On Screen Display (OSD)
1
Press the CURSOR
DD
or
HH
button to select “On
Screen Display” at the “Option Setup” menu,
then press the ENTER button.
• The “On Screen Display” screen appears.
2
Press the CURSOR
FF
or
GG
button to select “ON”
or “OFF”.
3
Press the CURSOR
DD
or
HH
button to select the
on screen display mode, then press the CURSOR
FF
or
GG
button to select “MODE1” or
“MODE2”.
4
Press the ENTER button to enter the setting.
• The “Option Setup” menu appears.
MODE1:
Prevents flickering of the on screen display when there is no
video signal.
MODE2:
Flickering is not prevented.
Use this mode if the on screen display does not appear in
MODE1, which may happen depending on the TV being used.
• Set the Trigger out 2 setup in the same way.
