Denon AVR-2106 Operating Instructions

ENGLISH
ENGLISH
27

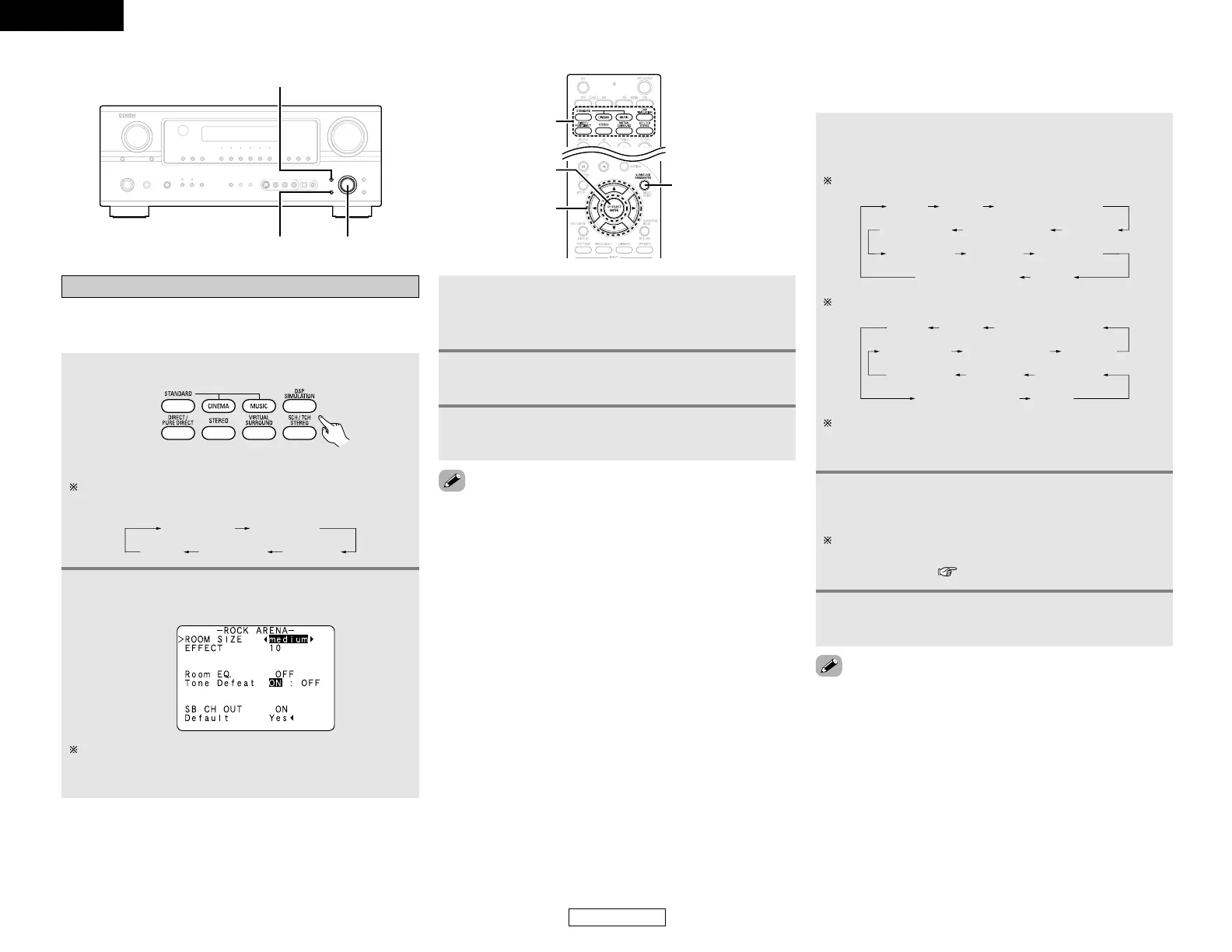

Basic Operation Basic Operation
• When making parameter settings, the display will return to the
regular condition several seconds after the last button was
pressed and the setting will be completed.
2
Press and hold in the SURROUND PARAMETER
button to select the parameter you want to set.
The parameters which can be set differ for the different
surround modes are displayed. (Refer to “Surround modes
and parameters” ( page 62).)
3
Display the parameter you want to adjust, then
turn the SELECT knob to set it.
When turned counterclockwise:
DIRECT STEREO
MONO MOVIE
DTS NEO:6
5CH/7CH STEREO
MATRIXVIRTUAL SURROUND
DOLBY PRO LOGIC
II x
ROCK ARENA
JAZZ CLUB VIDEO GAME
To select the surround mode while adjusting the surround
parameters, tone defeat or tone control, press the
SURROUND MODE button, then operate the selector.
• When making parameter settings, the display will return to the
regular condition several seconds after the last button was
pressed and the setting will be completed.
3
Press the SURROUND PARAMETER button, and
press the CURSOR
DD
or
HH
button to select the
various parameters.
5
Press the ENTER button to finish the surround
parameter mode.
4
Press the CURSOR
FF
or
GG
button to adjust the
parameter settings.
DSP surround simulation
2 To operate the surround mode and the surround
parameters from the remote control unit
1
Select the surround mode for the input channel.
(Remote control unit)
2
Press the SURROUND PARAMETER button to
enter the surround parameter setting mode.
The surround mode switches in the following order each
time the DSP SIMULATION button is pressed:
MONO MOVIE
ROCK ARENA
JAZZ CLUB
MATRIX
VIDEO GAME
The surround parameter switches in the following order
each time the SURROUND PARAMETER button is pressed for
the different surround modes.
2 Operating the surround mode and the surround
parameters from the main unit‘s panel
1
Turn the SELECT knob to select the surround
mode.
When turned clockwise:
DIRECT STEREO
MONO MOVIE
DTS NEO:6
5CH/7CH STEREO
MATRIXVIRTUAL SURROUND
DOLBY PRO LOGIC
II x
ROCK ARENA
JAZZ CLUB VIDEO GAME
SELECT
SURROUND PARAMETER
SURROUND MODE
SURROUND
PARAMETER
ENTER
SURROUND
MODE
CURSOR

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
