Denon AVR-2106 Operating Instructions

ENGLISH
38
Advanced Operation Advanced Operation
ENGLISH
2 When using the SURR.BACK/ZONE2 amplifier as the ZONE2
• The SPEAKER OUT, LINE OUT and PRE OUT terminals can be used simultaneously in ZONE2.
• To use the ZONE2, turn on the ZONE2 button.
• The output of the ZONE2 SPEAKER OUT terminals can be adjusted with the remote control unit’s ZONE2 VOLUME button.

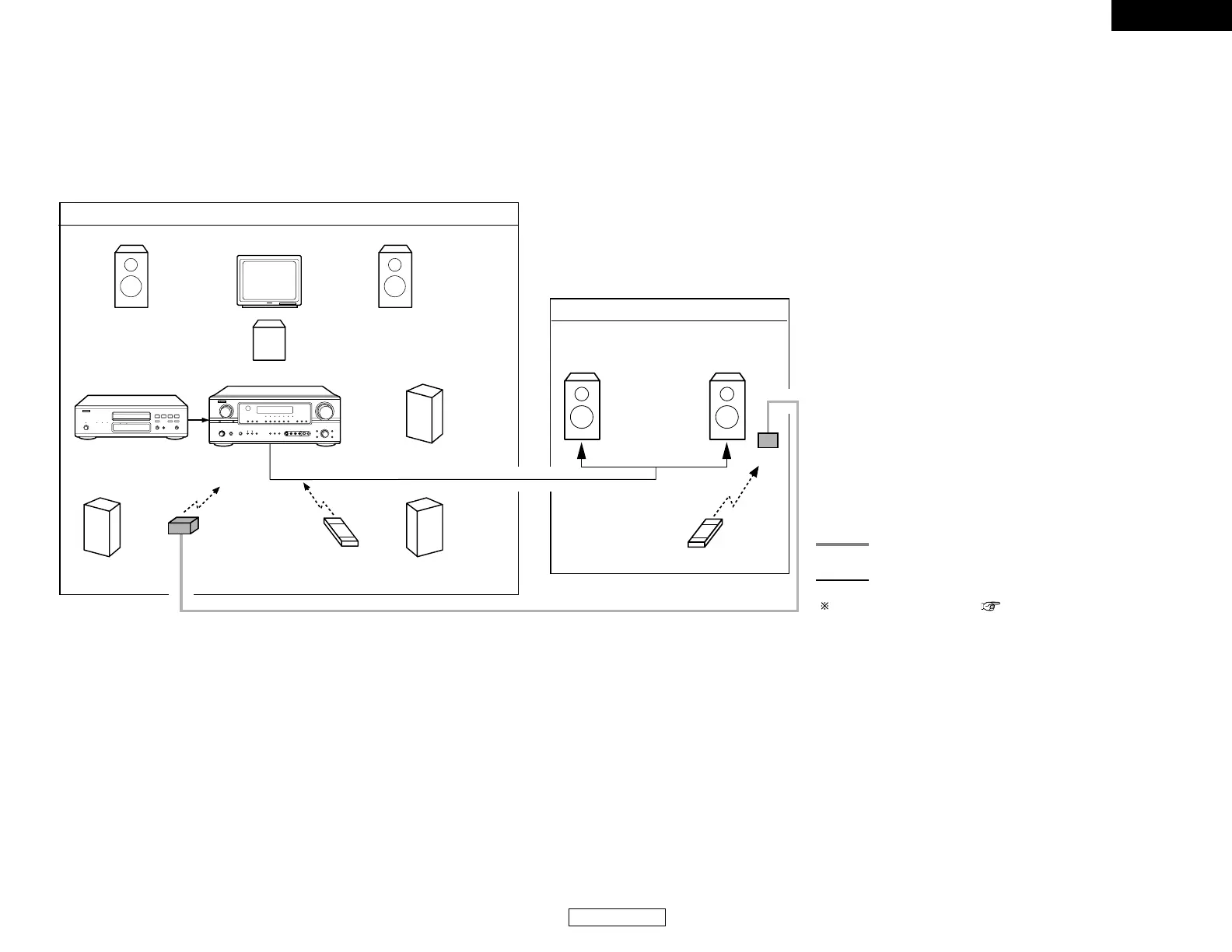

[System configuration and connections example]
Using this unit’s internal amplifier as the ZONE2.
This unit
DVD player
Input
RC-616
Monitor
MAIN ZONE 5.1-channel systems
ZONE2 SPEAKER OUT
SYSTEM REMOTE
CONTROL UNIT RC-1015
C
FL FR
SL
SW
SR
B
RC-617
PROGRAMMABLE
REMOTE CONTROL UNIT
ZONE2
: SPEAKER cable
: ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
Refer to “Connections” ( page 18).

Denon AVR-2106 Specifications

Audio Specifications

front rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
center rated output	90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
surround back rated output	90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)
dynamic power	120 W x 2 ch (8 Ω/ohms)
analog input sensitivity	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +1, –3 dB (DIRECT mode)
analog distortion	0.008 % (20 Hz ~ 20 kHz) (DIRECT mode)
phono input sensitivity	2.5 mV
phono RIAA deviation	±1 dB (20 Hz to 20 kHz)
phono S/N	74 dB (A weighting, with 5 mV input)
phono rated output	150 mV / 7 V
phono distortion factor	0.03 % (1 kHz, 3 V)

Video Specifications

standard video input/output level	1 Vp-p, 75 Ω/ohms
standard video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
S-Video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
S-Video frequency response	5 Hz ~ 10 MHz — +1, –3 dB
color component video input/output level	Y (brightness) signal — 1 Vp-p, 75 Ω/ohms
color component video frequency response	DC ~ 100 MHz — +0, –3 dB

Tuner Specifications

receiving range	87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
usable sensitivity	1.0 µV (11.2 dBf) 18 µV
50 dB quieting sensitivity	MONO 1.6 µV (15.3 dBf)
S/N MONO	77 dB (IHF-A weighted)
total harmonic distortion MONO	0.15 % (1 kHz)
total harmonic distortion STEREO	0.3 % (1 kHz)

General Specifications

power supply	AC 230 V, 50 Hz
power consumption	450 W
maximum external dimensions	434 (W) x 171 (H) x 417 (D) mm
mass	12.8 kg

Remote Control Specifications

batteries	R6P/AA Type (two batteries)
external dimensions	55 (W) x 225 (H) x 34.5 (D) mm
mass	165 g (including batteries)
