Denon AVR-2808 Service Manual

10
AVR-2808

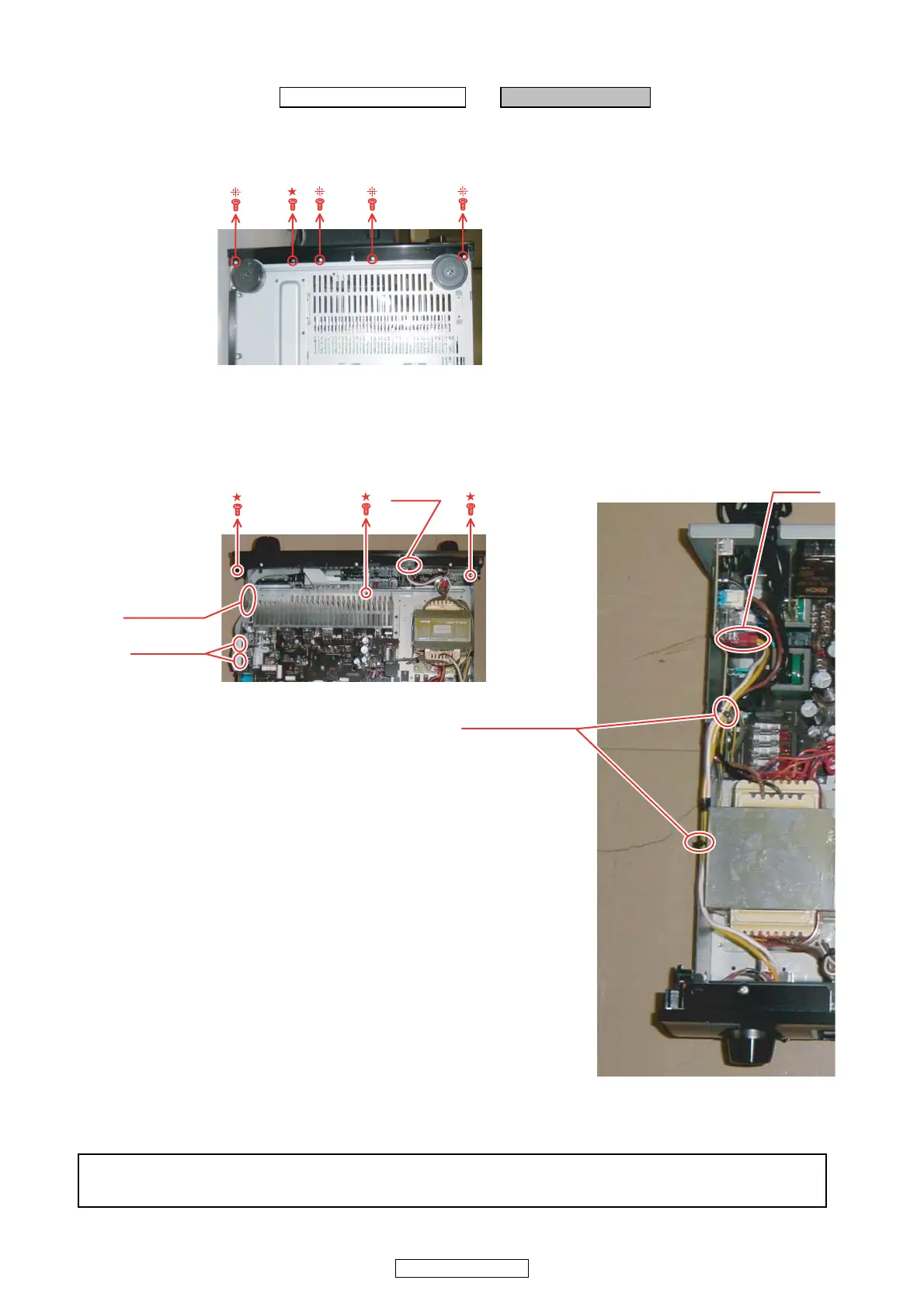

1. FRONT UNIT ASSY
(1) Remove the screws. ( ねじをはずす。）
(2) Disconnect the connector wires and remove the screws . ( コネクタワイヤーとねじをはずす。）
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT UNIT ASSY.
FRONTUNITASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
Proceeding (手順) : TOP COVER SUB ASSY → FRONT UNIT ASSY
Picture B
[ Bottom view ]
Cut
CP302
Wire clamp band
Picture C
Picture F
FFC cable
CP302
Cord holder
