13
AVR-2808

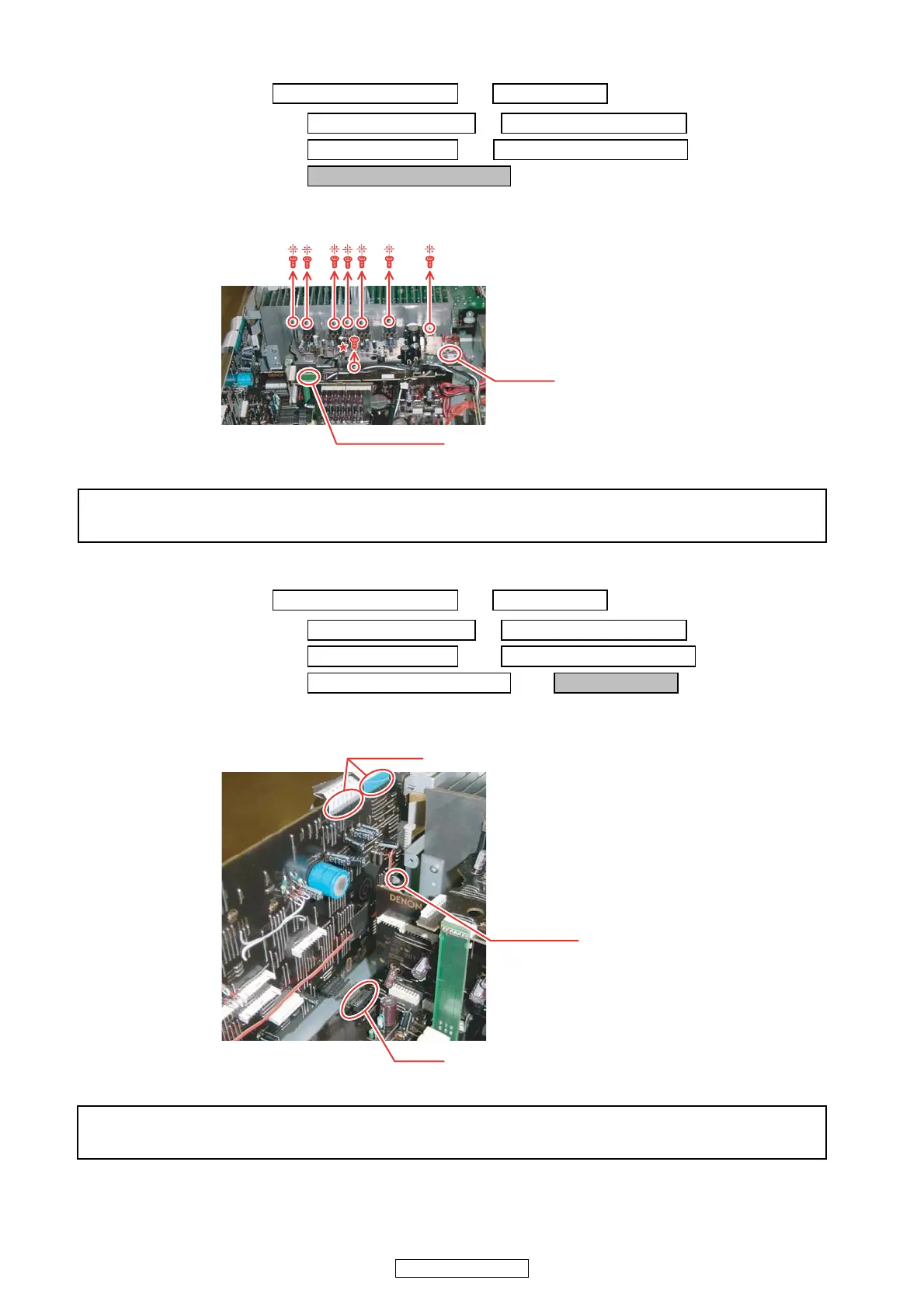

7. POWER REG. UNIT ASSY
(1) Disconnect the connecter wires and remove the screws. ( コネクタワイヤーとねじをはずす。
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in POWER REG. UNIT ASSY.
POWERREG.UNITASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
8. MAIN CPU UNIT
(1) Disconnect the FFC cables and remove the PWB holder. ( FFCケーブルと基板ホルダーをはずす。
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in MAIN CPU UNIT.
MAINCPUUNIT のはずしかたは "EXPLODEDVIEW" を参照してください。
Proceeding (手順) : TOP COVER SUB ASSY BACK PANEL
→
1.
DIGITAL UNIT ASSY
→
2-2.AUDIO UNIT ASSY
→
44.AM FM TUNER
3-4.REMOTE/IPOD UNIT
→
POWER REG. UNIT ASSY
Picture A
CX031
Board to board
Proceeding (手順) : TOP COVER SUB ASSY BACK PANEL
→
1.
DIGITAL UNIT ASSY
→
2-2.AUDIO UNIT ASSY
→
44.AM FM TUNER
3-4.REMOTE/IPOD UNIT
→
POWER REG. UNIT ASSY
MAIN CPU UNIT
Picture E
FFC cable
PWB holder
CX115
