Denon AVR-2808 Service Manual

18
AVR-2808

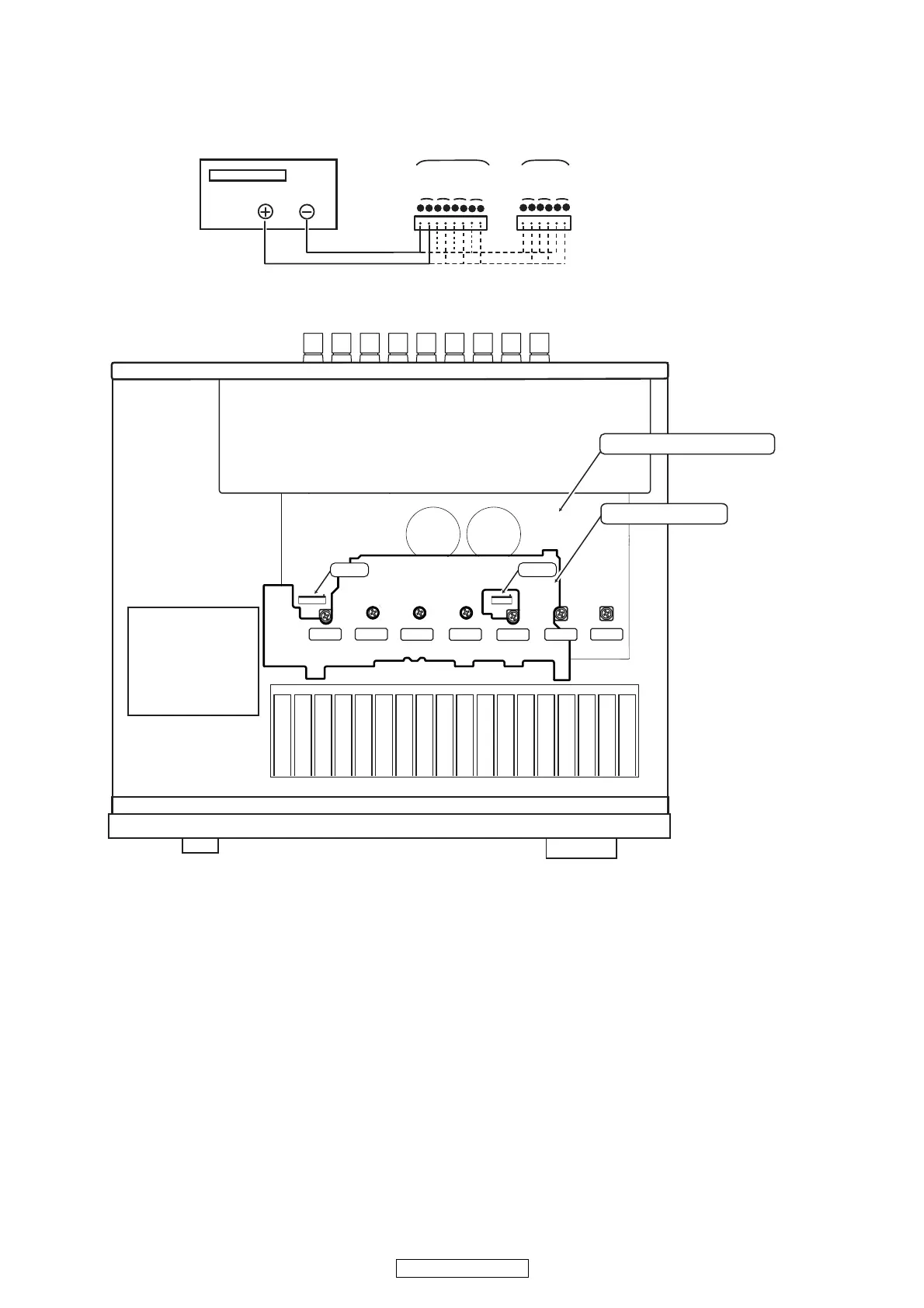

The adjustment volume and connection terminal of 1U-3854-
1 (POWER AMP Unit)P.W.B. under 1U-3841-1 (REG
Unit)P.W.B..
Insert an adjustment driver / connection terminal from an ad-
justment aperture of 1U-3841-1 (REG Unit)P.W.B..
SL ch FR ch
FL ch
SR ch
CX063
Cch
SBR ch
SBL ch
CX082
Audio Section
DC Voltmeter
VR406
SBR ch
SBL ch
VR403
FR ch
SR ch
VR401
VR405
SL ch
Cch
VR404
FL ch
VR407
VR402
CX063
CX082
1U-3854-1 POWER AMP Unit
1U-3841-1 REG Unit
1U-3854-1(POWERAMPUnit) 基板の調整ボリュームと接続
端子は 1U-3841-1(REGUnit) 基板の下に有ります。
1U-3841-1(REGUnit) 基板の調整孔から調整ﾄﾞﾗｲﾊﾞｰ / 接続端
子を挿入してください。
