Denon AVR-2809CI

14
AVR-2809CI/AVR-989/AVR-2809/AVC-2809

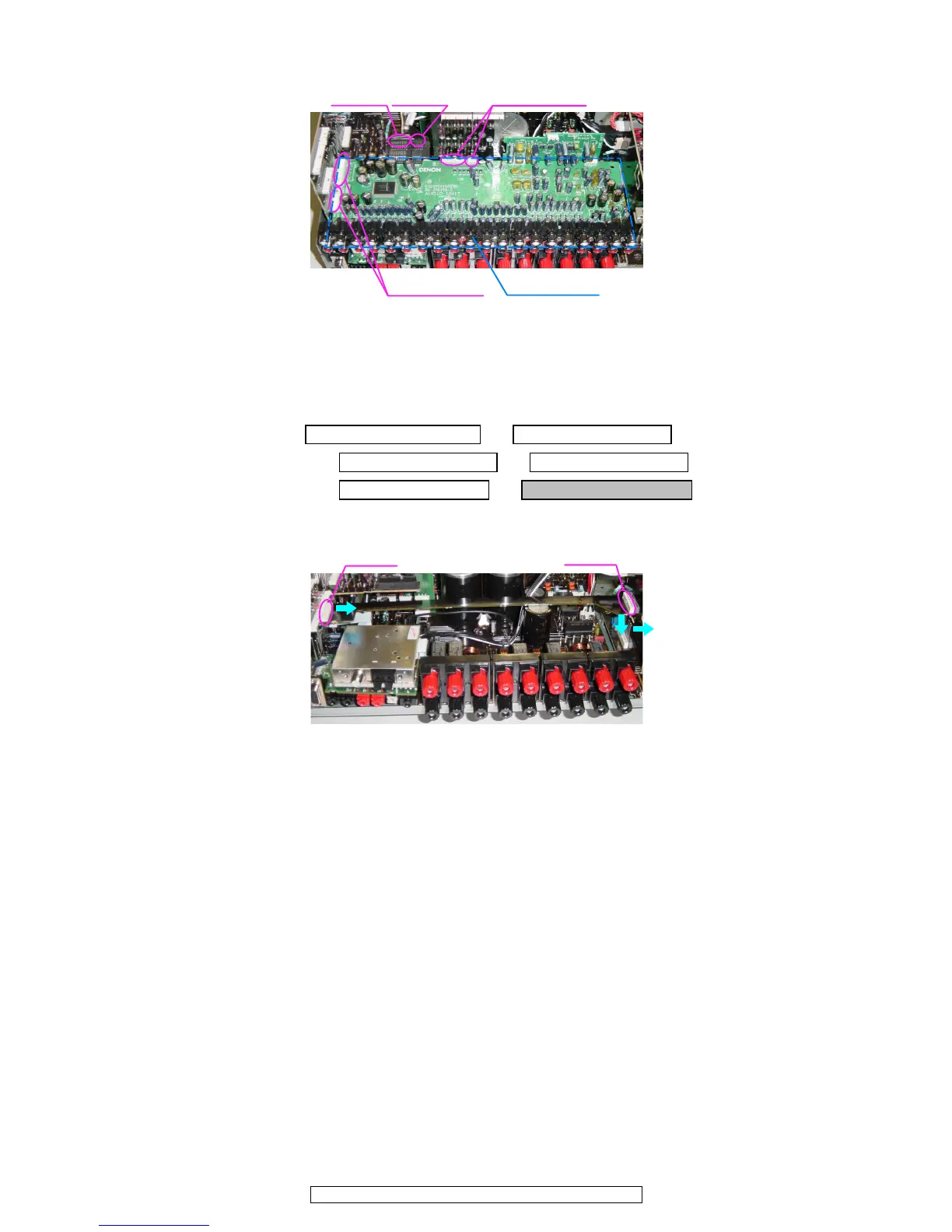

6. UCON CONNECT UNIT
(1) Disconnect the connector board.（コネクタボードをはずす。）
AUDIO UNIT
Board to board
CY135 CY079
Board to board
Top view
EC, E2, E1C, JP model
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
→ AUDIO UNIT ASSY → UCON CONNECT UNIT
Picture B
CX125
CX124
