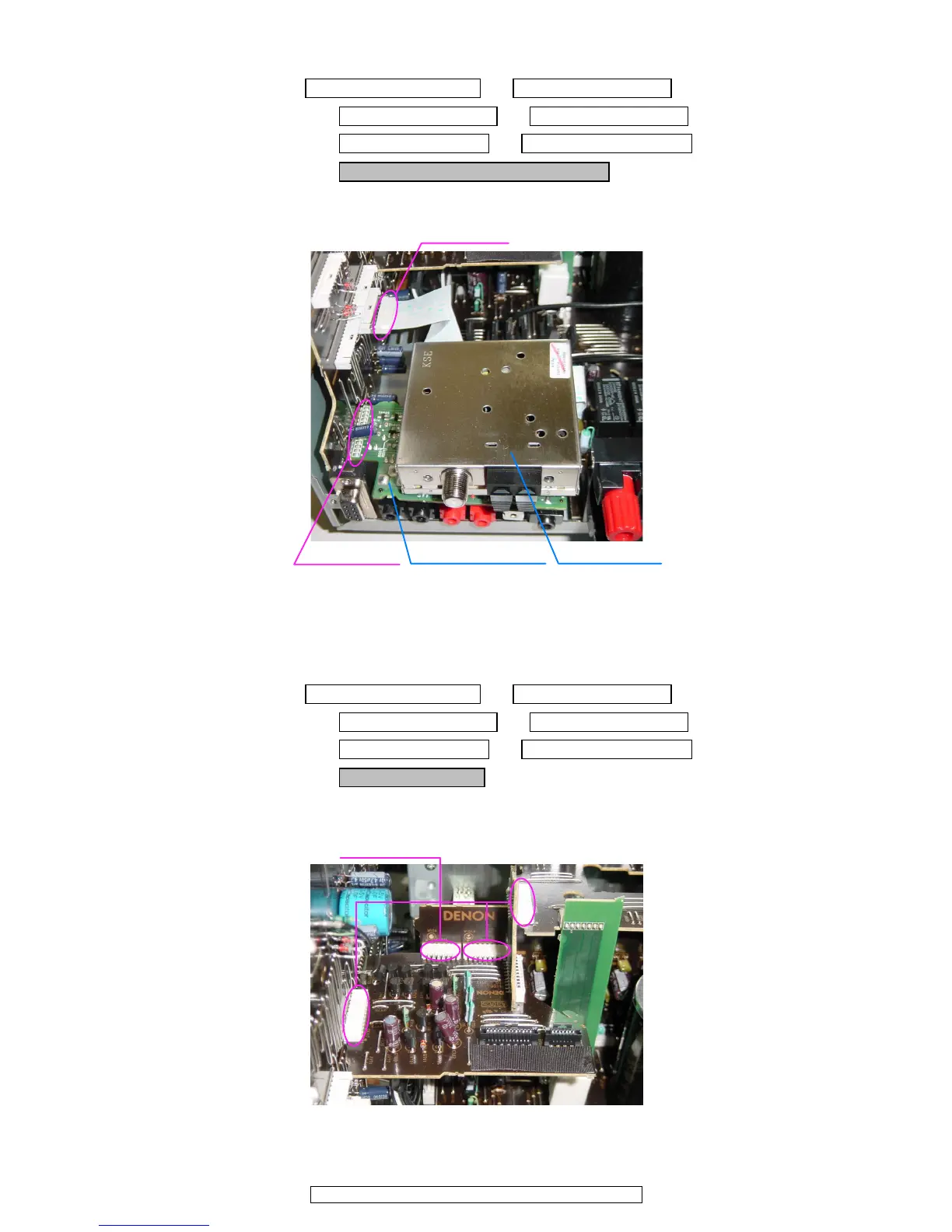

7. AM FM TUNER / REMOTE IPOD UNIT
(1) Disconnect the connector wire and connector board.（FFCケーブルとコネクタボードをはずす。）
8. AUDIO LIMIT UNIT
(1) Disconnect the connector boards.（コネクタボードをはずす。）
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
→ AUDIO UNIT ASSY → UCON CONNECT UNIT
→ AM FM TUNER / REMOTE IPOD UNIT
FFC CABLE
Picture B
Board to board
AM FM TUNERREMOTE IPOD UNIT
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
→ AUDIO UNIT ASSY → UCON CONNECT UNIT
→ AUDIO LIMIT UNIT
Top view
Board to board
