Denon AVR-2809CI

16
AVR-2809CI/AVR-989/AVR-2809/AVC-2809

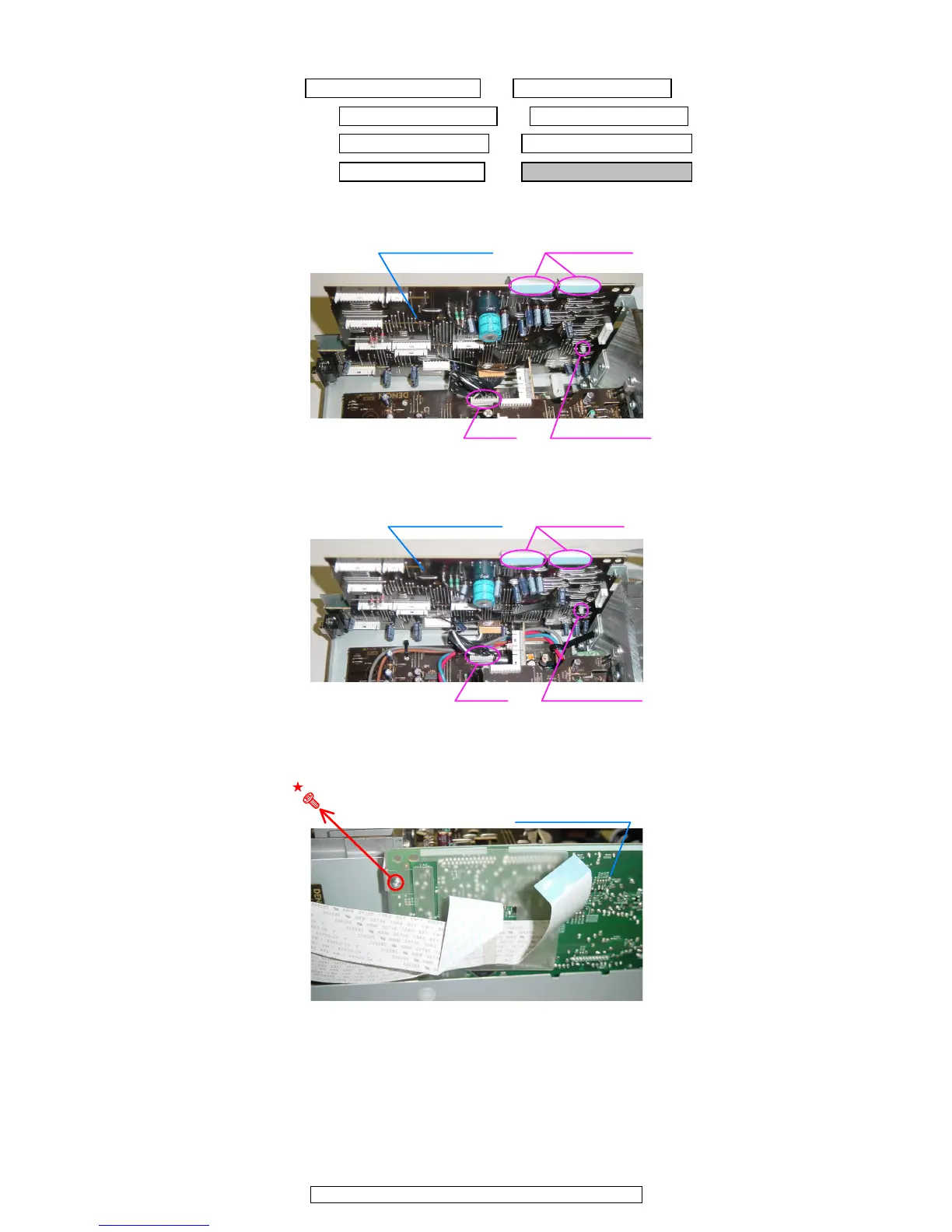

9. MAIN CPU UNIT ASSY
(1) Disconnect the connector wire and FFC cables. ( コネクタワイヤーと FFC ケーブルをはずす。)
(2) Remove the screw.（ねじをはずす。）
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
→ AUDIO UNIT ASSY → UCON CONNECT UNIT
→ AUDIO LIMIT UNIT → MAIN CPU UNIT ASSY
CX115
Picture E
PCB HOLDER
FFC CABLE
MAIN CPU UNIT
EU model
CX115
Picture E
PCB HOLDER
FFC CABLE
MAIN CPU UNIT
EC, E2, E1C, JP model
Picture C
MAIN CPU UNIT
