10. REG UNIT ASSY

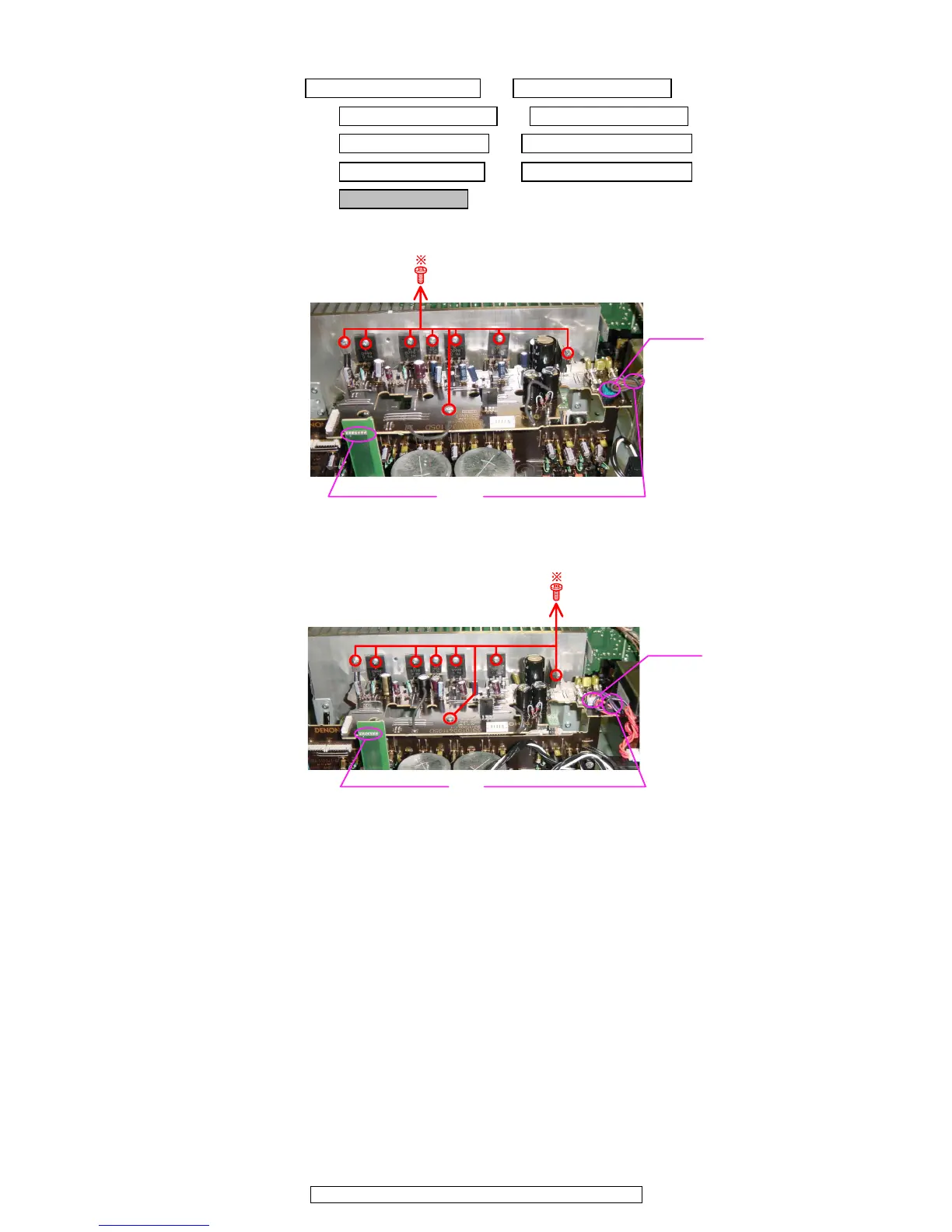

(1) Disconnect the connector wire and remove the screws. （コネクタワイヤーとねじをはずす。)
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
→ AUDIO UNIT ASSY → UCON CONNECT UNIT
→ AUDIO LIMIT UNIT → MAIN CPU UNIT ASSY
→ REG UNIT ASSY
CX031
Wire clamp band : LooseBoard to board
Picture B
EU model
CX031
Wire clamp band : LooseBoard to board
Picture B
EC, E2, E1C, JP model
