Denon AVR-2809CI

18
AVR-2809CI/AVR-989/AVR-2809/AVC-2809

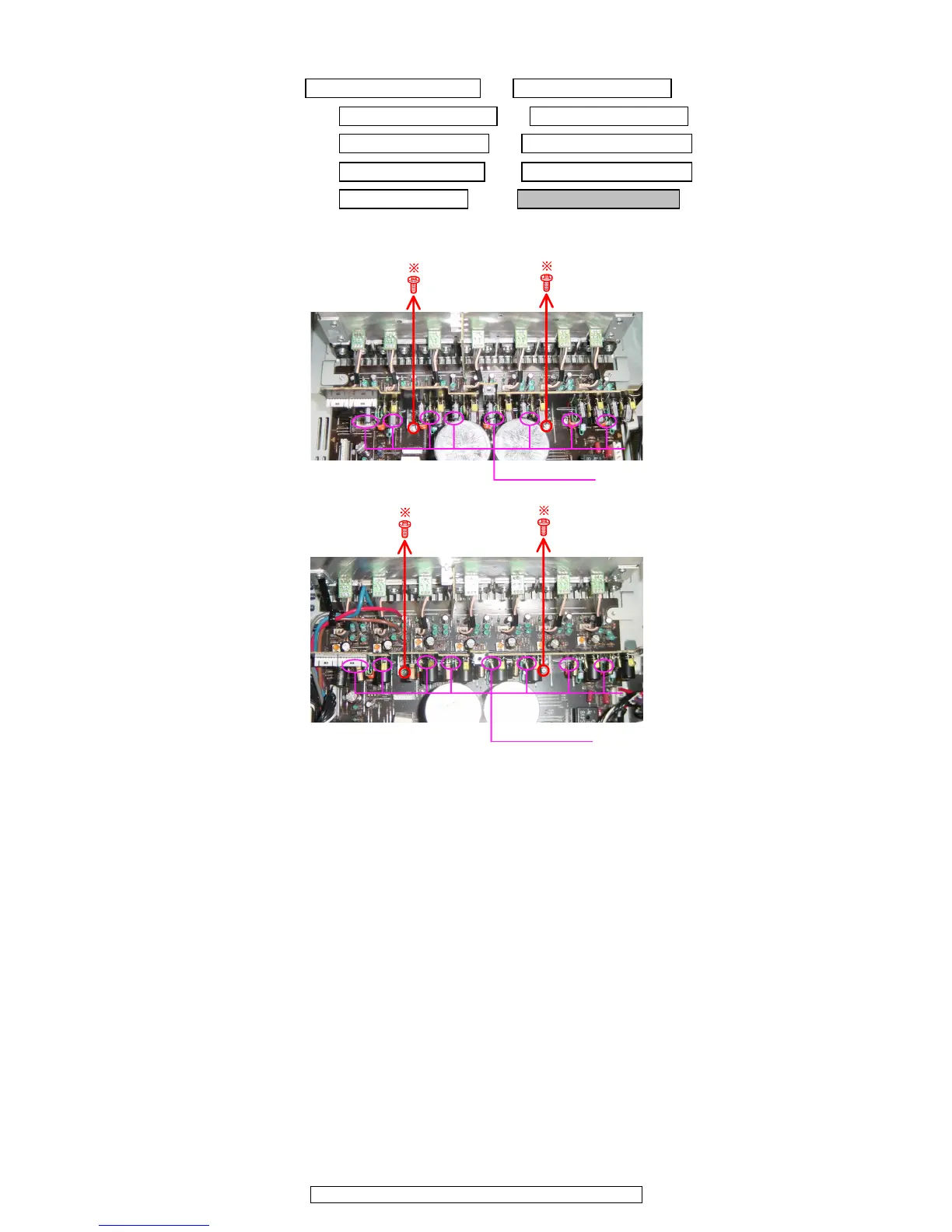

11. PRE AMP UNIT ASSY
(1) Remove the screws and disconnect the connector board.（ねじとコネクタボードをはずす。）
Proceeding (手順) : TOP COVER SUB ASSY → DIGITAL UNIT ASSY
→ BACK PANEL ASSY → A.VIDEO UNIT ASSY
→ AUDIO UNIT ASSY → UCON CONNECT UNIT
→ AUDIO LIMIT UNIT → MAIN CPU UNIT ASSY
→ REG UNIT ASSY → PRE AMP UNIT ASSY
Top view
Board to board
EU model
Top view
Board to board
EC, E2, E1C, JP model
