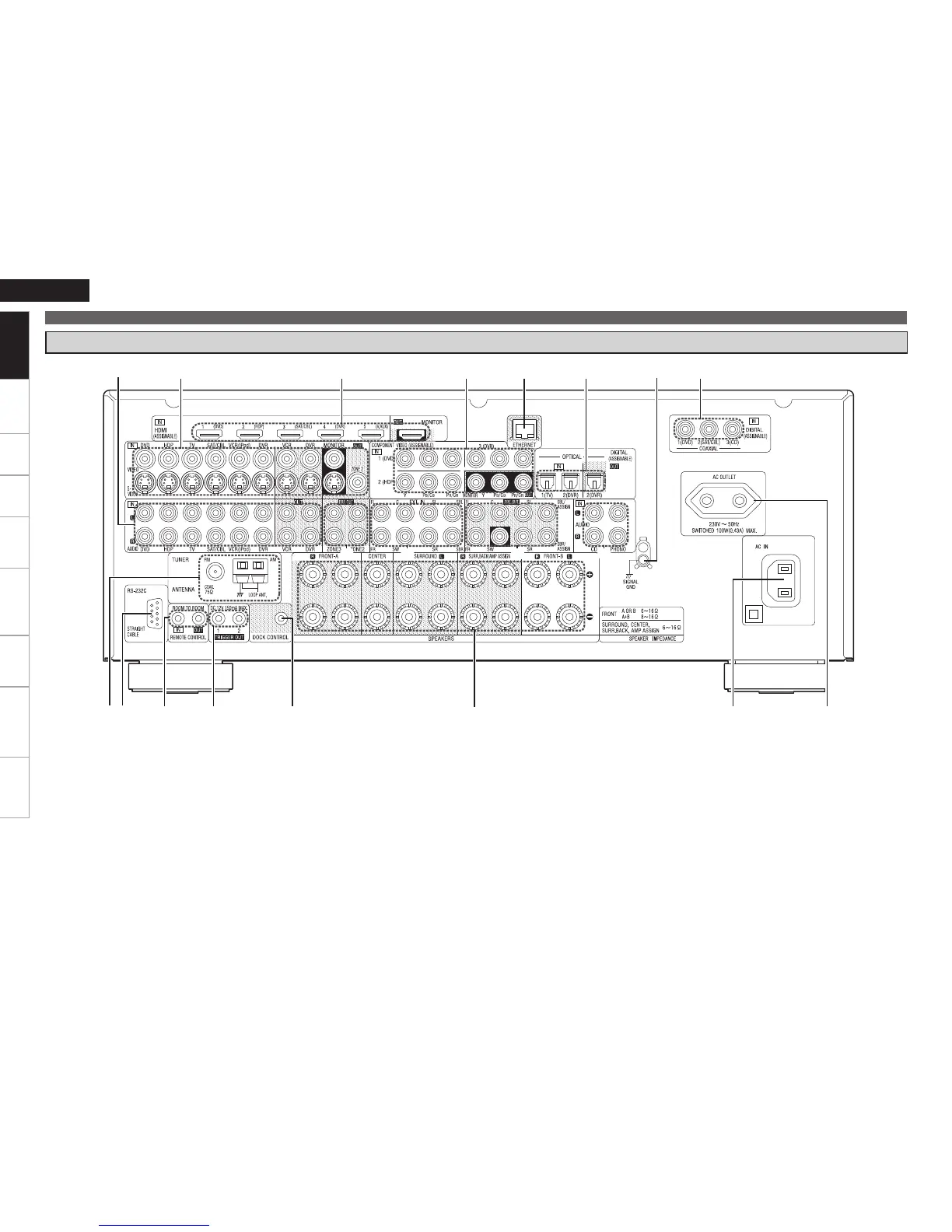

Part Names and Functions
q FM/AM antenna terminals ························ (19)
w RS-232C connector ····································· (21)
e REMOTE CONTROL jacks ··························(21)
r TRIGGER OUT jacks ···································(21)
t DOCK CONTROL jack ································· (16)
y Speaker terminals ······································ (13)
u AC inlet ························································ (23)
i AC OUTLET ·················································(23)
o Digital audio connectors ···················· (16 ~ 19)
Q0 SIGNAL GND terminal ······························· (17)
Q1 ETHERNET connector ································ (22)
Q2 COMPONENT VIDEO connectors ···(15, 16, 18)
Q3 HDMI connectors ········································ (14)
Q4 VIDEO / S-VIDEO connectors ············ (15 ~ 19)
Q5 Analog audio connectors ··················· (16 ~ 19)
Q6 PRE OUT connectors ···························· (21, 81)
Q7 EXT. IN connectors ····································· (20)
