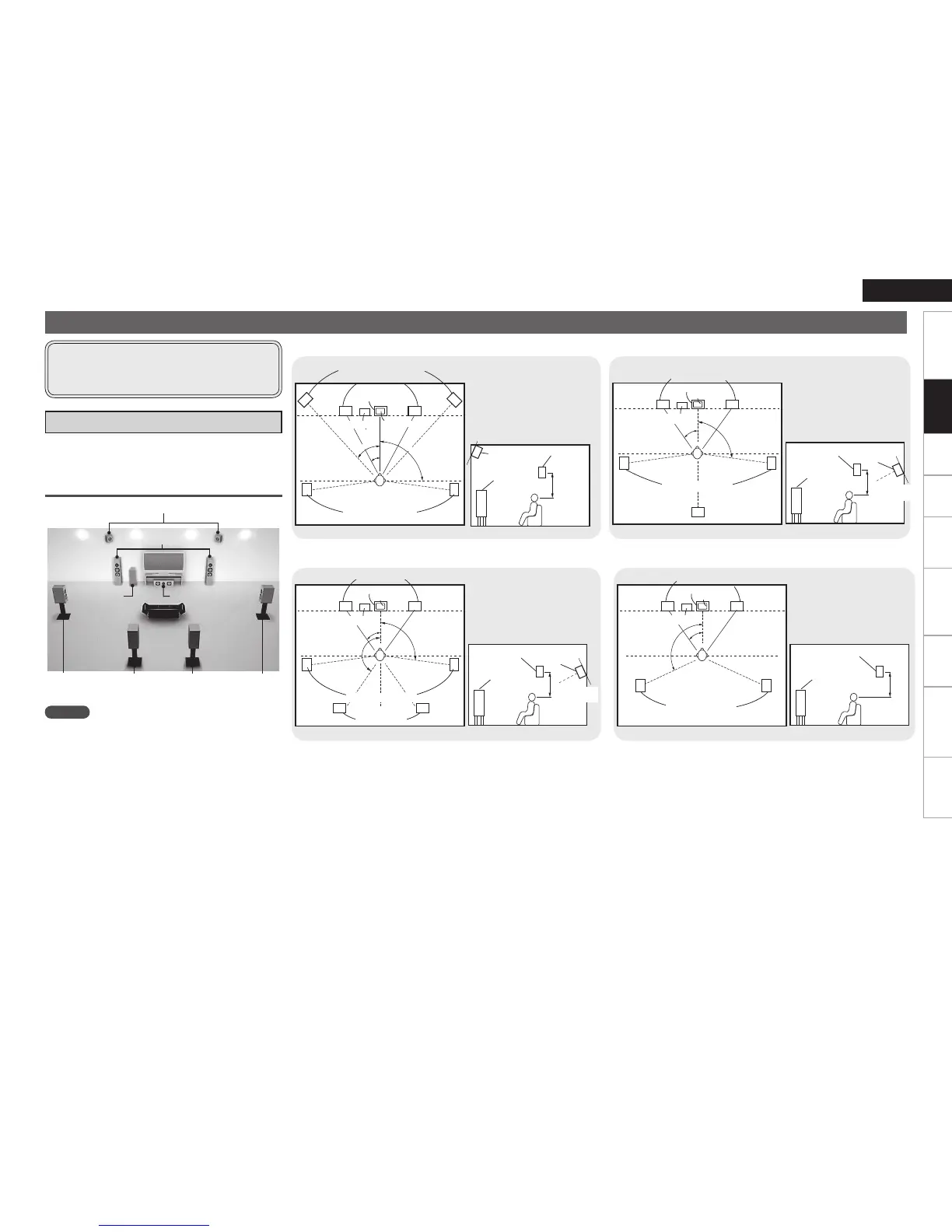

Installing / Setting the Speakers
• The AVR-3310 is compatible with various types of
surround playback.
• Decide on the surround modes to be played on the
AVR-3310 before making connections and settings.
Surround back speakers
Center speaker
Front speakers
Subwoofer
Front Height speakers
Surround
speaker
Surround
speaker
NOTE
It is not possible to use the surround back speakers and
front height speakers simultaneously.
a Determine the Speaker Layout
Below we introduce examples of speaker layouts. Refer to
these to arrange your speakers according to their type and
how you want to use them.
Installing All the Speakers
z
2
z
1
z3
Front speakers
Subwoofer
Monitor
Surround speakers
Center speaker
Front height speakers
G
As seen from above
H
z1: 22˚ ~ 30˚
z2: 22˚ ~ 45˚
z3: 90˚ ~ 110˚
Surround
speaker
Front height
speaker
Point slightly
downwards
60 to 90 cm
G
As seen from the side
H
Front speaker
When 7.1ch (Front Height Speaker) Connectedn
Monitor
Center speaker
Subwoofer
G
As seen from above
H
z1: 22 ~ 30˚
z2: 90˚ ~ 110˚
z3: 135˚ ~ 150˚
Surround back
speaker
G
As seen from the side
H
Surround speakers
Surround
speaker
Front
speaker
60 to 90 cm
Point slightly
downwards
Surround back
speakers
Front speakers
z
1
z
2
Front speakers
G
As seen from above
H G
As seen from the side
H
Monitor
Center speaker
z1: 22 ~ 30˚
z2: 90˚ ~ 110˚
Subwoofer
Surround speakers
Surround back
speaker
Front
speaker
Surround
speaker
Surround back
speaker
Point slightly
downwards
60 to 90 cm
z1
z2
Surround speakers
Front speakers
Monitor
Center speaker
Subwoofer
z1: 22 ~ 30˚
z2: 120˚
Front
speaker
Surround
speaker
60 to 90 cm
G
As seen from above
H G
As seen from the side
H
When 7.1ch (Surround Back Speaker) Connectedn
When 6.1ch (Surround Back Speaker) Connectedn
When 5.1ch Connectedn
Connections

Denon AVR-3310 Specifications

General

Equalizer	Yes
Product color	Black
Frequency range	10 - 100000 Hz
Total Harmonic Distortion (THD)	0.05 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Connectivity technology	Wired
Headphone connectivity	3.5 mm
S-Video outputs quantity	2
Digital audio optical out	1
S-Video inputs quantity	7
Digital audio optical in	3
Dimensions (WxDxH)	434 x 414 x 171 mm
HDMI ports quantity	5
Power consumption (standby)	1 W
Power consumption (typical)	780 W

Weight and Dimensions

Weight	12900 g
