68

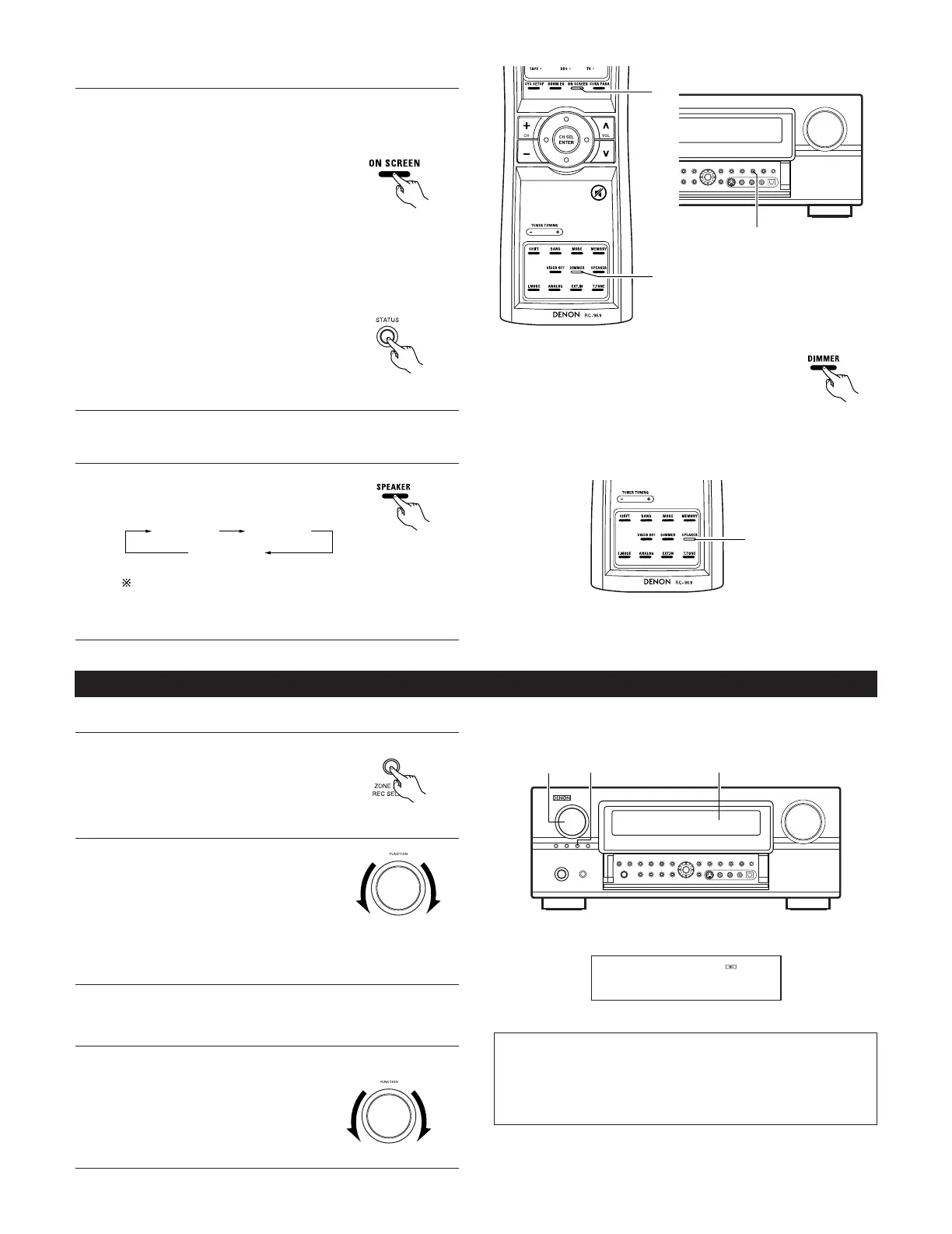

[5] Checking the currently playing program source, etc.
1
On screen display
• Each time an operation is performed,
a description of that operation
appears on the display connected to
the unit’s VIDEO MONITOR OUT
jack. Also, the unit’s operating status
can be checked during playback by
pressing the remote control unit’s ON
SCREEN button.
Such information as the position of
the input selector and the surround
parameter settings is output in
sequence.
Front panel display
• Descriptions of the unit’s operations
are also displayed on the front panel
display. In addition, the display can be
switched to check the unit’s
operating status while playing a
source by pressing the STATUS
button.
(Main unit)
Using the dimmer function
• Use this to change the brightness of the display.
The display brightness changes in four steps
(bright, medium, dim and off) by pressing the
main unit’s DIMMER button repeatedly.
(Remote control unit)
(Remote control unit)
[6] Switching the surround speakers
1
The surround speakers switch as
shown below each time the SPEAKER
button is pressed.
SURROUND A SURROUND B
SURROUND A+B
This operation is possible when the setting for using both
surround speakers A and B is made at “Speaker Config” in
the System Setup Menu.
(Remote control unit)
Multi-source recording/playback
Playing one source while recording another (REC OUT mode)
1
Press the ZONE2/3/REC button until “ZONE2 SOURCE”
appears on the display.
2
With “ZONE2 SOURCE”displayed, turn
the FUNCTION knob until “RECOUT
SOURCE” appears on the display.
With “RECOUT SOURCE” displayed,
turn the FUNCTION knob to select the
source you wish to record.
• When the FUNCTION goes around, it turn to the “REC”
indicator and the indicator of the selected source light.
3
Set the recording mode.
• For operating instructions, refer to the manual of the
component on which you want to record.
4
To cancel, turn the function knob.
NOTES:
• Recording sources other than digital inputs selected in the REC
OUT mode are also outputted from the Zone2 preout jacks.
• Digital signals are not outputted from the analog REC OUT jacks.
(Main unit)
(Main unit)
(Main unit)
