[2] Multi-zone playback using the ZONE2 PREOUT and MULTI ZONE3 terminals
2 When using the SURR.BACK/MULTI ZONE amplifier as the ZONE2/ZONE3.
• ZONE2/ZONE3 preout and speaker out can be used when “ZONE3” is selected at System Setup Menu “Power Amp Assign”. In this case,
Surround Back PREOUT and speaker out cannot be used for MAIN ZONE.
• The AVR-3805 is equipped with preout terminals for which the volume is adjustable (ZONE 2, MULTI ZONE) and speaker out terminals for which
the volume is adjustable (MULTI ZONE) and fixed output level as the ZONE3 output terminals and composite video output terminals as the
ZONE2 output terminals.
This unit
DVD player
Input
RC-616
Monitor
Monitor
MAIN ZONE 5.1-channel systems
ZONE 2 ZONE 3
ZONE 2
AUDIO OUT (VARIABLE OUT)
MULTI ZONE
SPEAKER OUT
ZONE 2
VIDEO OUT
RC-617
Power Amplifier or
Premain Amplifier
RC-617
SYSTEM REMOTE
CONTROL UNIT RC-969
PROGRAMMABLE
REMOTE CONTROL UNIT
PROGRAMMABLE
REMOTE CONTROL UNIT
This unit
DVD player
Input
RC-616
Monitor
Monitor
MAIN ZONE 5.1-channel systems
ZONE 2 ZONE 3
ZONE 3
AUDIO OUT (FIXED OUT)
MULTI ZONE
SPEAKER OUT
ZONE 2 VIDEO OUT
RC-617
Premain Amplifier
RC-617
SYSTEM REMOTE
CONTROL UNIT RC-969
PROGRAMMABLE
REMOTE CONTROL UNIT
PROGRAMMABLE
REMOTE CONTROL UNIT
C
FL FR
CH SEL
ENTER
SL
SW
SR
B
B
C
FL FR
CH SEL
ENTER
SL
SW
SR
B
B
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE AUDIO signal cable
SPEAKER cable
*
Refer to CONNECTIONS on pages 7 to 16.
ZONE2 VIDEO signal cable

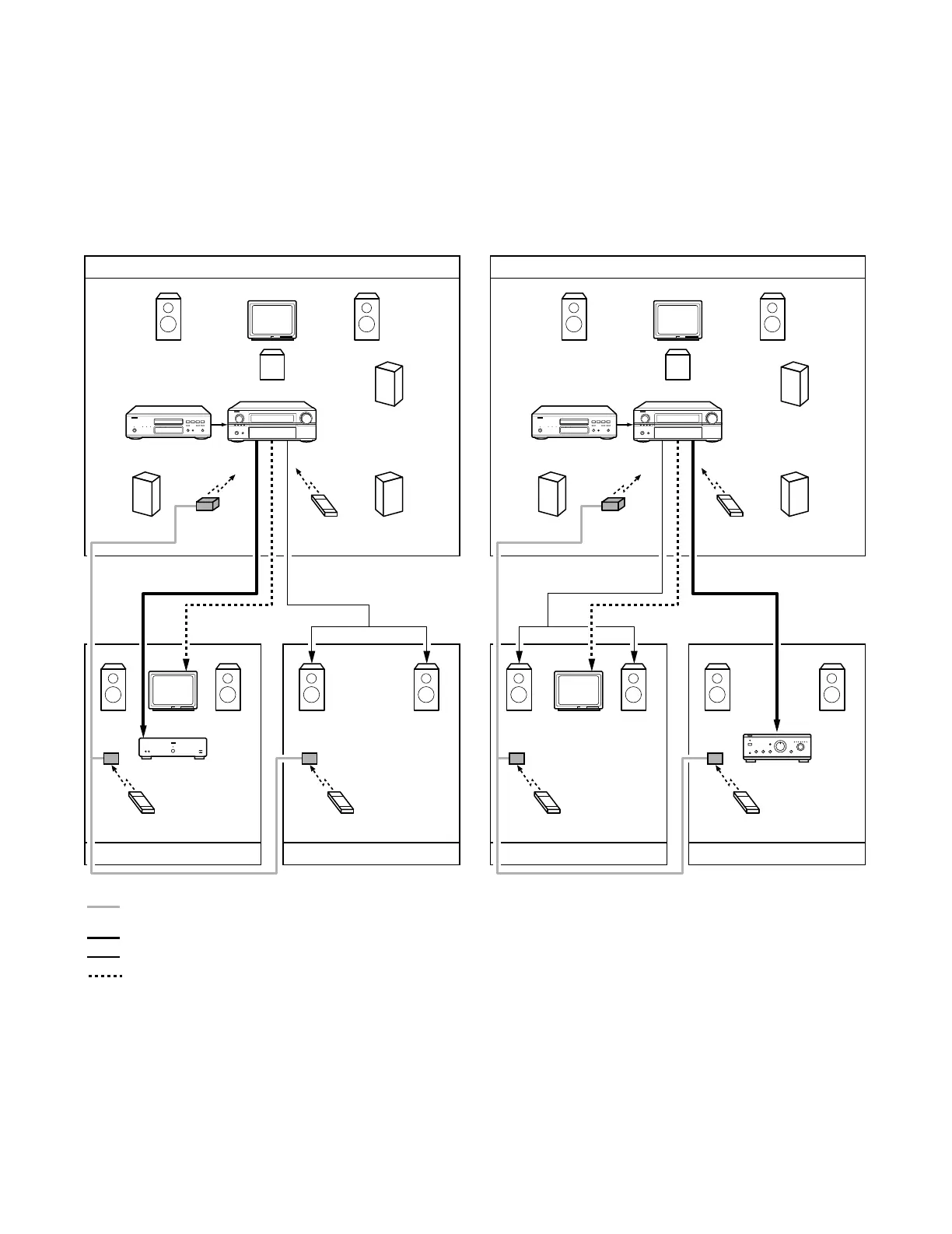

(1) System configuration and connections example.
Using external amplifier as the ZONE2 and using this unit’s
internal amplifier as the ZONE3.
(2) System configuration and connections example.
Using this unit’s internal amplifier as the ZONE2 and using
external amplifier as the ZONE3.

Denon AVR-3805 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Speaker selector	A / B
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	120 W
AC input voltage	120 V
AC input frequency	60 Hz
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
HDMI in	0
Audio (L/R) in	11
Remote control in	1
Composite video in	7
Digital audio coaxial in	2
Digital audio optical in	5
Component video (YPbPr/YCbCr) in	3
AirPlay	No
Display	-
Product color	Black
Audio decoders	DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	Not supported
Speakers connectivity type	RCA

Weight and Dimensions

Depth	429 mm
Width	434 mm
Height	171 mm
Weight	17000 g
