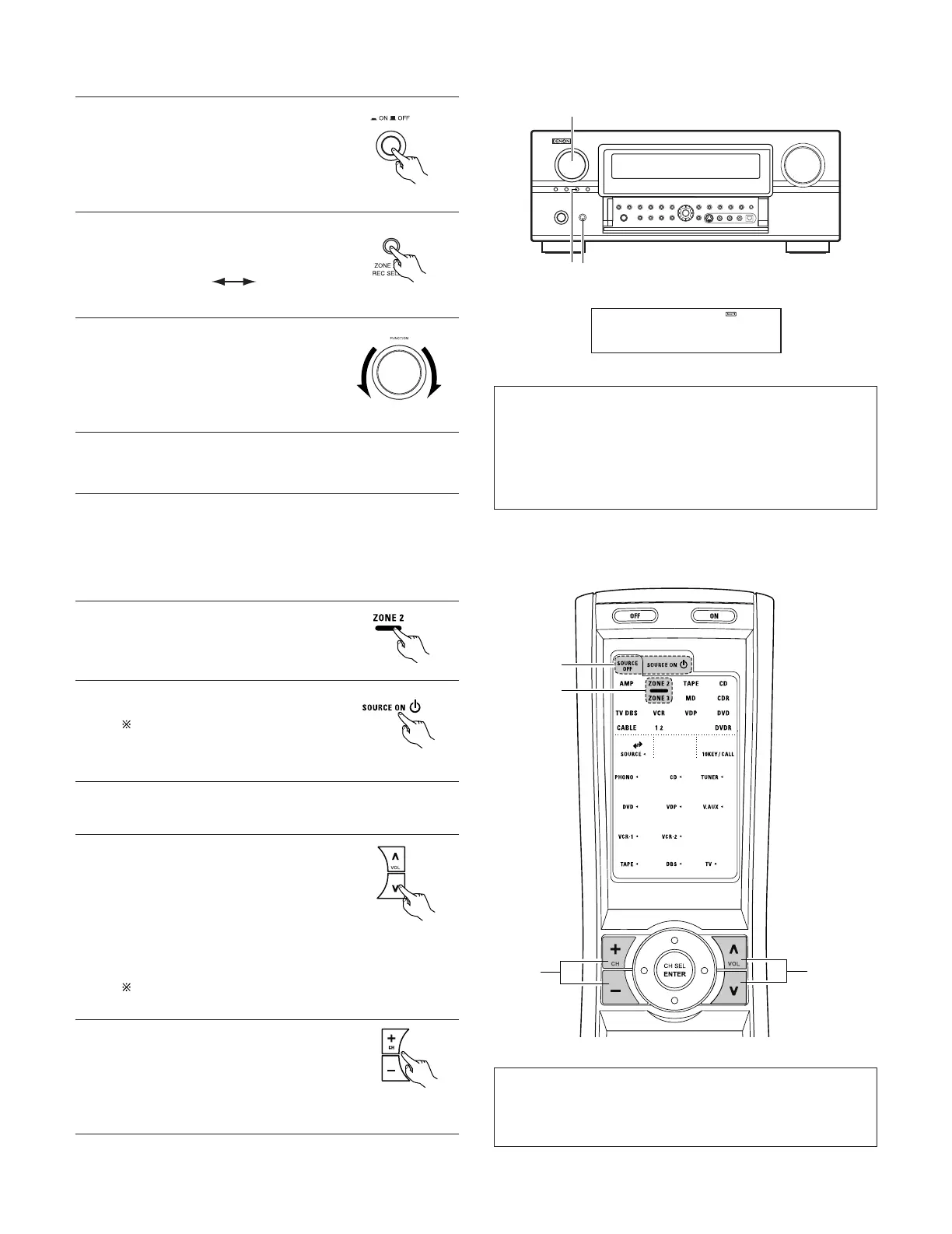

[1] Outputting a program source to an amplifier, etc., in a different room (ZONE2, ZONE3 mode)
1
Press the “ON” button.
3
With “ZONE2 SOURCE” displayed, turn
the FUNCTION knob and select the
source you wish to output.
• The display switches the selected
source.
4
Start playing the source to be output.
• For operating instructions, refer to the manuals of the
respective components.
NOTES:
• The signals of the source selected in the ZONE2 mode are also
output from the VCR-1, VCR-2 and CDR/TAPE recording output
jacks.
• Digital signals are not output from the ZONE3, audio (FIXED-
OUT) output jacks and ZONE2 audio output jacks.
• Refer to page 69, 70 about the MULTI ZONE connections.
(Main unit)
(Main unit)
2
Press the ZONE2/3/REC button.
The display switches as follows each
time the button is pressed.
(Main unit)
2
Press the “SOURCE ON” button.
To turn off the ZONE2 mode, press
the ZONE2 “SOURCE OFF” button.
(Remote control unit)
3
Press the input source button
• The ZONE2 source switches directly.
4
The output level of the ZONE2 OUT
terminals can be controlled using the
VOLUME + and - buttons on the remote
control unit.
The output level of ZONE2 OUT can be
controlled only if ZONE2 vol. level is set
“Variable” at Zone2 Control in System
Setup Menu. (see page 45,46)
(Remote control unit)
DEFAULT SETTING (ZONE2 VOLUME LEVEL) :
- - - dB (MINIMUM)
5
When the ZONE2 SOURCE function is
set to TUNER, the preset channel can
be selected using the CHANNEL + and
- buttons on the remote control unit.
(Remote control unit)
[2] Remote control unit operations during multi-source playback (selecting the input source)
1
Select “ZONE2” using the ZONE2/ZONE3
button.
(Remote control unit)
This operation is not possible in the REC OUT mode.
NOTE:
• The main zone output can be turn on and off “SOURCE
ON/OFF”button (AMP mode)
• ZONE3 can also be set with a method similar to the above.
• ZONE 3 can also be set with a method similar to the above.
