Connecting Other Sources

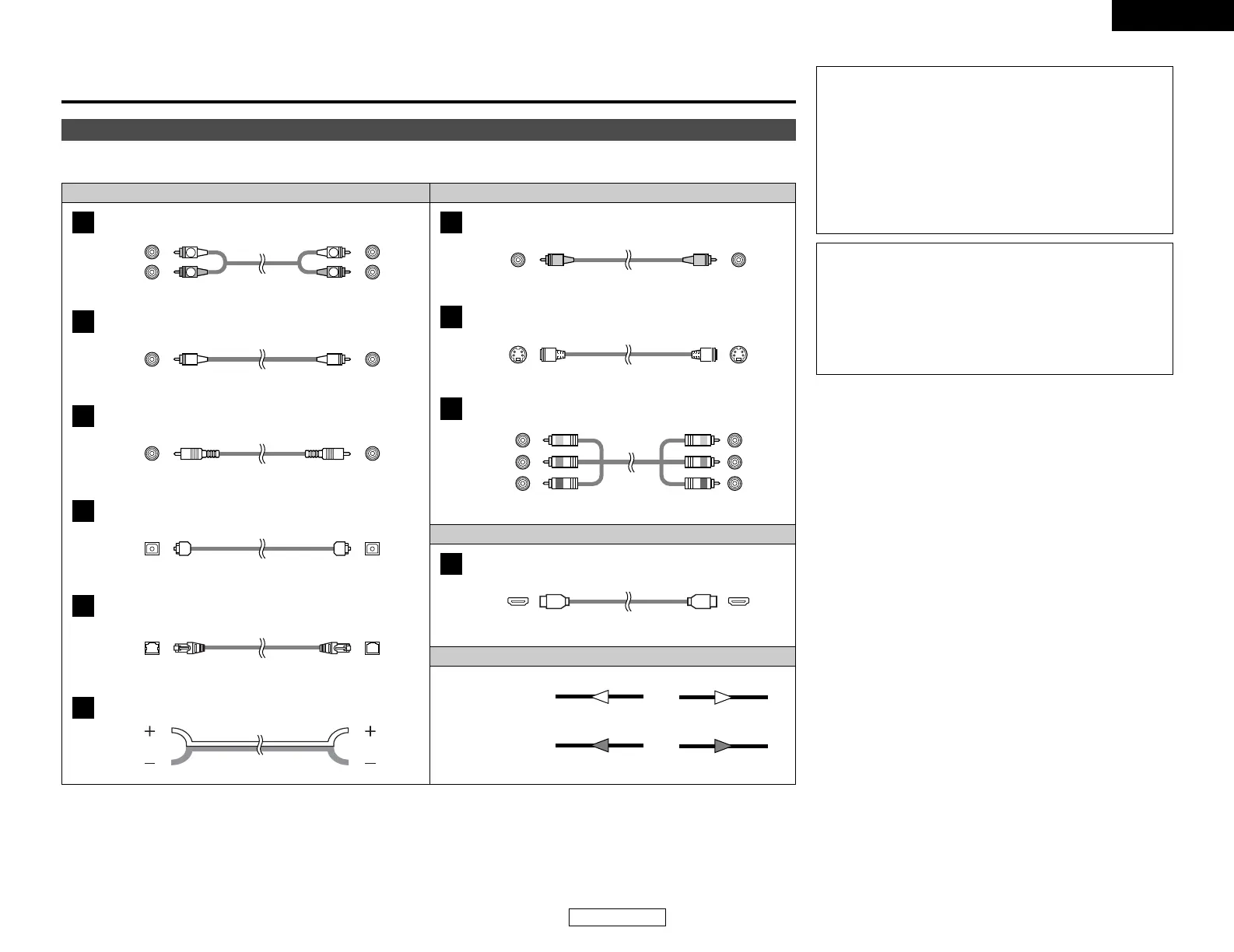

Cable indications
Signal direction
Audio and Video cable
The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).
Video cableAudio cable
NOTE:
• Do not plug in the power supply cord until all connections
have been completed.
• When making connections, also refer to the operating
instructions of the other components.
• Be sure to connect the left and right channels properly (left
with left, right with right).
• Note that binding pin-plug cables together with power
supply cords or placing them near a power transformer will
result in hum or other noise.
NOTE:
• Connecting a LD (laser disc) player with a Dolby Digital
RF Output.
The AVR-3806 does not have a DD RF demodulator function.
Therefore, you need to use a commercially available
outboard DD RF demodulator and connect its digital output
to one of the AVR-3806 available digital inputs. Refer to the
demodulator’s owner’s manual for further information.
Analog terminal (Stereo)
A
(Orange)
Pin-plug cable
Analog terminal (Monaural, for subwoofer)
B
Pin-plug cable
Digital terminal (Coaxial)
C
Coaxial cable (75 Ω/ohm pin-plug cable)
(Yellow)
Digital terminal (Optical)
D
Optical cable (Optical fiber cable)
DENON LINK terminal
E
DENON LINK cable
Speaker terminal
F
Speaker cable
Video terminal
G
HDMI terminal
J
HDMI cable
Video cable (75 Ω/ohms video pin-plug cable)
S-Video terminal
H
S-Video cable
Audio signal
Video signal
(White)
(Red)
Component video terminal
I
Component video cable
(Y)
(PB/CB)
(P
R/CR)
(Green)
(Blue)
(Red)
IN OUT OUT IN
IN OUT OUT IN
Connecting Other Sources
ENGLISH
ENGLISH
To Next Page
