Denon AVR-3806

18
Connecting Other Sources Connecting Other Sources

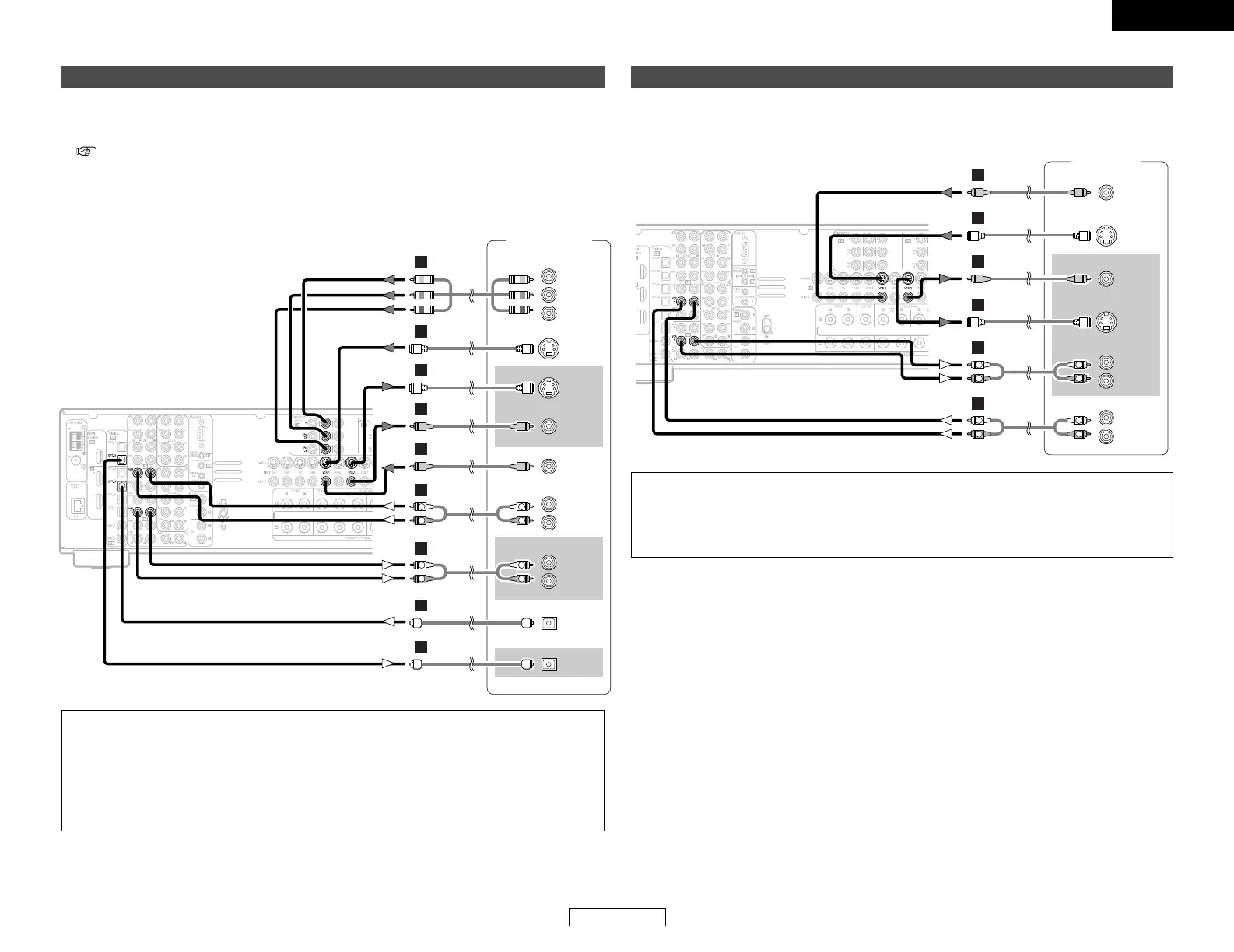

Connecting a DVD recorder
DVD recorder
S VIDEO
OUT
S VIDEO
IN
R
L
AUDIO IN
R
L
AUDIO OUT
VIDEO
OUT
VIDEO
IN
OPTICAL
IN
OPTICAL
OUT
R
L
R
L
G
G
H
H
A
R
L
R
L
A
D
D
COMPONENT VIDEO OUT
Y
P
B
PR
I
• For best picture quality choose the component video connection to your DVD recorder. S-Video
and composite video outputs are also provided. If you choose to use the component video
connection, it needs to be assigned. For more information about Component Input Assignment
( page 65).
• If you wish to perform analog dubbing from a digital sources, such as a DVD recorder to an analog
recorder such as a cassette deck, you will needs connect the analog inputs and outputs as shown
below, in addition to the digital audio connections.
NOTE:
• When recording to a DVD recorder, it is necessary that the type of cable used with the
playback source equipment be the same type that is connected to the AVR-3806 VCR-1 (to 2)
OUTPUT terminal.
Example: VCR-1 IN → S-Video cable : VCR-1 OUT → S-Video cable
VCR-1 IN → Video cable : VCR-1 OUT → Video cable
• Do not connect the output of the component connected to the OPTICAL 3 OUT terminal on
the AVR-3806’s rear panel to any terminal other than the OPTICAL 3 IN terminal.
Connecting a VCR
Video deck
S VIDEO
IN
R
L
AUDIO IN
R
L
AUDIO OUT
VIDEO
IN
S VIDEO
OUT
VIDEO
OUT
R
L
R
L
G
H
G
H
A
R
L
R
L
A
There are two sets of video deck (VCR) terminals, so two video decks can be connected for
simultaneous recording or video copying.
NOTE:
•When recording to a VCR, it is necessary that the type of cable used with the playback source
equipment be the same type that is connected to the AVR-3806 VCR-1 (to 2) OUTPUT terminal.
Example: VCR-2 IN → S-Video cable : VCR-2 OUT → S-Video cable
VCR-2 IN → Video cable : VCR-2 OUT → Video cable
