Denon AVR-391 Owner's Manual

25
ENGLISH
Basic versionSimple version InformationAdvanced version
When 2.1ch installed
FL FR
SW
Listening position
FL Front speaker (L) SL Surround speaker (L)
FR Front speaker (R) SR Surround speaker (R)
C Center speaker SBL Surround back speaker (L)
SW Subwoofer SBR Surround back speaker (R)
Procedure for speaker settings
Install
Connect (vpage26)
Set up speakers (vpage6)
Install
Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Surround back
speaker
• Point slightly
downwards
Front
speaker
When 7.1ch (Surround back speaker) installed
SBL SBR
C
SL
SR
FL FR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚

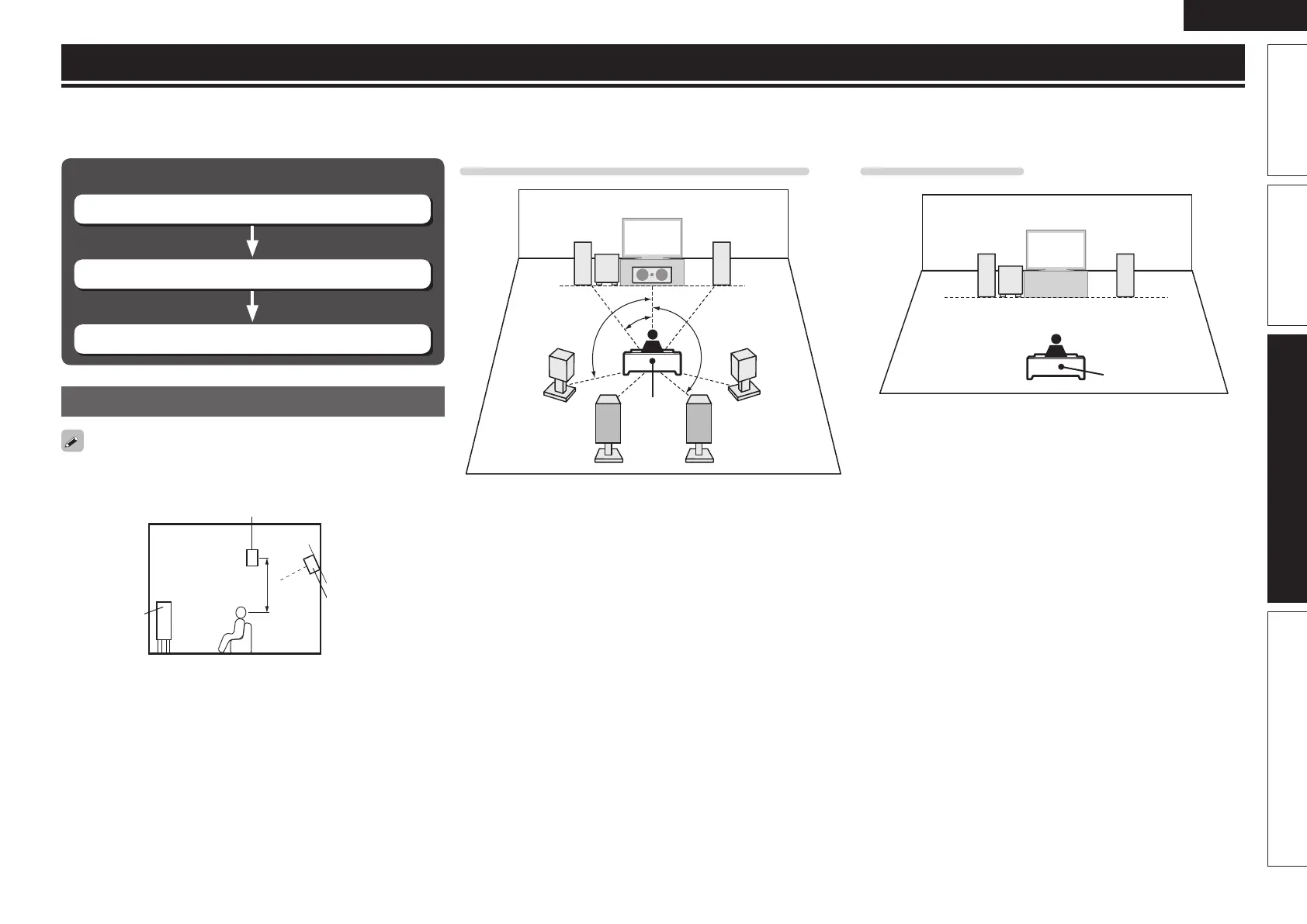

Speaker installation/connection (Other than 5.1-channel)
Here we describe the installation and connection methods for speakers other than 5.1-channel speakers. The speaker setting method is the same as “Simple
version (Simple setup guide)” (vpage3).
For the installation, connection and setup methods for 5.1-channel speakers, see “Simple version (Simple setup guide)” (vpage3).
