Denon AVR-4310


Connections Settings Playback Remote ControlMulti-zone Information Troubleshooting Specifications
ENGLISH
te y u i o
Q2Q3 Q0Q1
q rw
Q4Q5Q6Q7 Q2
Q8
Q9
Q8 Q7

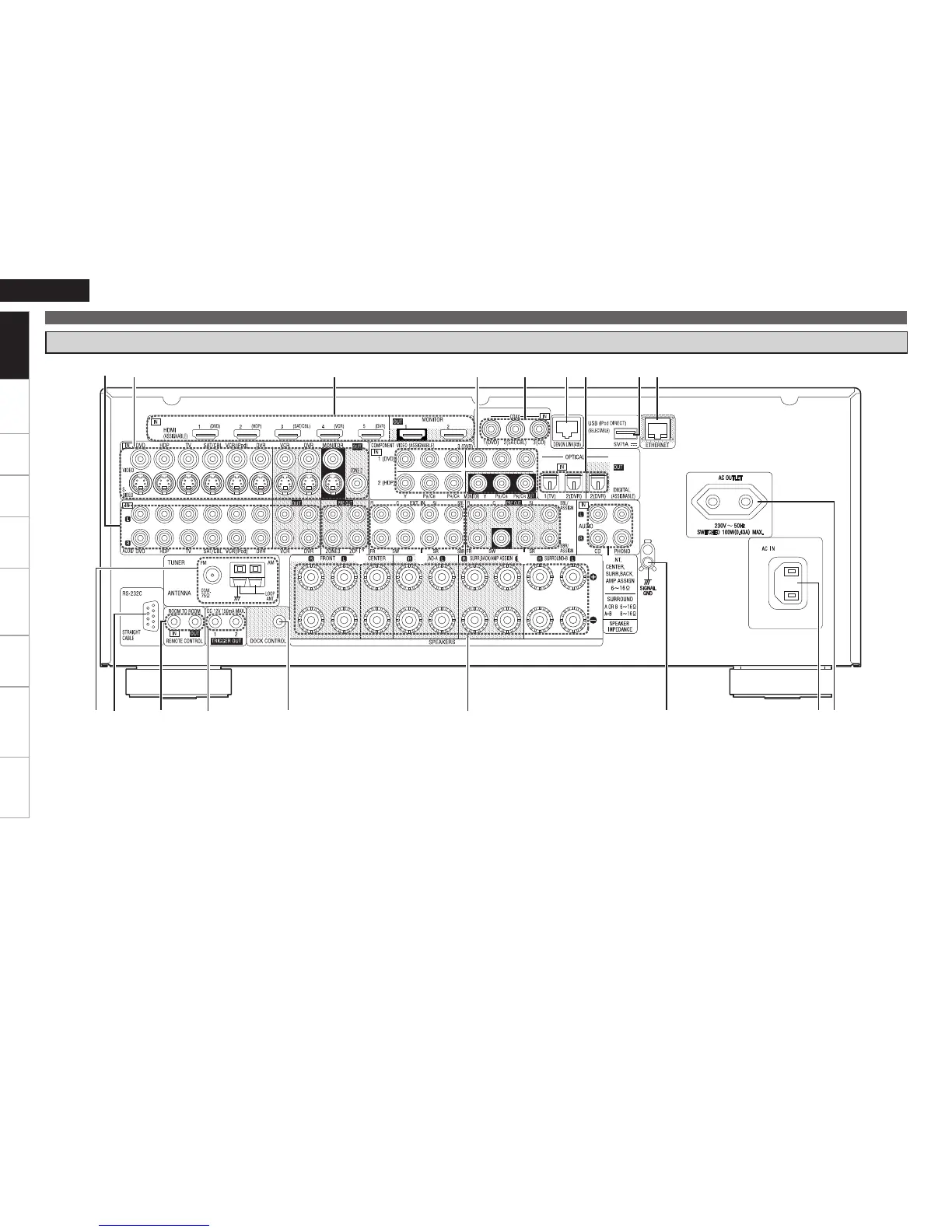

Part Names and Functions
q FM/AM antenna terminals ·················· (18, 19)
w RS-232C connector ····································· (21)
e REMOTE CONTROL jacks ··························(21)
r TRIGGER OUT jacks ···································(21)
t DOCK CONTROL jack ································· (16)
y Speaker terminals ······································ (13)
u SIGNAL GND terminal ······························· (16)
i AC inlet ························································ (23)
o AC OUTLET ·················································(23)
Q0 ETHERNET connector ································ (22)
Q1 USB (iPod DIRECT) port ····························· (20)
Q2 Digital audio connectors ······················ (15~18)
Q3 DENON LINK connector ····························· (19)
Q4 COMPONENT VIDEO connectors ·········(15, 17)
Q5 HDMI connectors ········································ (14)
Q6 VIDEO / S-VIDEO connectors ·············· (15~18)
Q7 Analog audio connectors ·····················(15~18)
Q8 PRE OUT connectors ···························· (21, 83)
Q9 EXT. IN connectors ····································· (20)
Rear Panel
Getting Started
