Connecting Devices
Connecting the Recording Components

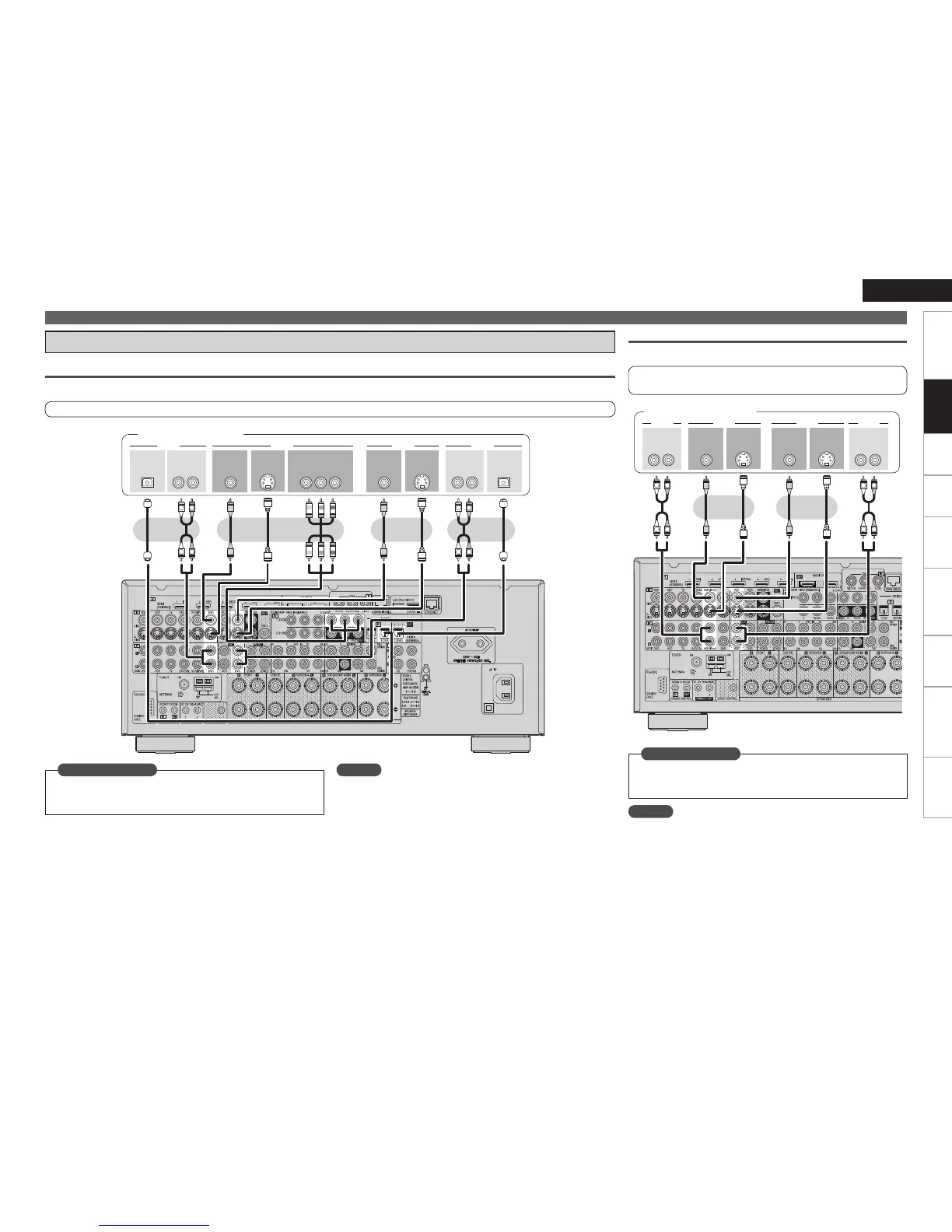

Digital Video Recorder
Select the terminal to use and connect the device.
R
L
R
L
R
L
R
L
3- 3-
065
*/
"6%*0"6%*0 7*%&07*%&0
065 */
015*$"-015*$"-
*/
"6%*0"6%*0
065
7*%&0 7*%&0
$0.10/&/57*%&0
: 1# 13
065
47*%&0
065
47*%&0
*/
Digital video recorder
NOTE
To record video signals through the AVR-4310, use the same type
of video cable for connection between the AVR-4310 and the player
as the cable used for connection between the AVR-4310 and the
recorder.
Do not connect the output of the component connected to the AVR-
4310’s OPTICAL2 (DVR) output connector to any input connector
other than OPTICAL2 (DVR).
•
•
Set this to change the input signal to which the input source is
assigned.
“Input Assign” (vpage 46)
Set as Necessary
For instructions on HDMI connections, see “Connecting Devices Equipped with HDMI Terminals” on page 14.
Video Cassette Recorder
Select the terminal to use and connect the device.
R
L
R
L
R
L
R
L
3-
065
"6%*0 7*%&0
"6%*0
3-
*/
"6%*0
"6%*0
065
7*%&0
47*%&0
065
7*%&0
*/
7*%&0
47*%&0
*/
Video cassette recorder
NOTE
To record video signals through the AVR-4310, use the same type
of video cable for connection between the AVR-4310 and the player
as the cable used for connection between the AVR-4310 and the
recorder.
Set this to change the input signal to which the input source is
assigned.
“Input Assign” (vpage 46)
Set as Necessary
For instructions on HDMI connections, see “Connecting Devices
Equipped with HDMI Terminals” on page 14.
Connections
