AVR-5308CI / AVC-A1HD
5. FRONT PANEL ASS’Y

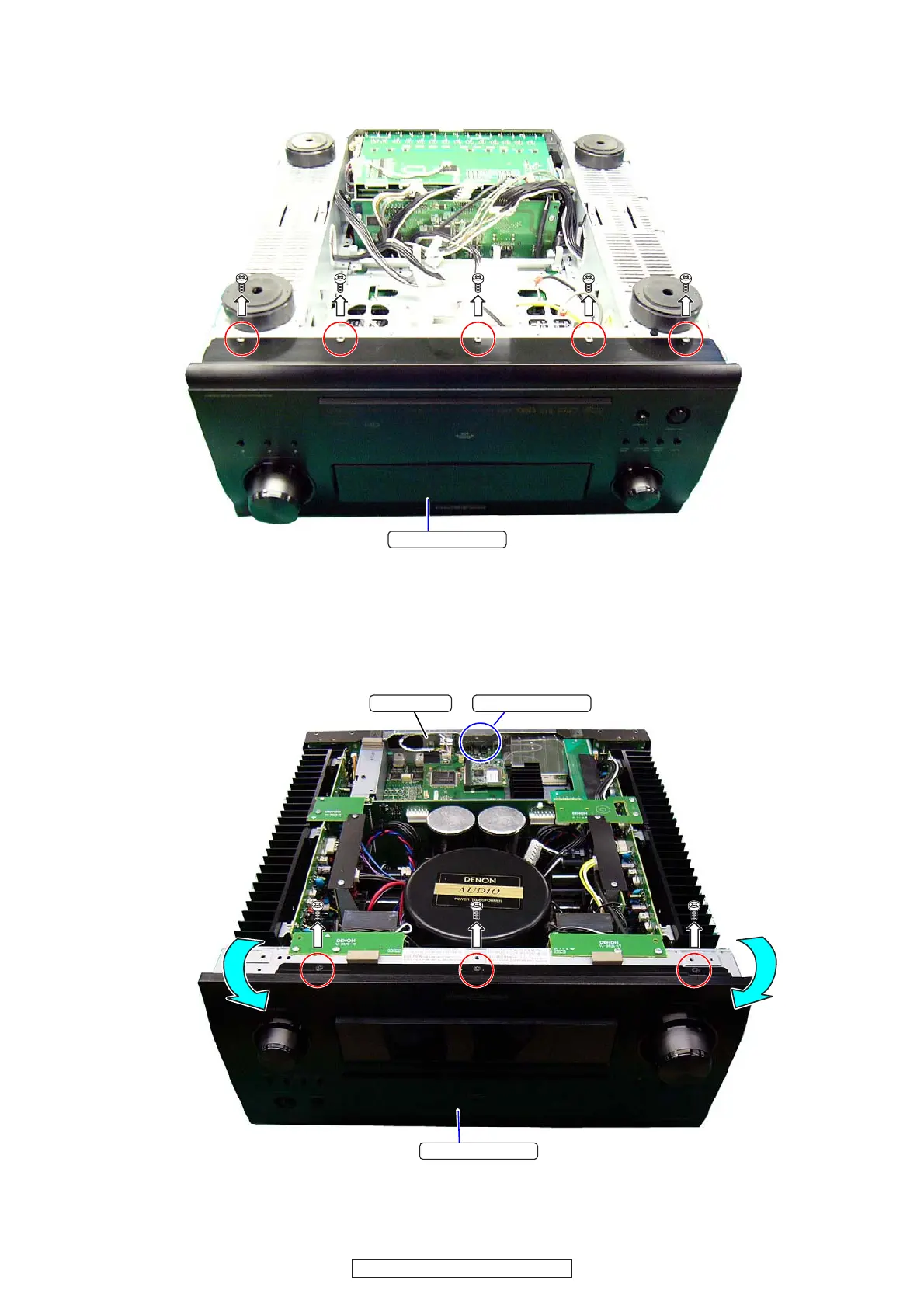

(1) Remove 5 screws of bottom side.
(2) Disconnect the CX530 5P-SHIELD WIRE on the 1U-
3819 : ETHERNET UNIT.
(3) Remove 3 screws of top side.
(4) Tip the Front panel in the direction of the arrow.
Front panel
CX530 5P-wire
Front panel
1U-3819
5. FRONTPANELASS'Y
(1) 底面のねじを 5 本をはずします。
(2) 1U-3819:ETHERNETUNITの CX5305P- シールドワ
イヤーをはずします。
(3) 天面のねじを 3 本をはずします。
(4) 矢印の方向にフロントパネルを傾けます。
