Denon AVR-591 Service Manual

21

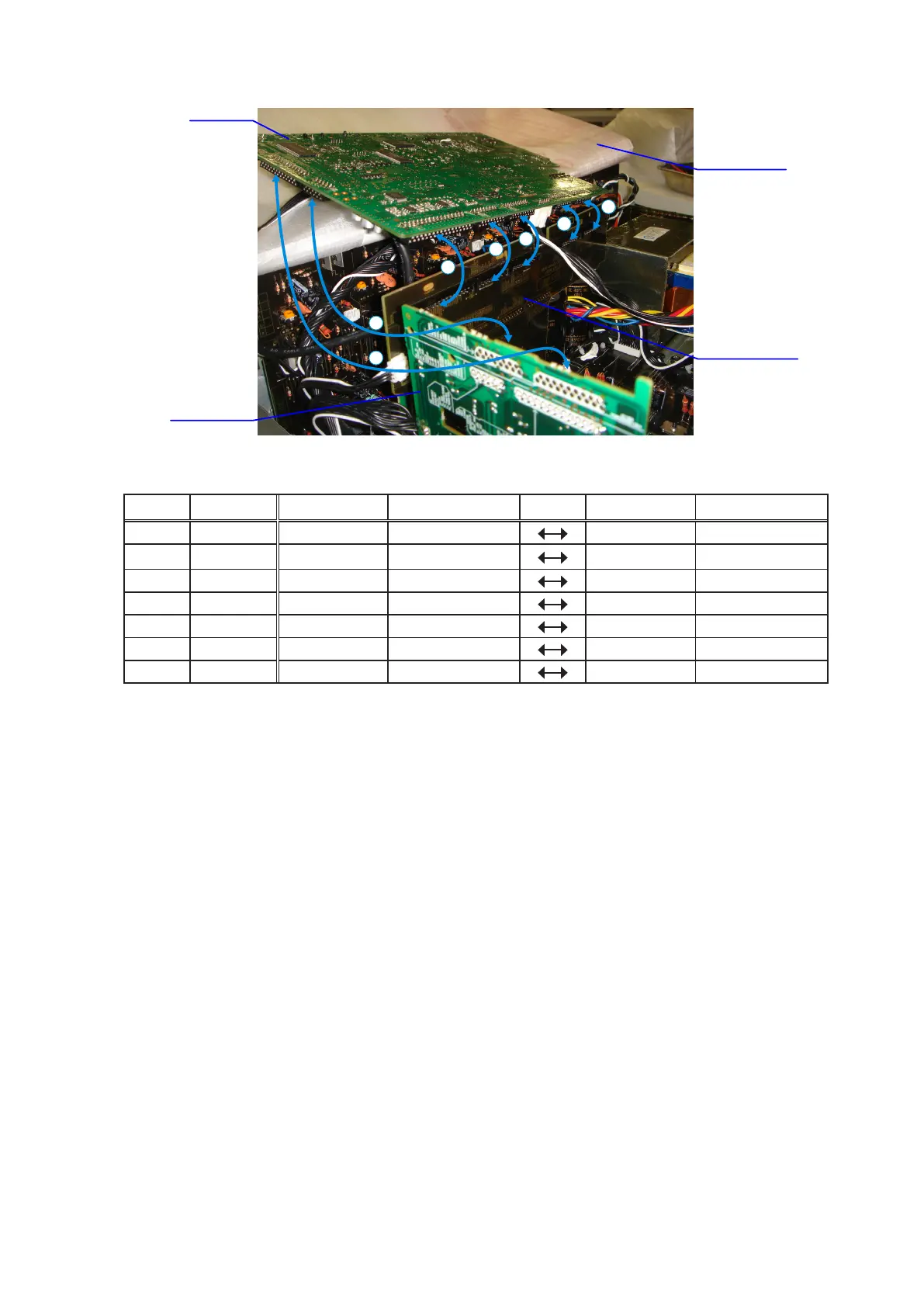

(4) Connect the four extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
11 pin CP3 SIDE CNT N2709 HDMI
w
25 pin CP4 SIDE CNT N2708 HDMI
e
19 pin CP105 FRONT CNT N2701 HDMI
r
17 pin CP106 FRONT CNT N2702 HDMI
t
19 pin CP108 FRONT CNT N2704 HDMI
y
17 pin CP109 FRONT CNT N2705 HDMI
u
33 pin CP110 FRONT CNT N2707 HDMI
1
2
3
4
5
6
7
PCB HDMI
PCB SIDE CNT
Insulation sheet
PCB FRONT CNT

Denon AVR-591 Specifications

General

Channels	5.1
Power Output	75 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance	200 mV / 47 kohms
Signal-to-Noise Ratio	98 dB
HDMI Inputs	4
HDMI Outputs	1
Audyssey	Audyssey MultEQ
HDMI Pass-Through	Yes
Tuner Bands	AM/FM
Preset Station Qty	56
Total Harmonic Distortion	0.08%
Tuner Frequency Range	FM: 87.5 - 107.9 MHz, AM: 520 - 1710 kHz
Dolby Support	Dolby Digital, Dolby Digital Plus
DTS Support	DTS-HD Master Audio
Dimensions	434 x 167 x 382 mm
Weight	21.6 lbs (9.8 kg)
