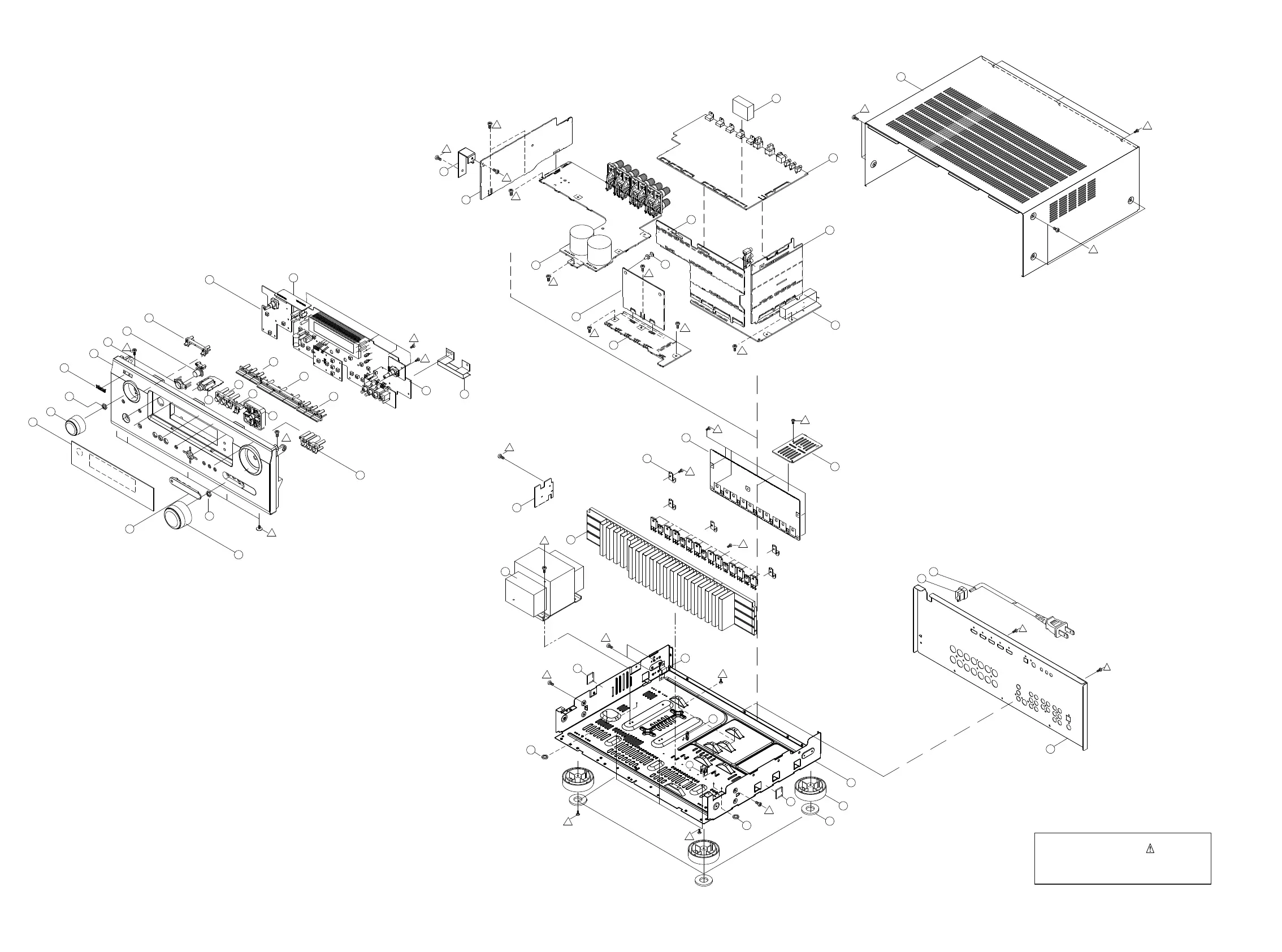

EXPLODED VIEW
76
G X3
G X3
D X3
E X15
28
T X5
32 X5
26
T
46
72
H x4
Q
T X5
33
29
T
70
P
P
4
3
2
1
15
18 -2
5
7
12
M
N
8
T X6
18 -1
17
16 -1
14
19
19
20
42
41 X4
40 X4
T x4
44
T
T
T
50
56
83
52
53
54
55
57
51
T
F
F
T
F
T
59
73
D
T
45
60
T
T
6
6
43 x3
82
T x3
T
82
BACK
PCB GUIDE CABLE
z
z
C X1
A X20
11
23
22
61
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
94
