Denon AVR-591 Service Manual

20
JIG FOR SERVICING
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order to DENON Ofcial Service. Distributor in your region if necessary.
Note: When the connection which is wrong in the JIG (EXTENSION UNIT KIT) is done it becomes cause of damage.
8U-110084S : EXTENSION UNIT KIT : 2 Set

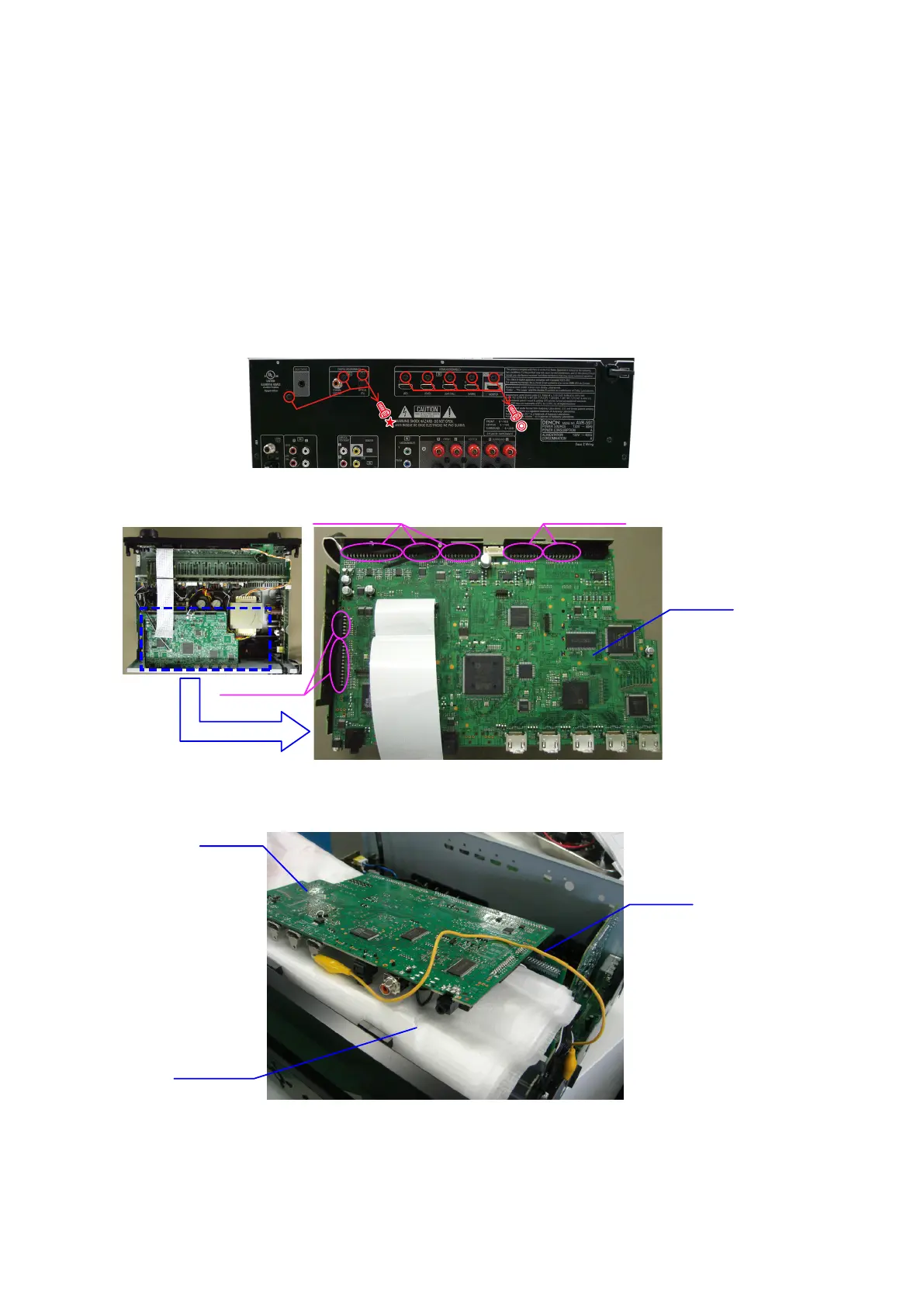

• Connection of PCB HDMI JIG
-Preparation-
8U-110084S : EXTENSION UNIT KIT : 2 Set
Insulation sheet (Do not supply it) : 1 sheet
Ground lead (Do not supply it) : 1 pc
-Procedures-
(1) Remove the screws.
(2) Disconnect the connector board.
(3) PCB HDMI is detached from the chassis, and it puts it into the state turned inside out.
Please pave an insulation sheet that is larger than PCB HDMI under PCB.
b
Connect the ground point of PCB to the chassis with a ground lead or the like.
PCB HDMI
Board to board
Board to board
Board to board
PCB HDMI
Insulation sheet
Ground lead

Denon AVR-591 Specifications

General

Channels	5.1
Power Output	75 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance	200 mV / 47 kohms
Signal-to-Noise Ratio	98 dB
HDMI Inputs	4
HDMI Outputs	1
Audyssey	Audyssey MultEQ
HDMI Pass-Through	Yes
Tuner Bands	AM/FM
Preset Station Qty	56
Total Harmonic Distortion	0.08%
Tuner Frequency Range	FM: 87.5 - 107.9 MHz, AM: 520 - 1710 kHz
Dolby Support	Dolby Digital, Dolby Digital Plus
DTS Support	DTS-HD Master Audio
Dimensions	434 x 167 x 382 mm
Weight	21.6 lbs (9.8 kg)
