23
Procedure for speaker settings
Speaker installation
Speaker connection (vpage24)

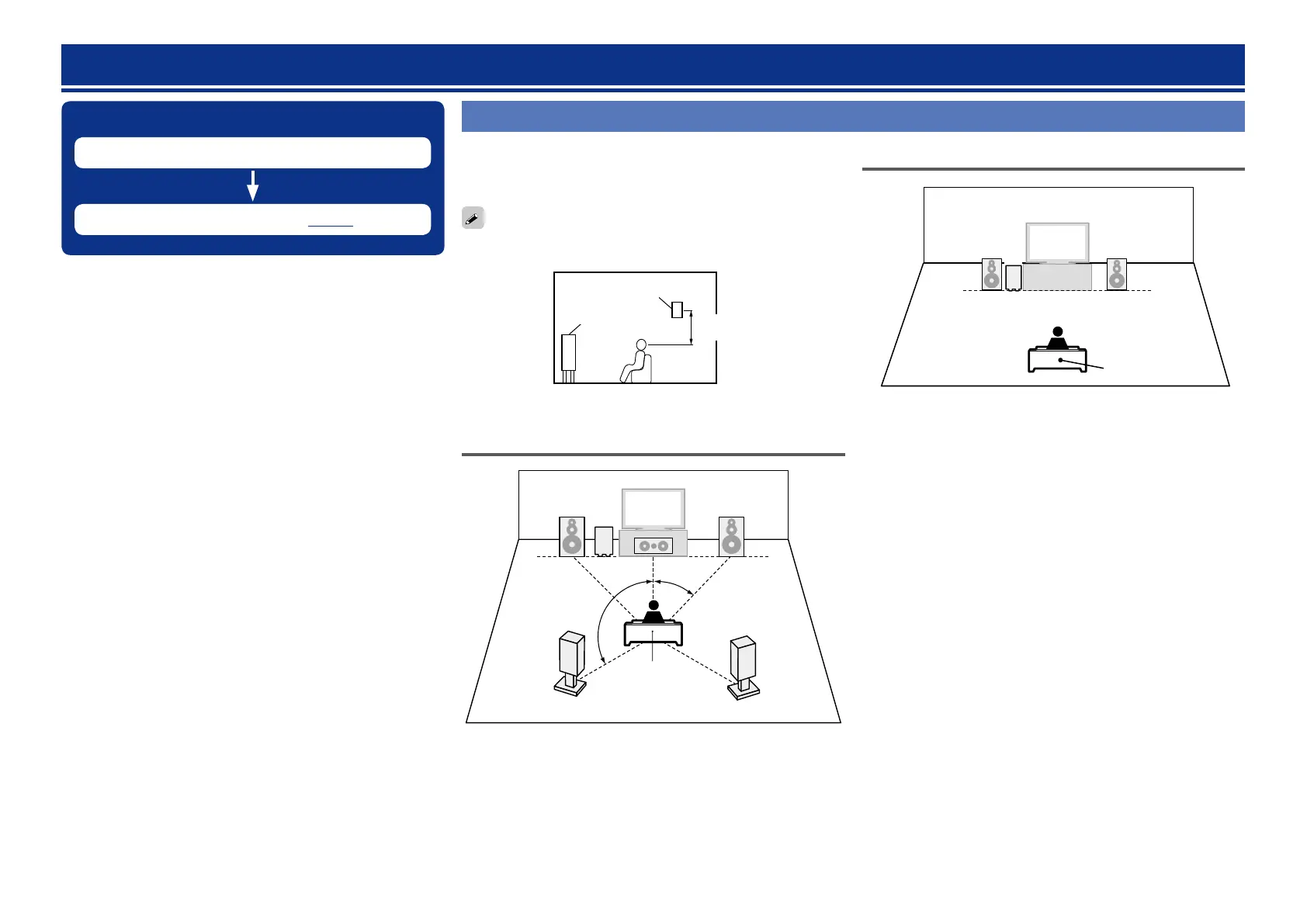

Speaker installation
•Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
•The speaker impedance should be from 6 to 16 Ω/ohms.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
Front
speaker
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
When 5.1 ch speakers are installed
FL FR
SW
C
SL
SR
z1
z2
Listening
position
z1 22˚ – 30˚ z2 120˚
When 2.1 ch speakers are installed
FR
SW
FL
Listening position
GSpeaker abbreviationsH
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
Installation/connection/setup of speakers (Advanced)
