45

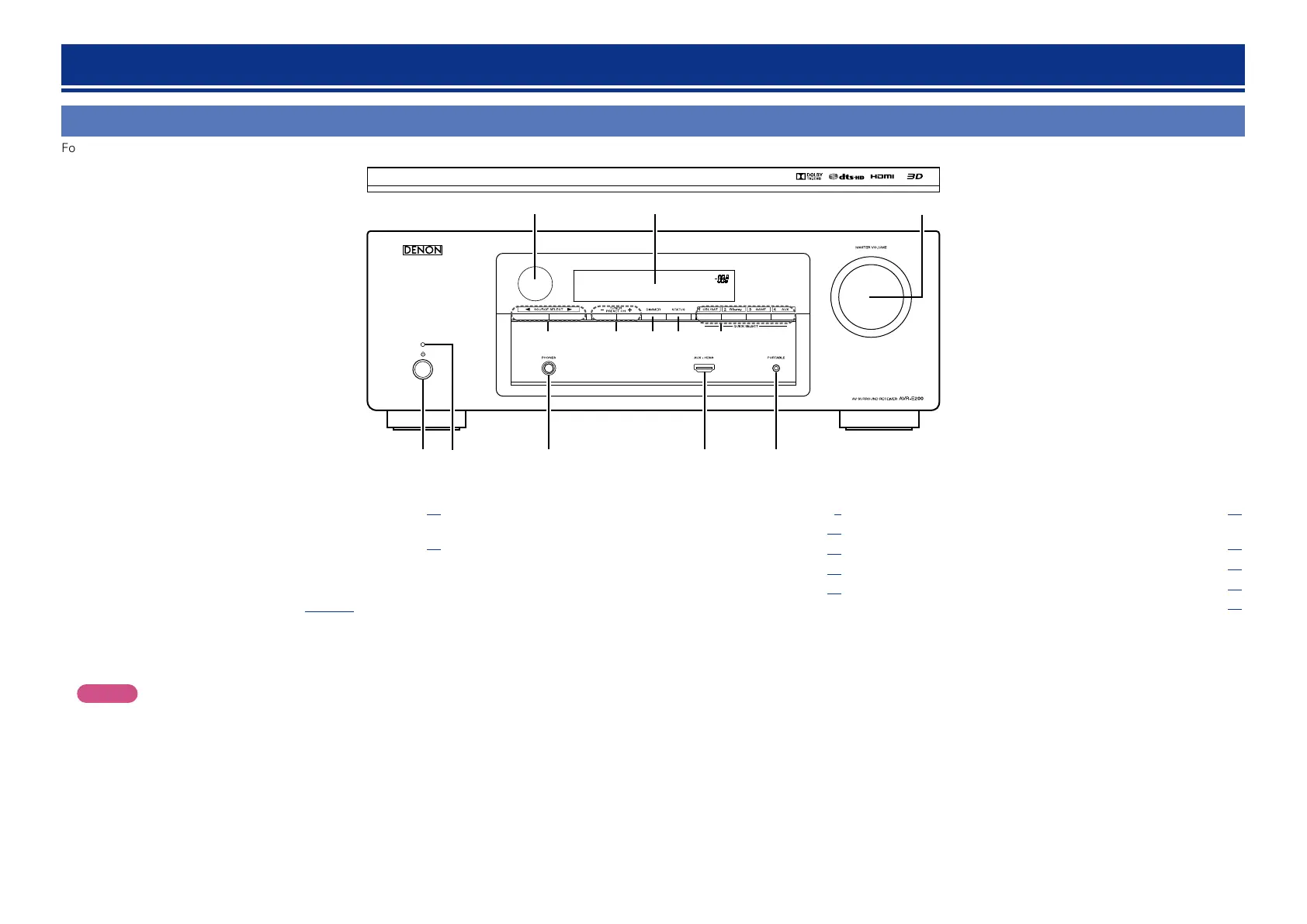

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
i u
y
Q1Q0 Q3o Q2
r tewq
q Power operation button (X) ··················································· (15)
Turns power to this unit on and off (standby).
w Power indicator ······································································· (15)
GPower indicator statusH
•Power on : Green
•Normal standby : Off
•Standby when “Pass Through” (vpage 38) is not set to
“Off” : Red
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
o SOURCE SELECT buttons (0 1) ··········································· (15)
Q0 Tuner preset channel buttons
(TUNER PRESET CH +, –) ························································ (18)
Q1 DIMMER button ······································································· (16)
Q2 STATUS button ······································································· (43)
Q3 QUICK SELECT buttons ·························································· (28)
r AUX HDMI connector ································································ (7)
t PORTABLE input jack ······························································ (13)
y MASTER VOLUME control knob ············································ (16)
u Display ······················································································ (46)
i Remote control sensor ··························································· (49)
Part names and functions
To Next Page
