Denon AVR-X1200W Service Manual

R5F56108VNFP (DIGITAL_MCU : IC751)

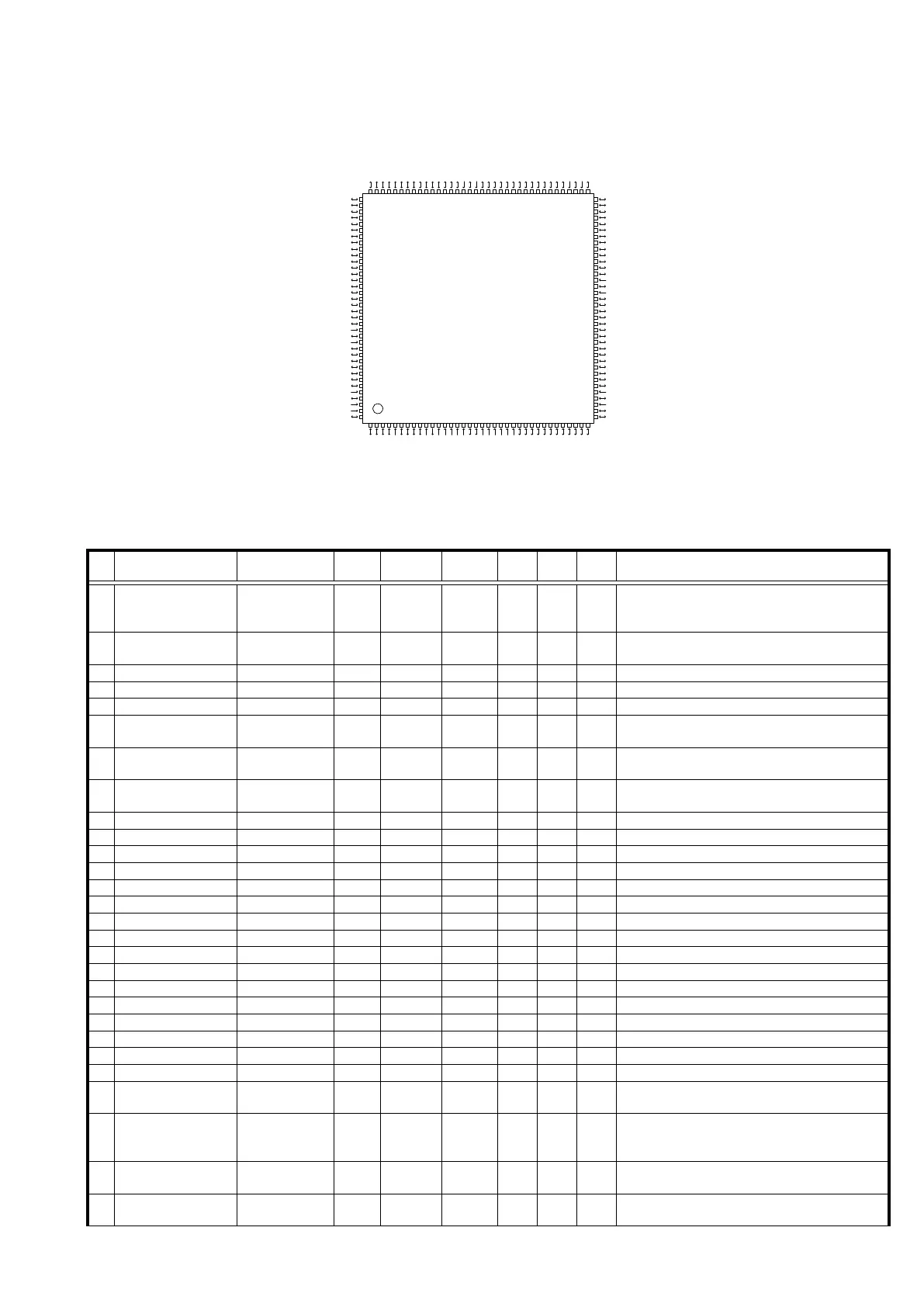

R5F56108VNFP Terminal Functions
Pin Pin Name Symbol I/O Pu/Pd
Lv
Cnv
STBY STOP
CEC
STBY
Function
1
P04/IRQ12-A/TMCI3/
TxD4/TDI
TDI/TXD
MITSUBISHI/
NC(NORMRAL)
I/O/I M3VPu -/-/I -/-/I I
E20 Emulator control pin
2
P03/IRQ11-A/TMRI3/
SCK4/TMS
TMS/
NC(NORMRAL)
I/I M3VPu -/I -/I I
E20 Emulator control pin
3 P67/DA1 HIN SELA O L L L
HDMI +5V (TC4051) control pin
4 P66/DA0 HIN SELB O L L L
HDMI +5V (TC4051) control pin
5 AVSS AVSS - - - -
Ground pin.
6
P02/IRQ10-A/TMO2/
SCK6/TRST#
TRST#/
NC(NORMRAL)
I/I Pd I/I I/I I
E20 Emulator control pin
7
P01/IRQ9-A/TMCI2/
RxD6
RXD MI232O I M3VPu I I I
External data input port
8
P00/IRQ8-A/TMRI2/
TxD6
TXD MO232I O L L L
External data output port
9 P65/IRQ15-A POWER KEY I M3VPu I I I
Detect POWER switch
10 EMLE EMLE I Pd - - -
E20 Emulator control pin
11 WDTOVF#/TDO TDO/WDTOVF# O/O - - -
E20 Emulator control pin
12 VSS VSS I - - -
Ground pin.
13 MDE MDE I Pd - - -
Pins for setting the operating mode
14 VCL
VCL I - - -
Smoothing capacitor connection pin
15 MD1 MD1 I M3VPu - - -
Pins for setting the operating mode
16 MD0 MD0 I M3VPu - - -
17 P86 CEC POWER2 O L L H
CEC STANDBY power control
18 P85 Tx EN O L L L
AD8195 control
19 RES# RESET I - - -
Reset signal input pin.
20 XTAL XTAL I - - -
Pins for a crystal resonator.
21 VSS VSS - - - -
Ground pin.
22 EXTAL EXTAL - - - -
Pins for a crystal resonator.
23 VCC VCC - - - -
Power supply pin.
24 NMI NMI I M3VPu - - -
Non-maskable interrupt request signal(Pull-up)
25
P34/IRQ4-A/PO12/
TIOCA1
BDOWN I I I I
Detect power down
26
P33/IRQ3-A/PO11/
TIOCC0/TIOCD0/
TCLKB-A
DAC.PLD ERR I L L L
Detect DAC.PLD ERROR
27
P32/IRQ2-A/PO10/
TIOCC0/TCLKA-A
DA POWER2 O L L L
DIGITAL AUDIO power supply (D1.0V) control
pin
28
P31/IRQ1-A/PO9/
TIOCA0/TIOCB0
ES DET I I I I
For debug
RX610 GROUP
PLQP0144KA-A
（144pin LQFP）
(Top View)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
108 107 106 105 104 103 102 101 100
99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
PE0/D8
PD6/D6
PD5/D5
PD4/D4
P64/CS4#-B
P63/CS3#-A/CS7#-A
P62/CS2#-A/CS6#-A
P61/CS1#/CS2#-B/CS5#-A/CS6#-B/CS7#-B
P60/CS0#/CS4#-A/CS5#-B
PD3/D3
PD2/D2
PD1/D
1
PD0
/D0
P96/AN14
P95/AN13
P94/AN12
P93/AN11
P92/AN10
P91/AN9
VSS
P90/AN8
VCC
P47/AN7/IRQ15-B
P46/AN6/IRQ14-B
P45/AN5/IRQ13-B
P44/AN4/IRQ12-B
P43/AN3/IRQ11-B
P42/AN2/IRQ10-B
P41/AN1/IRQ9-B
VREFL
P40/AN0/IRQ8-B
VREFH
P05/TMO3/RxD4/IRQ13-A/TCK
PD7/D7
P97/AN15
AVCC
PC4/A20
PC6/A22/RxD5/CS6#-D
PC7/A23/TxD5/CS4#-D/CS7#-D
P75
P76/IRQ14-A
P77
P50/WR0#/WR#
P51/WR1#/BC1#
P52/RD#
P53/BCLK
P80
P81/TRSYNC
VCC
VSS
P83
P54/TRDATA0
P55/TRDATA1
P56/TRDATA2
P57/WAIT#/TRDATA3
P84
P35/PO13/TIOCA1/TIOCB1/TCLKC-A
P36/PO14/TIOCA2
P37/PO15/TIOCA2/TIOCB2/TCLKD-A
P10/IRQ0-B
P11/SCK2/IRQ1-B
P12/RxD2/IRQ2-B
P1
3/TxD2/AD
TRG0#/IRQ3-B
P14/TCLKA-B/SDA1/IRQ4-B
P15/TCLKB-B/SCK3/SCL1/IRQ5-B
PLLVSS
P16/TCLKC-B/RxD3/SDA0/IRQ6-B
PLLVCC
P20/PO0/TIOCA3/TIOCB3/TMRI0/TxD0
PC5/A21/SCK5/CS5#-D
P82/TRCLK
P17/TCLKD-B/TxD3/SCL0/ADTRG1#/IRQ7-B
PE1/D9 PE3/D11 PE4/D12 PE5/D13/IRQ5-A PE6/D14/IRQ6-A PE7/D15/IRQ7-A PA0/A0/BC0#/PO16/TIOCA6 PA1/A1/PO17/TIOCA6/TIOCB6
PA2/A2/PO18/TIOCC6/TCLKE PA3/A3/PO19/TIOCC6/TIOCD6/TCLKF
PA4/A4/PO20/TIOCA7 PA5/A5/PO21/TIOCA7/TIOCB7/TCLKG
PA6/A6/PO22/TIOCA8
VSS PB0/A8/PO24/TIOCA9
VCC P70/CS3#-B/ADTRG2#
P71/CS4#-C/CS5#-C/CS6#
-C/CS7#-C
P
72
P73 P74/ADTRG3# PB1/A9/PO25/TIOCA9/TIOCB9 PB2/A10/PO26/TIOCC9 PB3/A11/PO27/TIOCC9/TIOCD9
PB4/A12/PO28/TIOCA10 PB5/A13/PO29/TIOCA10/TIOCB10
PB6/A14/PO30/TIOCA11 PB7/A15/PO31/TIOCA11/TIOCB11 PC0/A16 PC1/A17 VSS PC2/A18 PC3/A19
PE2/D10 PA7/A7/PO23/TIOCA8/TIOCB8/TCLKH
VCC
P04/TMCI3/TxD4/IRQ12-A/TDI
P67/DA1 P66/DA0
AVSS
P02/TMO2/SCK6/IRQ10-A/TRST#
P01/TMCI2/RxD6/IRQ9-A
P00/TMRI2/TxD6/IRQ8-A
P65/IRQ15-A
EMLE
WDTOVF#/TDO
VSS
MDE
VCL
MD0
P86 P85
RES#
XTAL
VSS
EXTAL
VCC
NMI
P34/PO12/TIOCA1/IRQ4-A
P33/PO11/TIOCC0/TIOCD0/TCLKB-A/I
RQ3-A
P32
/PO10/TIOCC0/TCLKA-A/IRQ2-A
P31/PO9/TIOCA0/TIOCB0/IRQ1-A
P30/PO8/TIOCA0/IRQ0-A
P27/PO7/TIOCA5/TIOCB5/SCK1
P26/PO6/TIOCA5/TMO1/TxD1
P25/PO5/TIOCA4/TMCI1/RxD1
P24/PO4/TIOCA4/TIOCB4/TMRI1
P23/PO3/TIOCC3/TIOCD3
P21/PO1/TIOCA3/TMCI0/RxD0
P03/TMRI3/SCK4/IRQ11-A/TMS
MD1
P22/PO2/TIOCC3/TMO0/SCK0
129
