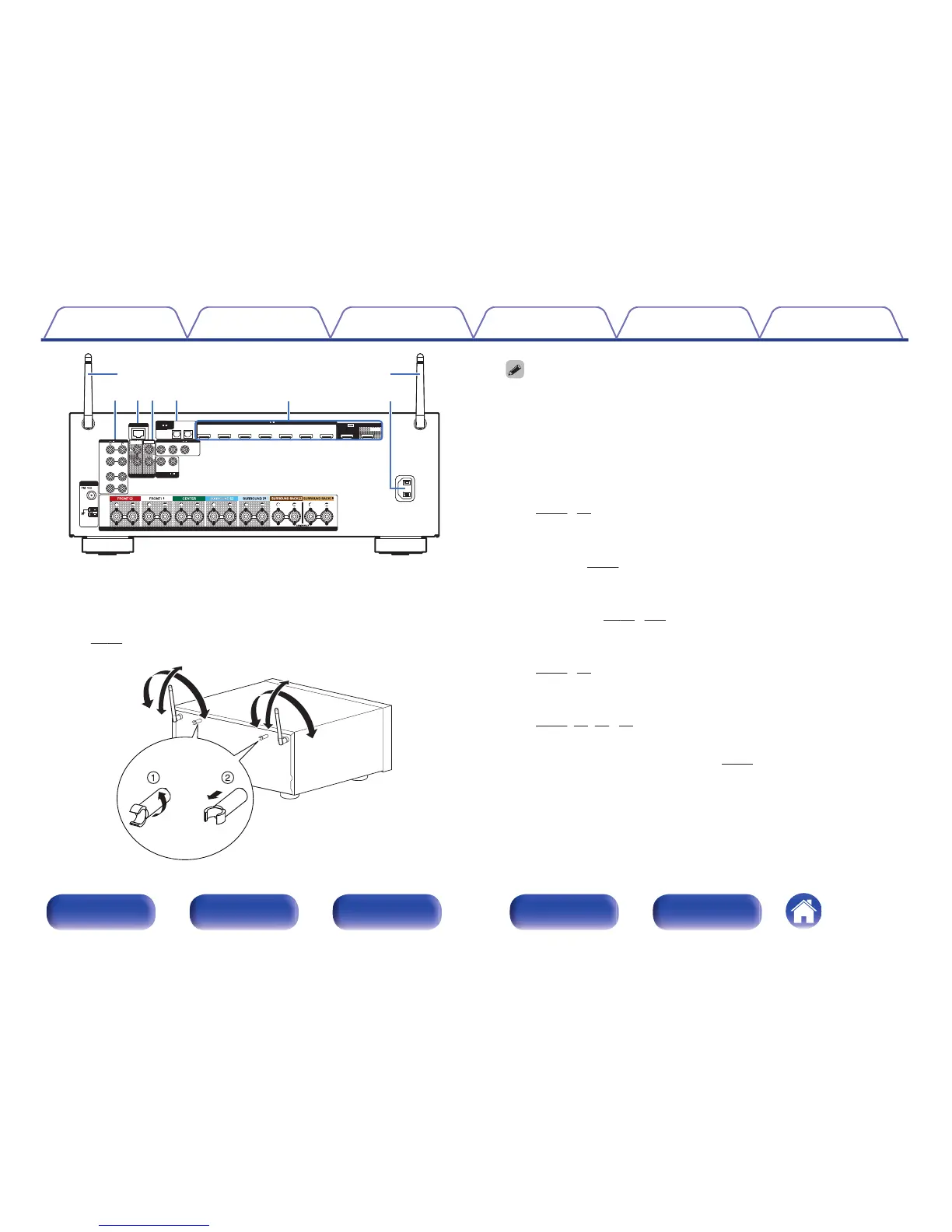

Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless
LAN, or when connecting to a handheld device via Bluetooth.
(v p. 51)
.
90°
320°
320°
90°
The antenna clip can be removed from the rear panel.
A
Rotate the antenna clip 90 degrees to the left.
B
Pull the antenna clip out towards yourself.
0
The antenna clip is needed when transporting this unit. Keep it in a safe place.
0
Attach the antenna clip by following the steps for removing it in reverse.
B
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v
p. 43, 44)
C
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network.
(v
p. 50)
D
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or power amplifier
for ZONE2.
(v
p. 29, 127)
E
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
(v p. 40, 44)
F
HDMI connectors
Used to connect devices equipped with HDMI connectors.
(v
p. 39, 40, 43, 44)
G
AC inlet (AC IN)
Used to connect the power cord.
(v
p. 52)
