Denon AVR-X3200W User Manual

.
MASTER VOLUME
SOURCE SELECT
ONLINE
MEDIA
PLAYER
Blu-rayCBL/SAT
3214
ZONE2
ON/OFF
ZONE2
SOURCE
DIMMER STATUS
TUNER
PRESET CH
SETUP MICAUX1 - HDMI
PHONES
QUICK SELECT
tyq ew r
u ioQ0Q1
A

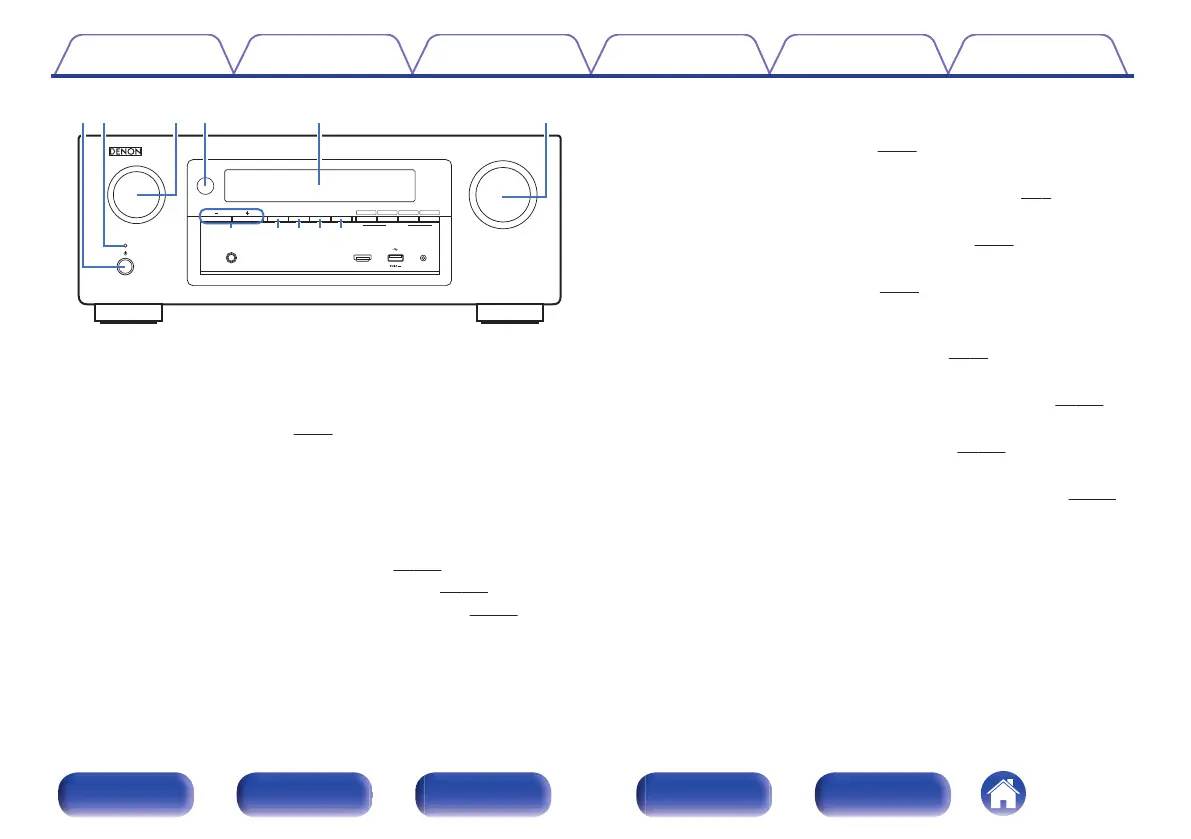

Power operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v
p. 67)
B
Power indicator
This is lit as follows according to the power status:
0
White: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI Control” is set to “On” (v
p. 170)
0
When “HDMI Pass Through” is set to “On” (v
p. 171)
0
When “Network Control” is set to “Always On” (v p. 213)
C
SOURCE SELECT knob
This selects the input source. (v
p. 67)
D
Remote control sensor
This receives signals from the remote control unit. (v p. 8)
E
Display
This displays various pieces of information. (v
p. 16)
F
MASTER VOLUME knob
This adjusts the volume level. (v
p. 68)
G
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v
p. 86)
H
ZONE2 ON/OFF button
This turns the power of ZONE2 (separate room) on/off. (v p. 147)
I
ZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 147)
J
DIMMER button
Each press of this switches the brightness of the display. (v p. 222)
K
STATUS button
Each press of this switches the status information that is shown on the
display.
Contents
Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

Denon AVR-X3200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	5
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	vTuner
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	650 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	11300 g
