Denon AVR-X3200W User Manual

.
MASTER VOLUME
SOURCE SELECT
ONLINE
MEDIA
PLAYER
Blu-rayCBL/SAT
3214
ZONE2
ON/OFF
ZONE2
SOURCE
DIMMER STATUS
TUNER
PRESET CH
SETUP MICAUX1 - HDMI
PHONES
QUICK SELECT
Q2
Q
6
Q
4
Q
5
Q
3
L

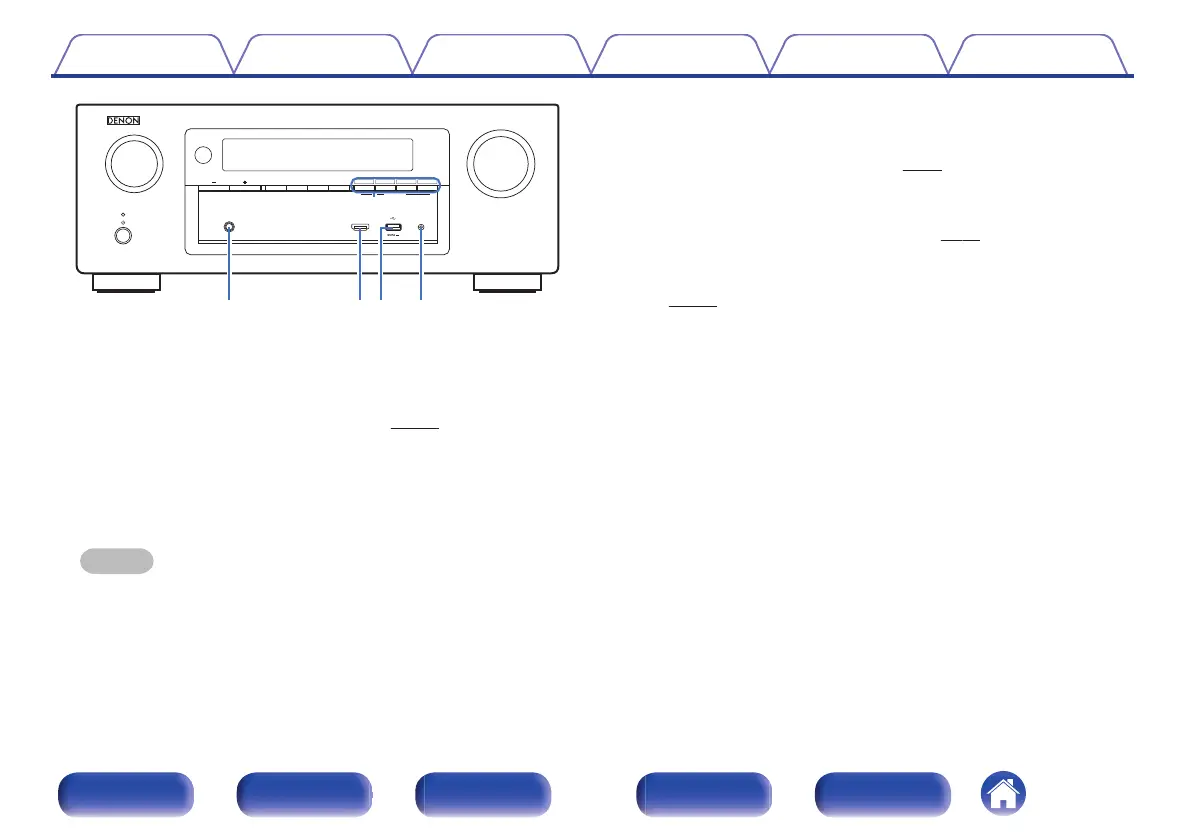

QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v
p. 140)
M
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
N
AUX1-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v p. 56)
O
USB port (T)
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod. (v p. 57)
P
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 189)
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Denon AVR-X3200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	5
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	vTuner
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	650 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	11300 g
