Denon AVR-X4000

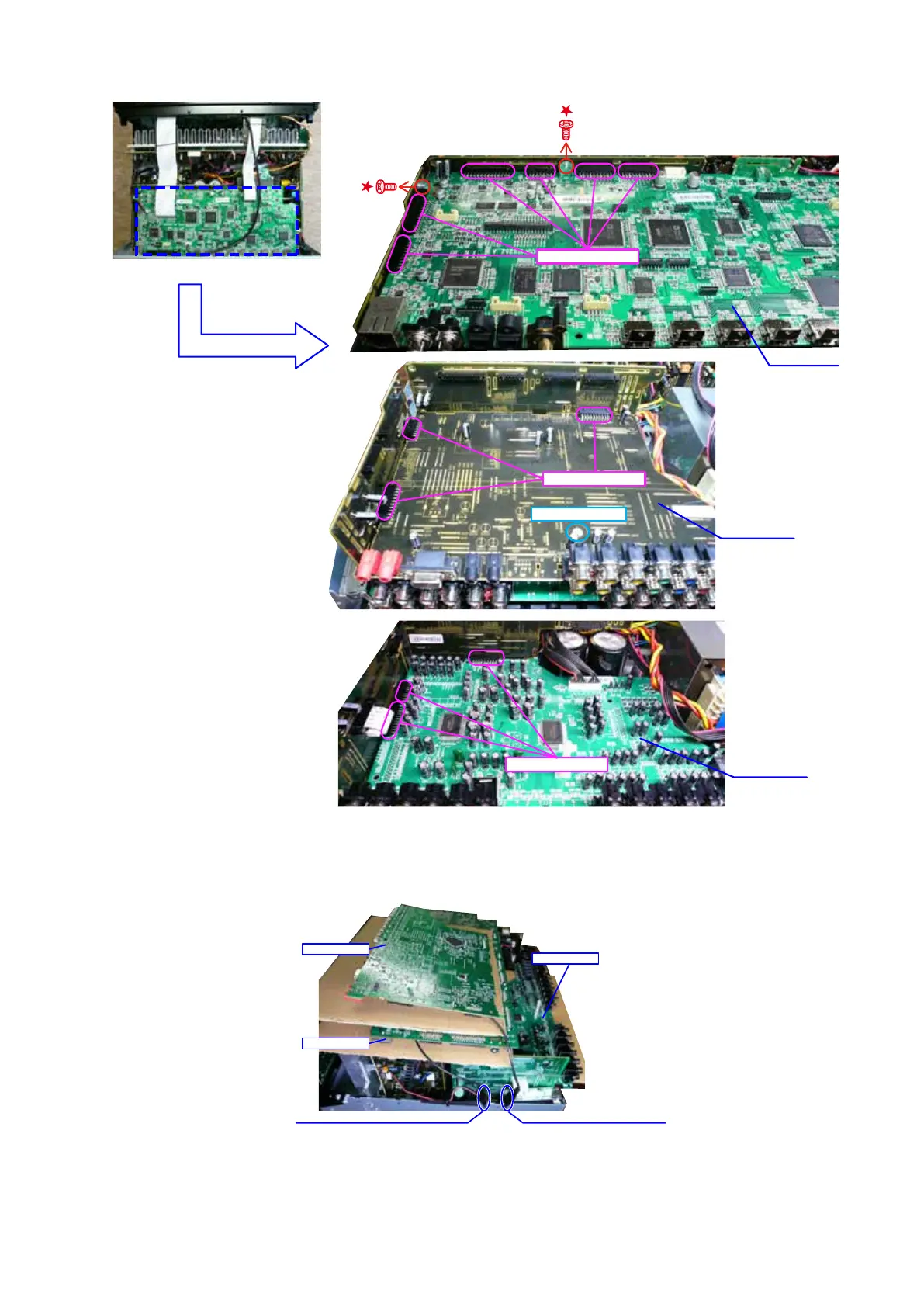

(2) Disconnect the connector board.
(3) Detach PCB HDMI from the chassis, and turn it over.
Please put an insulation sheet that is larger than PCB HDMI under PCB.
b
Connect the ground point of PCB to the chassis with a ground lead or the like.
Board to board
Board to board
Board to board
SUPPORT PCB
PCB INPUT
PCB VIDEO
PCB DIGITAL
CHASSIS - HDMI CONECTORCHASSIS - COMPOSIT CONECTOR
PCB DIGITAL
PCB VIDEO
PCB INPUT
71
