Denon AVR-X4000

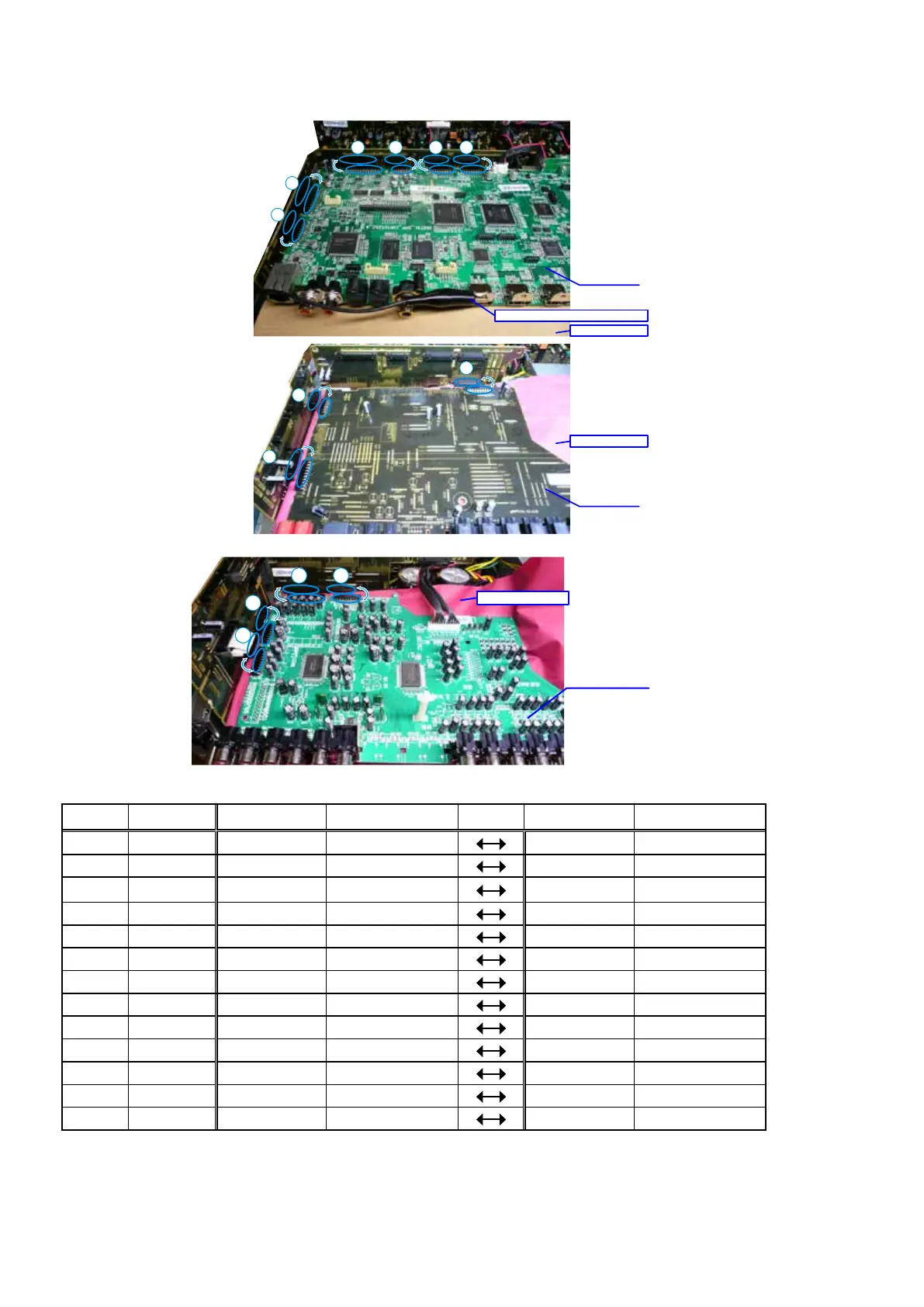

(4) Connect the six extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
17pin CN27A SIDE CNT
BN27A DIGTAL
w
27pin CN23A SIDE CNT
BN23A DIGTAL
e
27pin CN24A FRT CNT
BN24A DIGTAL
r
13pin CN26A FRT CNT
BN26A DIGTAL
t
19pin CN25A FRT CNT
BN25A DIGTAL
y
19pin CN21A FRT CNT
BN21A DIGTAL
u
19pin CN27B SIDE CNT
BN27B VIDEO
i
13pin CN28B SIDE CNT
BN28B VIDEO
o
19pin CN21B FRT CNT
BN21B VIDEO
Q0
19pin CN23B SIDE CNT
BN23B INPUT
Q1
15pin CN64B SIDE CNT
BN64B INPUT
Q2
27pin CN24B FRT CNT
BN24B INPUT
Q3
19pin CN26B FRT CNT
BN26B INPUT
2
1
9
3
4
5
6
7
8
PCB DIGITAL
PCB VIDEO
Insulation sheet
Insulation sheet
CHASSIS-HDMI CONNECTOR
12 13
10
11
Insulation sheet
PCB INPUT
