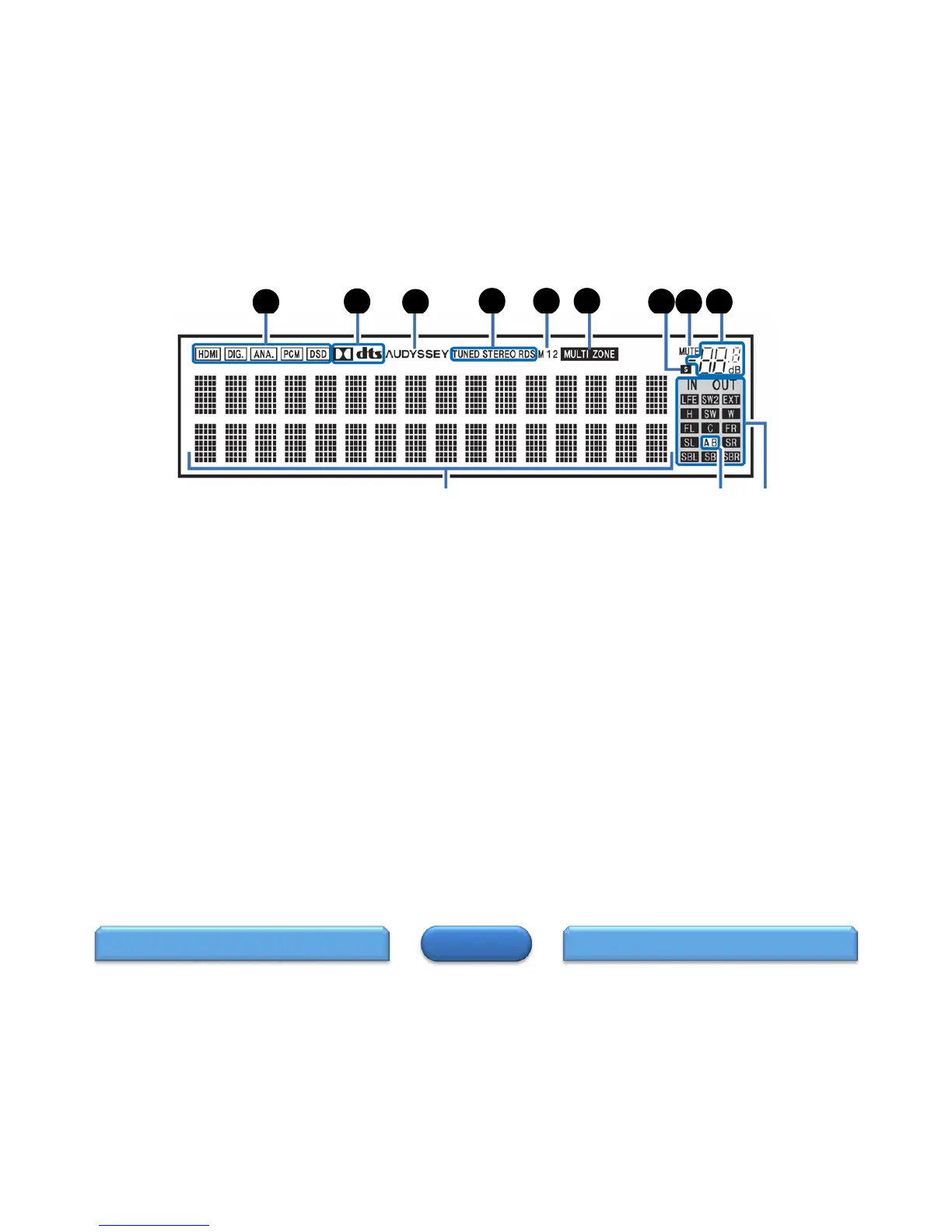

Display
Input signal indicators
The respective indicator will light corresponding to the input signal.
Decoder indicators
These light when Dolby or DTS signals are input or when the Dolby or DTS
decoder is running.
Audyssey
®
indicator
This lights when “MultEQ
®
XT32”, “Dynamic EQ”, “Dynamic Volume”,
“Audyssey DSX
®
” or “Audyssey LFC
TM
” is set.
Tuner reception mode indicators
These light up according to the reception conditions when the input source is
set to “HD Radio”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
Monitor output indicator
These light according to the HDMI monitor output setting. When set to
“Auto(Dual)”, the indicators light according to connection status.
MULTI ZONE indicator
This lights up when ZONE2 or ZONE3 (separate room) power is turned on.
Sleep timer indicator
This lights when the sleep mode is selected.
MUTE indicator
This blinks while the sound is muted. link,
Volume indicator
Information display
The input source name, sound mode, setting values and
other information are displayed here.
Front speaker indicator
This lights according to the setting of the front A and B
speakers.
Input/output signal channel indicators
The channel for input/output signals is displayed according to
the setting configured for “Channel Indicators”.
• When “Channel Indicators” is set to “Output” (Default)
These light when audio signals are being output from the
speakers.
• When “Channel Indicators” is set to “Input” These light
corresponding to the channels that include the input
signals.
When playing HD Audio sources, the EXT indicator lights
when a signal from an extension channel (a channel other
than the front, center, surround, surround back, front height,
front wide or LFE channel) is input.
1
2
3
4
5
6
7
8
9
HOME
REAR PANEL 1
Buttons and Connectors Behind the
Compartment Door (2 of 2)
5
To Next Page
