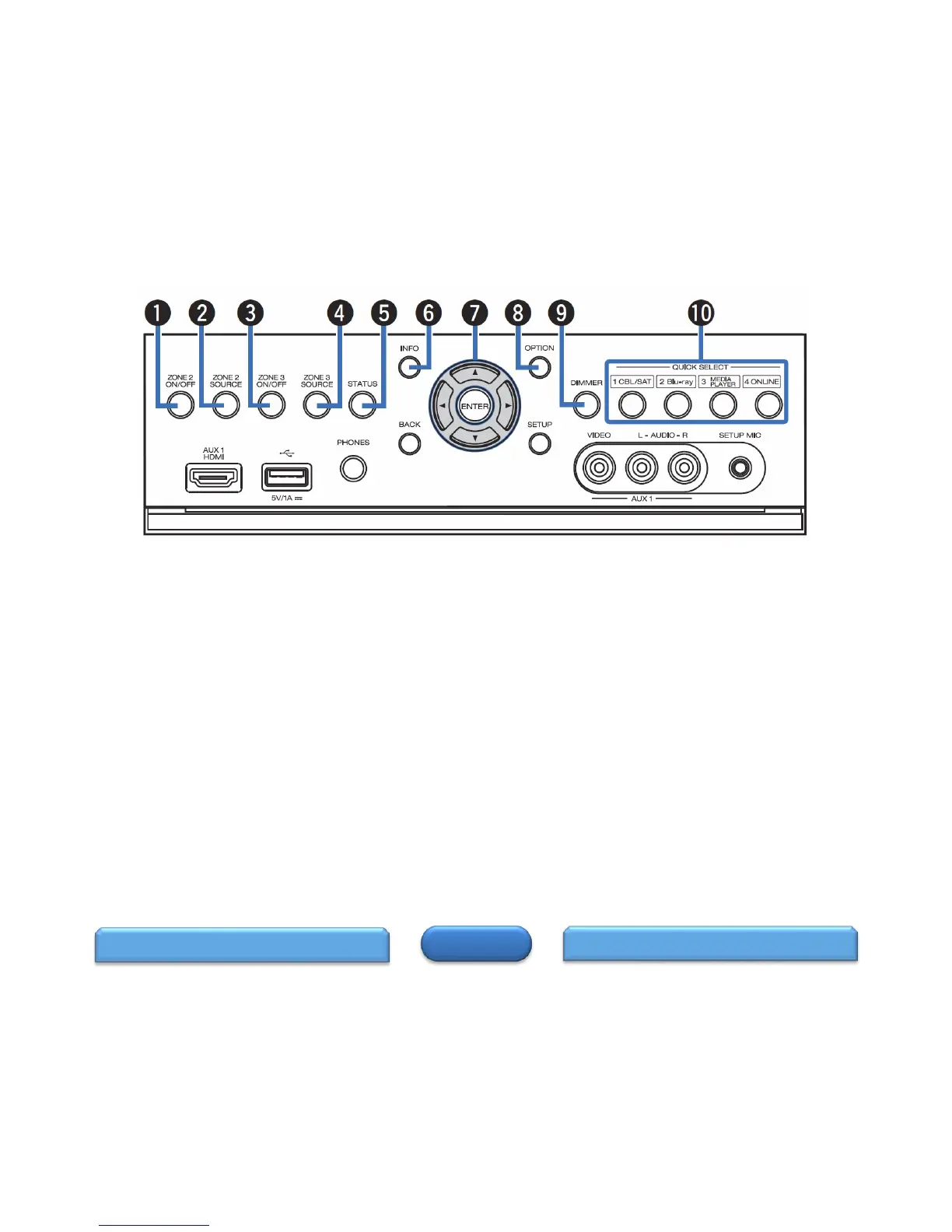

Buttons and Connectors Behind the Compartment Door (1 of 2)
ZONE2 ON/OFF button
This turns the power of ZONE2 on/off.
ZONE2 SOURCE button
This selects the input source for ZONE2.
ZONE3 ON/OFF button
This turns the power of ZONE3 on/off.
ZONE3 SOURCE button
This selects the input source for ZONE3.
STATUS button
Each press of this switches the status information that is shown
on the display.
Information button (INFO)
This displays the status information on the TV screen.
Cursor buttons
These select items.
OPTION button
This displays the option menu on the TV screen.
DIMMER button
Each press of this switches the brightness of the display.
QUICK SELECT buttons
These call up settings registered to each button, such as input
source, volume level and sound mode settings.
HOME
FRONT PANEL
Buttons and Connectors Behind the
Compartment Door (2 of 2)
3
To Next Page
