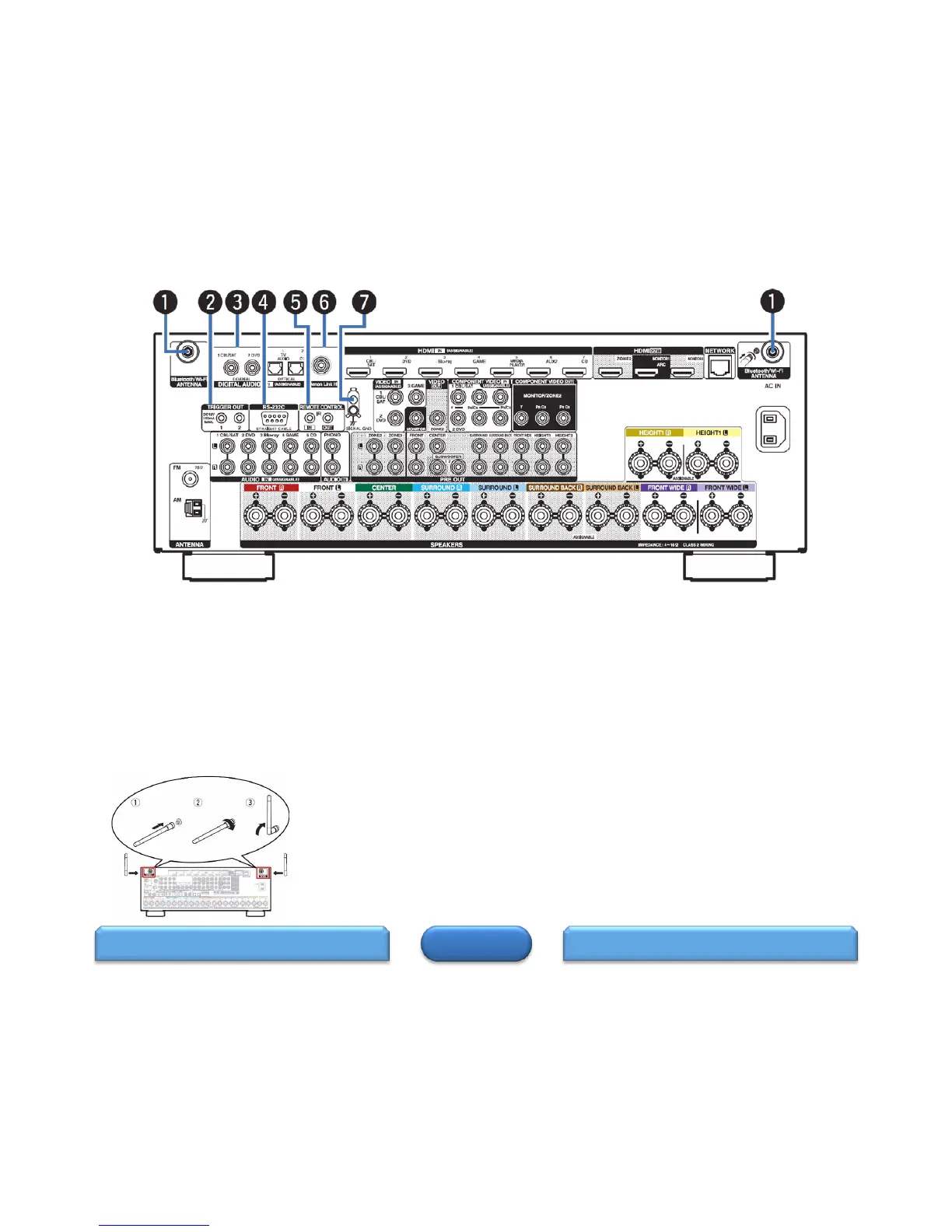

Rear Panel (1 of 2)
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for
Bluetooth/wireless connectivity when connecting to a network
via wireless LAN, or when connecting to a handheld device via
Bluetooth.
• Place the external antennas for Bluetooth/wireless
connectivity evenly over the screw terminal of rear.
• Turn clockwise until the antennas is fully connected.
• Rotate the antenna upwards for best reception.
HOME
REAR PANEL 2DISPLAY
TRIGGER OUT jacks
Used to connect devices equipped with the trigger function.
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room.
Denon Link HD connector
Used to connect a Denon Link HD compatible Blu-ray Disc player.
SIGNAL GND terminal
Used to connect a ground wire for the turntable.
