Denon AVR-X500 Service Manual

52
YES
YES
YES

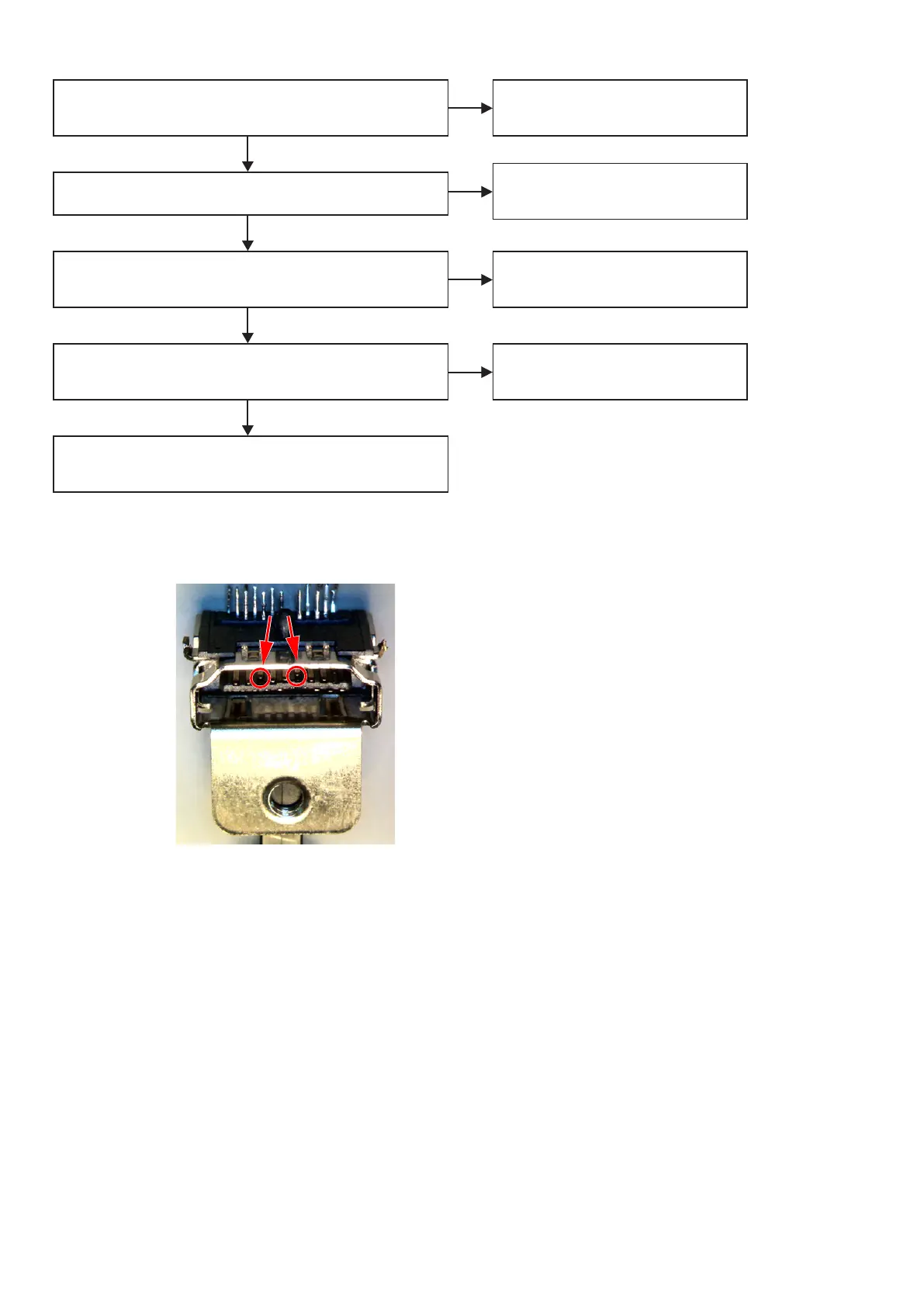

(20) Check xtal oscillator.
Is there 28.6363MHz oscillation of X101?
(21) Check RESET.
Is RESET waveform conrmed at IC11 (97pin)? (If reference
waveform, proceed to "YES".)
HDMI output circuitry is defective (IC11 and surrounding circuitry).
Replace the IC11.
(22) Check control signal(I2C).
Is waveform conrmed at Test point (SDA/SCL). (If not continued
to " L", proceed to "YES".)
The X101 or IC11 is defective.
Replace the new parts.
The RESET pattern or IC11 is defective.
Replace the new parts.
The SDATA/SCL line pattern is defective.
NO
NO
NO
YES
(19) Check power supply.
Are 1.8V or 3.3V supplied to IC11 (each power supply pin)?
The power supply circuitry is defective.
NO
(*1) Abnormal sample of HDMI connector : The internal terminal has bent.

Denon AVR-X500 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Pre-out channels	1 SW
Speaker selector	No
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	140 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Audio (L/R) in	3
Composite video in	2
Ethernet LAN (RJ-45) ports	0
Number of HDMI outputs	1
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Multichannel pre out connectivity	RCA
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	Not supported
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	330 W
Cables included	AC

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7900 g
