Denon AVR-X6500H

HDMI Tx [N3402] is faulty.
Replace with a new device.
HDMI Tx [N3402] is faulty.
Replace with a new device.
Recheck from check item (3.4.)
If it does not work, replace the PCB.
Recheck from check item (3.4.)
If it does not work, replace the PCB.
Check for a short circuit in the TMDS line.
If there is no problem, the HDMI Tx [N3402] is faulty.
Replace with a new device.
Check for a short circuit in the HPD line.
If there is no problem, the HDMI Tx [N3402] is faulty.
Replace with a new device.
When the results of check item (3-16.4.) are "10"
(Detection of HPD is OK / Detection of RXSENSE is not OK )
When the results of check item (3-16.4.) are "20"
(Detection of HPD is not OK / Detection of RXSENSE is OK )

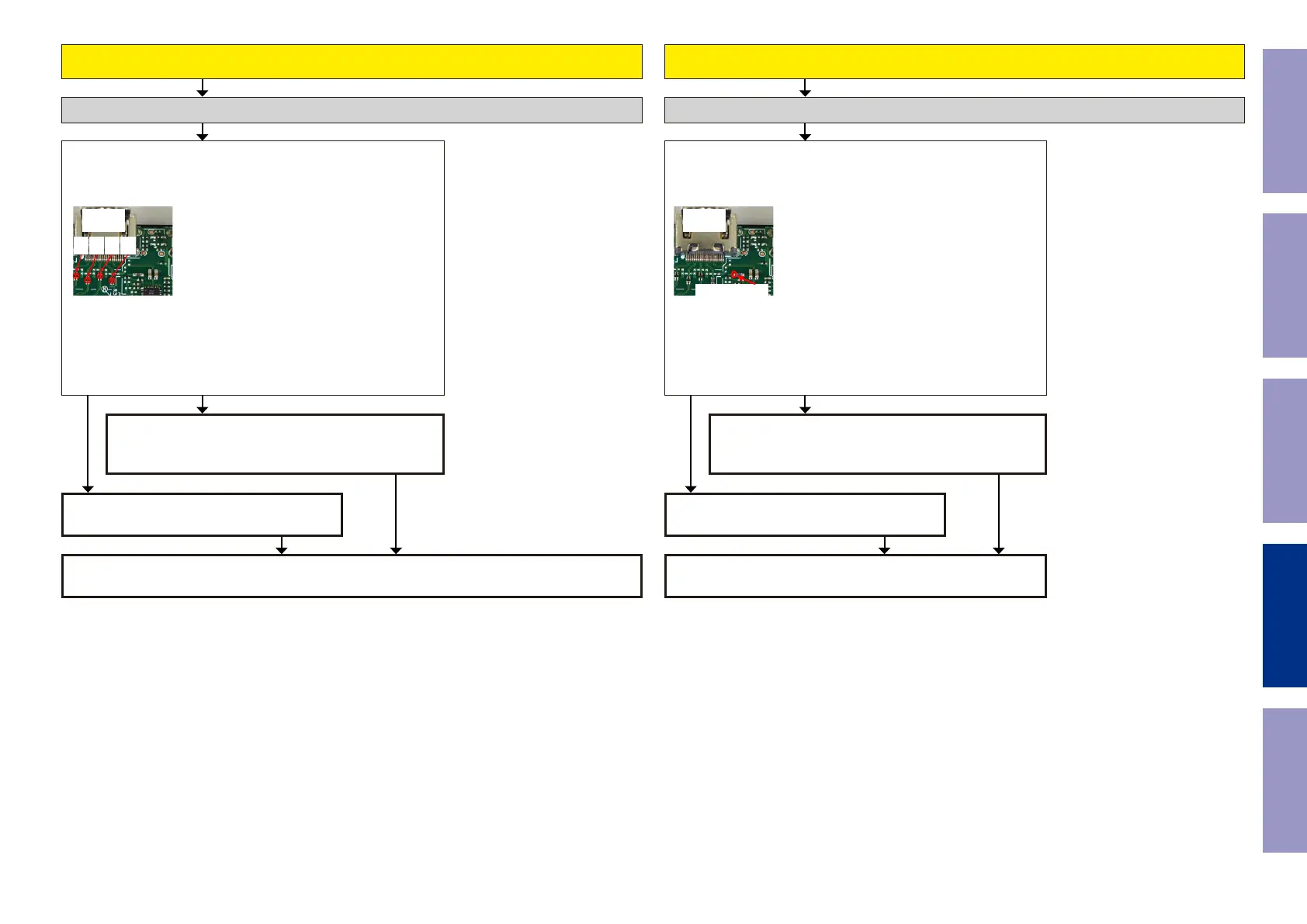

Check item(3-16.8.). Checking the RXSENSE :
Does the test point near HDMI output terminal [N3402] indicate
(3.3V)?
N3402
HDMI OUT
[MONITOR1]
D2+ D2- D1+ D1- D0+ D0- CK+ CK-
Check item(3-16.9.). Checking the HPD :
Does the test point (HPD) near HDMI output terminal [N3402] indi-
cate "Hi(3-5V)"?
N3402
HDMI OUT
[MONITOR1]
L3806:HPD
Check the TMDS. (HDMI OUT1) Check the HPD. (HDMI OUT1)
NO NOYES YES
