HDMI Tx [N3402] is faulty.
Replace with a new device.
Recheck from check item (3.4.)
If it does not work, replace the PCB.
Check for a short circuit in the TMDS/HPD line.
If there is no problem, the HDMI Tx [N3402] is faulty.
Replace with a new device.

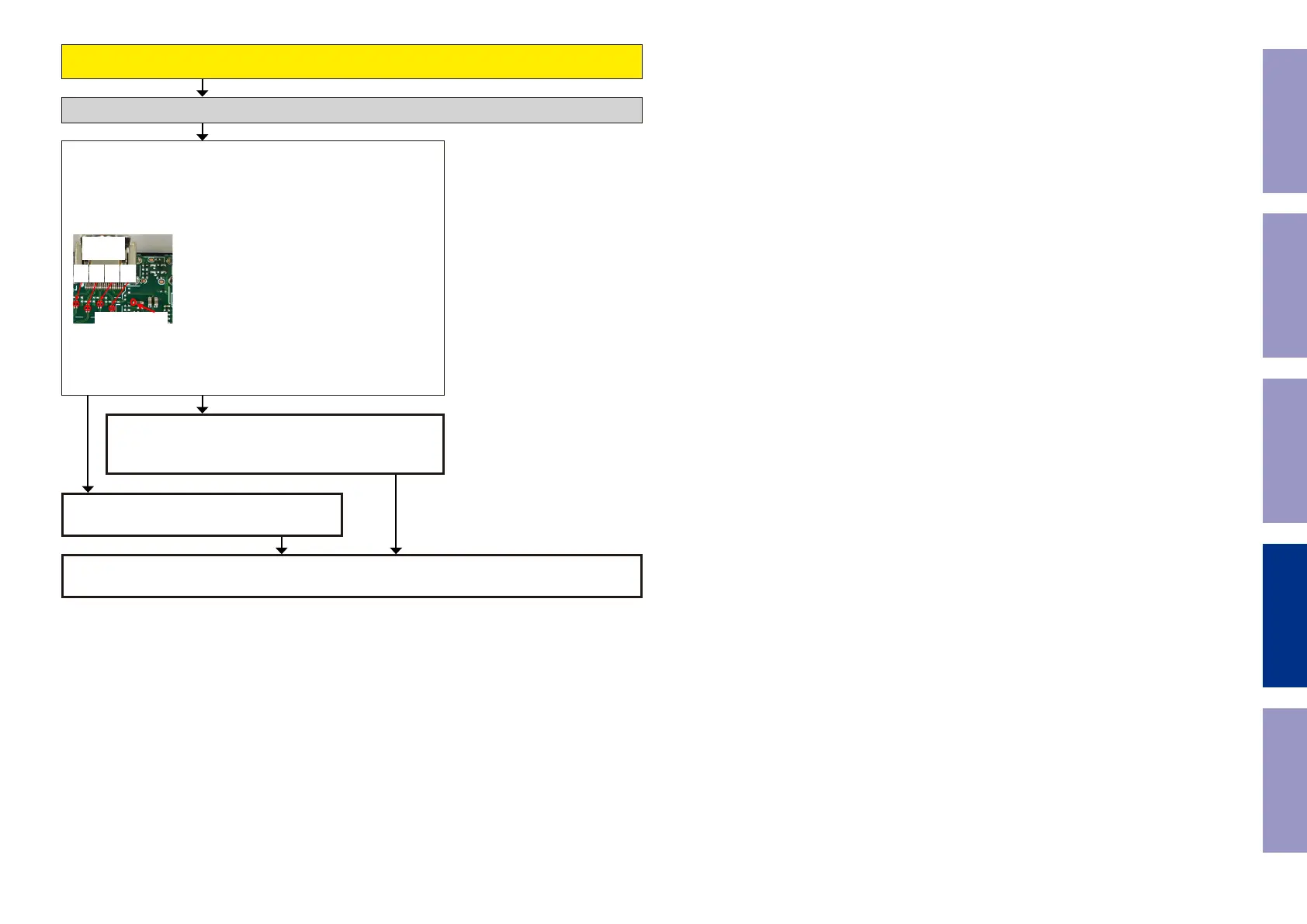

When the results of check item (3-16.4.) are "00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )
Check item(3-16.10.). Checking the HPD and RXSENSE. :
Does the test point near HDMI output terminal [N3402] indicate
(3.3V)?
Does the test point (HPD) near HDMI output terminal [N3402] indi-
cate "Hi(3-5V)"?
N3402
HDMI OUT
[MONITOR1]
D2+
D2-
D1+
D1-
D0+
D0-
CK+
CK-
L3806:HPD
Check the TMDS/HPD. (HDMI OUT1)
NOYES
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
131
To Next Page
