Check item(3-16.11.). Check the HPD and RXSENSE register value of
the HDMI TX device. :

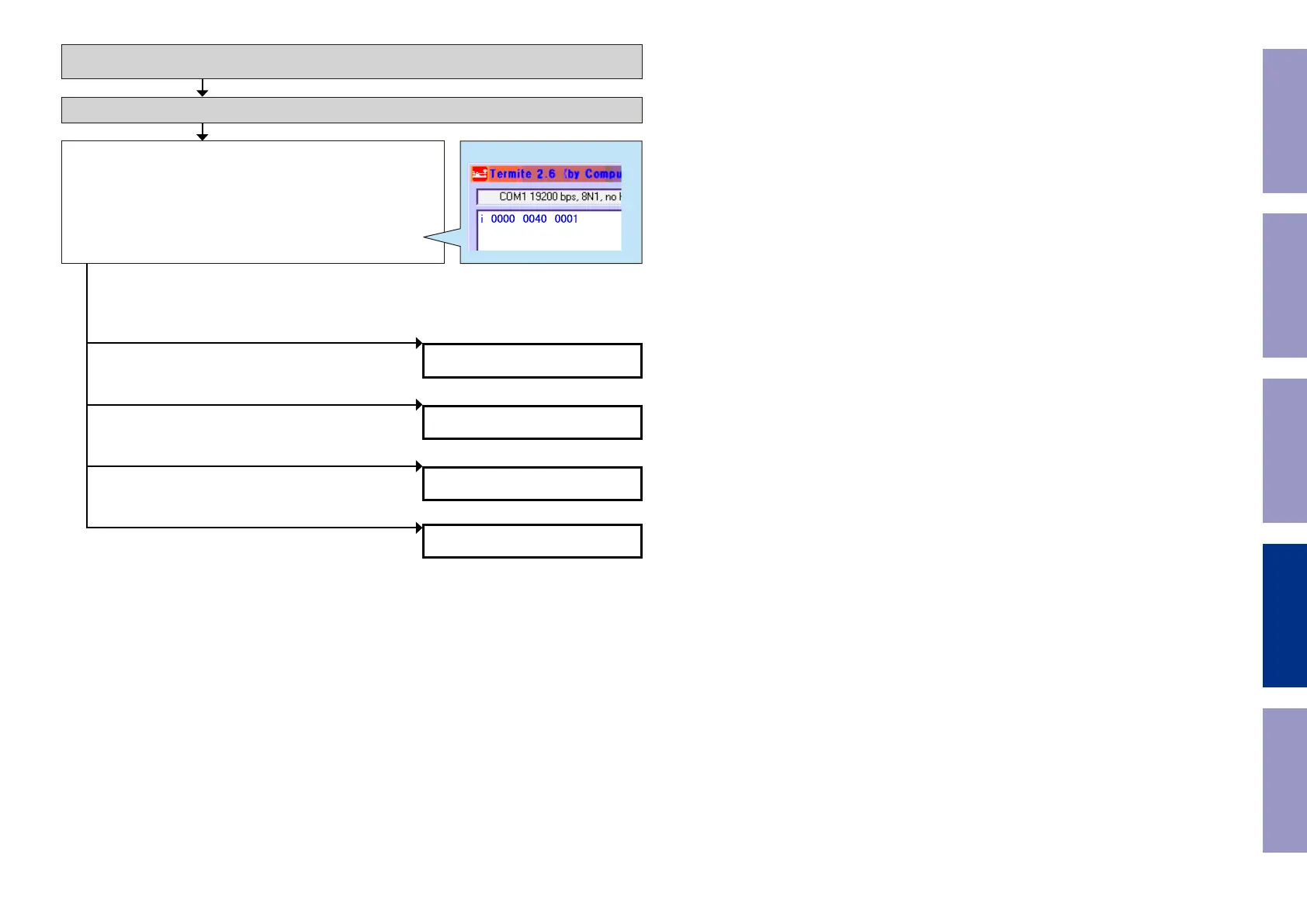

Send the following command from Termite.exe.
Send the command "i 0000 0040 0001".
Move to the branch destination according to the value returned.
Checking between Monitor 2 and the TV.
Connect Monitor2 to the TV and check the following items with the TV turned on.
Checking the HPD/RXSENSE status register. (HDMI OUT2)
Example
"01"
(Detection of HPD is OK / Detection of RXSENSE is not OK )
"03"
(Detection of HPD is OK / Detection of RXSENSE is OK )
"02"
(Detection of HPD is not OK / Detection of RXSENSE is OK )
"00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )
Go to check item (3-16.15.)
Go to check item (3-16.12.)
Go to check item (3-16.16.)
Go to check item (3-16.17.)
