Denon AVR-X7200W Service Manual

PRECAUTIONS DURING SERVICE
Initializing This Unit
Initialize this unit if you have replaced the microcomputer, one of the parts around the microcomputer, or the digital PCB.
1. Press the power button to turn off the power.

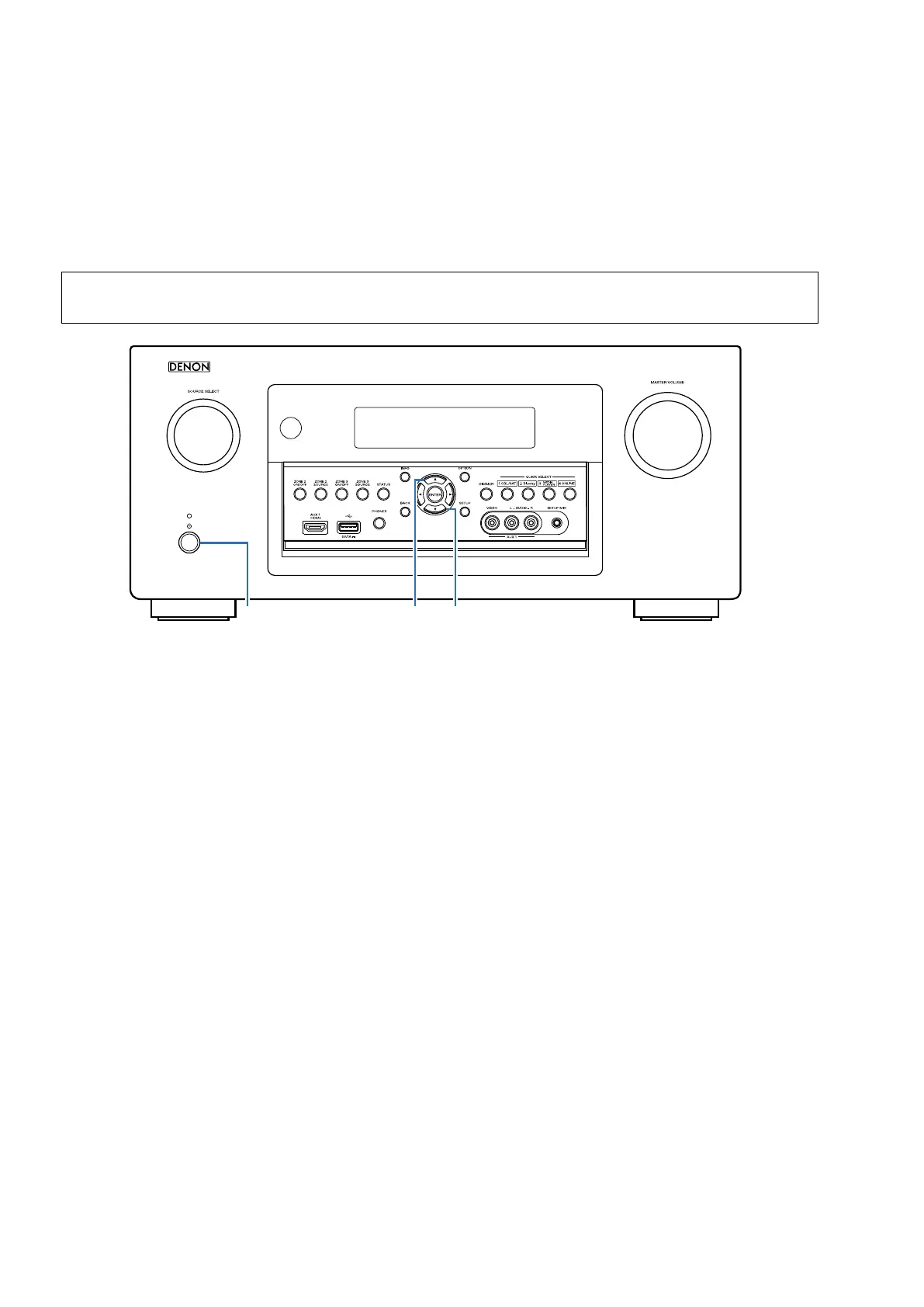

2. Hold down buttons "
CURSOR
d
" and "CURSOR
f
" at the same time and press the power button to turn on the power.
3. Release the buttons after conrming that the display ashes in intervals of approximately 1 second.
＊
The unit is initialized.
NOTE：
• If the status in step 3 does not occur, start again from step 1.
• Initializing the device restores settings congured by the user to the factory settings. Take note of your settings beforehand
and recongure them after initialization.
Service Jigs
The following jigs (extension cable kit) are used when repairing the PCBs.
Order the jigs from your dealer if necessary.
8U- 110084S : EXTENSION UNIT KIT : 2 Set
(See 78 page)
X
CURSOR
d
CURSOR
f
10

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
