Denon AVR-X7200W

3. RADIATOR ASSY

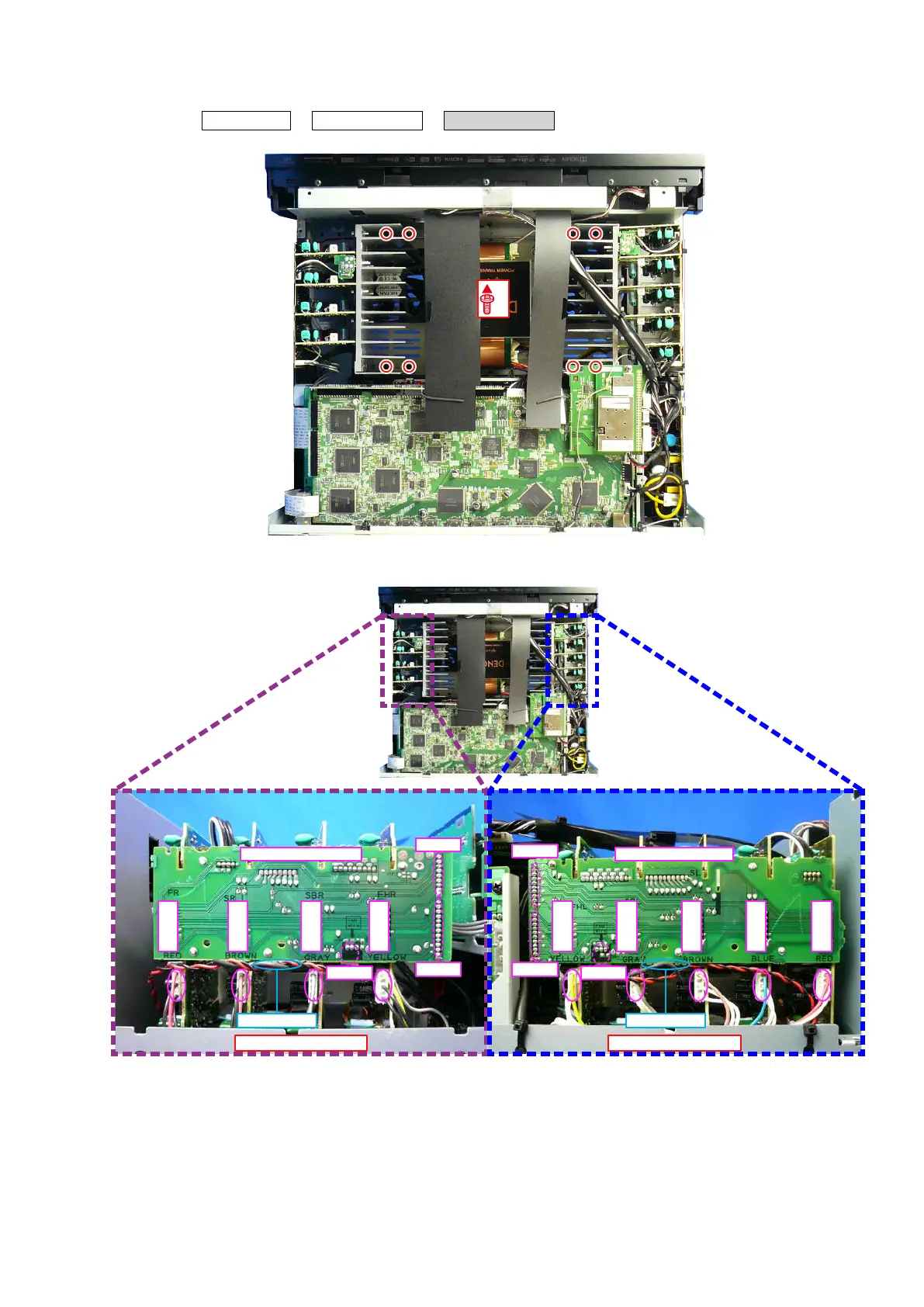

Proceeding : TOP COVER → CX870 ASSY → RADIATOR ASSY
(1) Remove the screws.
(2) Remove the STYLE PIN and connector wire.
x8
Shooting direction: CShooting direction: D
N5824 N5814
R-AMP CONNECT
FHR
YELLOW
SBR
GRAY
SR
BROWN
FR
RED
L-AMP CONNECT
FHL
YELLOW
SBL
GRAY
SL
BROWN
C
BLUE
FL
RED
N5842
N5841
N5833
N5834
STYLE PIN STYLE PIN
