Denon AVR-X7200W Service Manual

JIG FOR SERVICING
The following jigs (extension cable kit) are used when repairing the PCBs.
Order the jigs from your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.

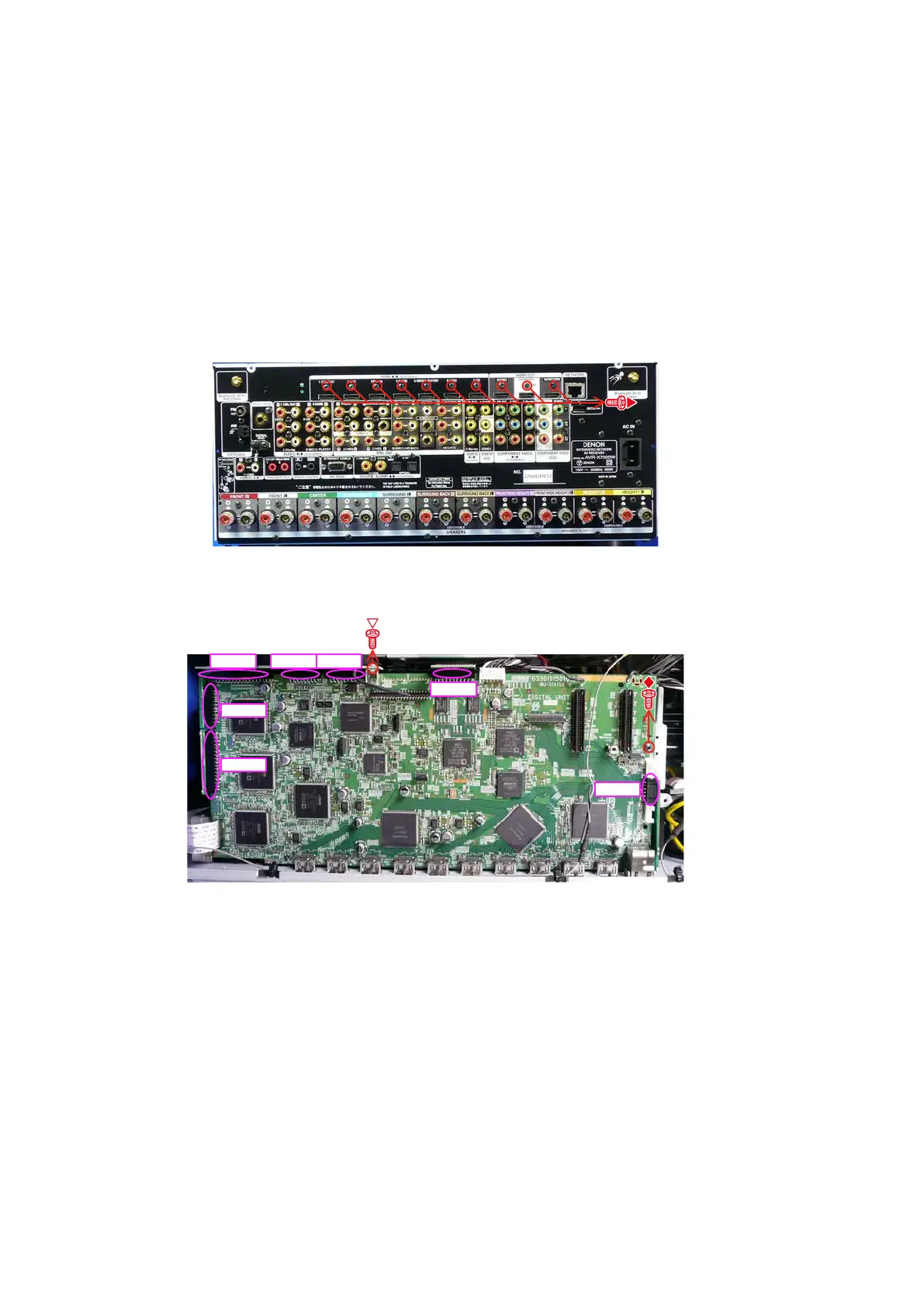

• Connection of Jig for DIGITAL PCB
-Items to Be Prepared-
8U- 110084S : EXTENSION UNIT KIT : 2 Set
Insulation sheet (Not supplied) : 1 sheet
Ground lead (Not supplied) : 1 pc
-Procedures-
(1) Remove the screws.
(2) Remove the connector PCB.
Front side
N1001 N5003 N5004
N1805
N1804
N1806
N604
78

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
