Denon AVR-X7200W Service Manual

TECHNICAL SPECIFICATIONS
n
Audio section
• Power amplifier
Rated output
:
Front：
150W+150W (8Ω, 20Hz - 20kHz with 0.05% T.H.D.)
190W+190W (6Ω, 1kHz with 0.7% T.H.D)
Center：
150W (8Ω, 20Hz - 20kHz with 0.05% T.H.D.)
190W (6Ω, 1 kHz with 0.7 % T.H.D.)
Surround：
150W+150W (8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.)
190W+190W (6Ω, 1 kHz with 0.7 % T.H.D.)
Surround back：
150W+150W (8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.)
190W+190W (6Ω, 1 kHz with 0.7 % T.H.D.)
Height1 / Front wide / Height2：
150W+150W (8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.)
190W+190W (6Ω, 1 kHz with 0.7 % T.H.D.)
Rated output：
170 W x 2-channel (8 Ω)
280 W x 2-channel (4 Ω)
Output connectors：4 - 16Ω
n
Analog section
Input sensitivity/Input impedance：200 mV/47 kΩ
Frequency response： 10 Hz - 100 kHz — +1, -3 dB(Direct mode)
S/N：102 dB(IHF-A weighted, Direct mode)
Distortion：0.005 % (20 Hz – 20 kHz) (Direct mode)
Rated output：1.2 V
n
Digital section
D/A output： Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input：Format — Digital audio interface
n
Phono equalizer section
Input sensitivity： 2.5 mV
RIAA deviation：
±1 dB (20 Hz to 20 kHz)
S/N： 74 dB (IHF-A)
Distortion factor： 0.03 % (1 kHz, 3 V)
n
Video section
• Standard video connectors
Input/output level and impedance：
1 Vp-p, 75 Ω
Frequency response：5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input/output level and impedance：
Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response：5 Hz - 60 MHz — 0, -3 dB
n
Tuner section
Reception frequency range： F M 87.5 MHz - 107.9 MHz (for E3)
FM 87.5 MHz - 108.0 MHz (for E2, E1C)
FM 76.0 MHz - 90.0 MHz (for JP)
AM 530 kHz - 1710 kHz (for E3)
AM 522 kHz - 1611 kHz (for E2, E1C)
AM 522 kHz - 1629 kHz (for JP)
Effective sensitivity：
FM 1.5μV (14.8dBf) (for E3)
FM 1.2μV (12.8dBf) (for E2, E1C, JP)
AM 20 μV (for E3)
AM 18 μV (for E2, E1C, JP)
50 dB sensitivity：
MONO ― 2.8 μV (20.2 dBf) (for E2, E1C, JP)
S/N ratio (IHF-A)： MONO ― 70 dB (for E3)
MONO ― 78 dB (for E2, E1C, JP)
STEREO ― 68 dB (for E3)
STEREO ― 67 dB (for E2, E1C, JP)
HD ― FM 85dB AM 85dB (for E3)
Distortion (1 kHz)：
MONO ― 0.1 % (for E3)
MONO ― 0.7 % (1 kHz) (for E2, E1C, JP)
SRETEO ― 0.2 % (for E3)
SRETEO ― 1.0 % (1 kHz) (for E2, E1C, JP)
HD ― FM 0.02% AM 0.02% (for E3)
n
Wireless LAN section
Network type (wireless LAN standard)： Conforming to Wi-Fi®z1
Security：
WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency：
2.4 GHz
No. of channels： 1 - 11 ch (for E3)
1 - 13 ch (for E2, E1C, JP)
z1
The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n
Bluetooth section
Communications system： Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power：Maximum 2.5 mW (Class 2)
Maximum communication range：Approx. 32.8 ft/10 m in line of sight
Frequency band：2.4 GHz band
Modulation scheme：FHSS (Frequency-Hopping Spread Spectrum)
Supported proles：
A2DP (Advanced Audio Distribution Prole) 1.2
AVRCP (Audio Video Remote Control Prole) 1.4
Corresponding codec：SBC, AAC
Transmission range (A2DP)：20 Hz - 20,000 Hz
n
General
Power supply： (for E3) : AC 120 V, 60 Hz
(for E2) : AC 230 V, 50 Hz / 60Hz
(for E1C) : AC 220 V, 50 Hz
(for JP) : AC 100 V, 50 Hz / 60Hz
Power consumption：780W
Power consumption in standby mode：0.1W
Power consumption in CEC standby mode：0.5W
Power consumption in network standby mode ：4.5W
(Adapted to NEW DIGITAL PCB products) ：2.7W
For purposes of improvement, specications and design are subject to
change without notice.

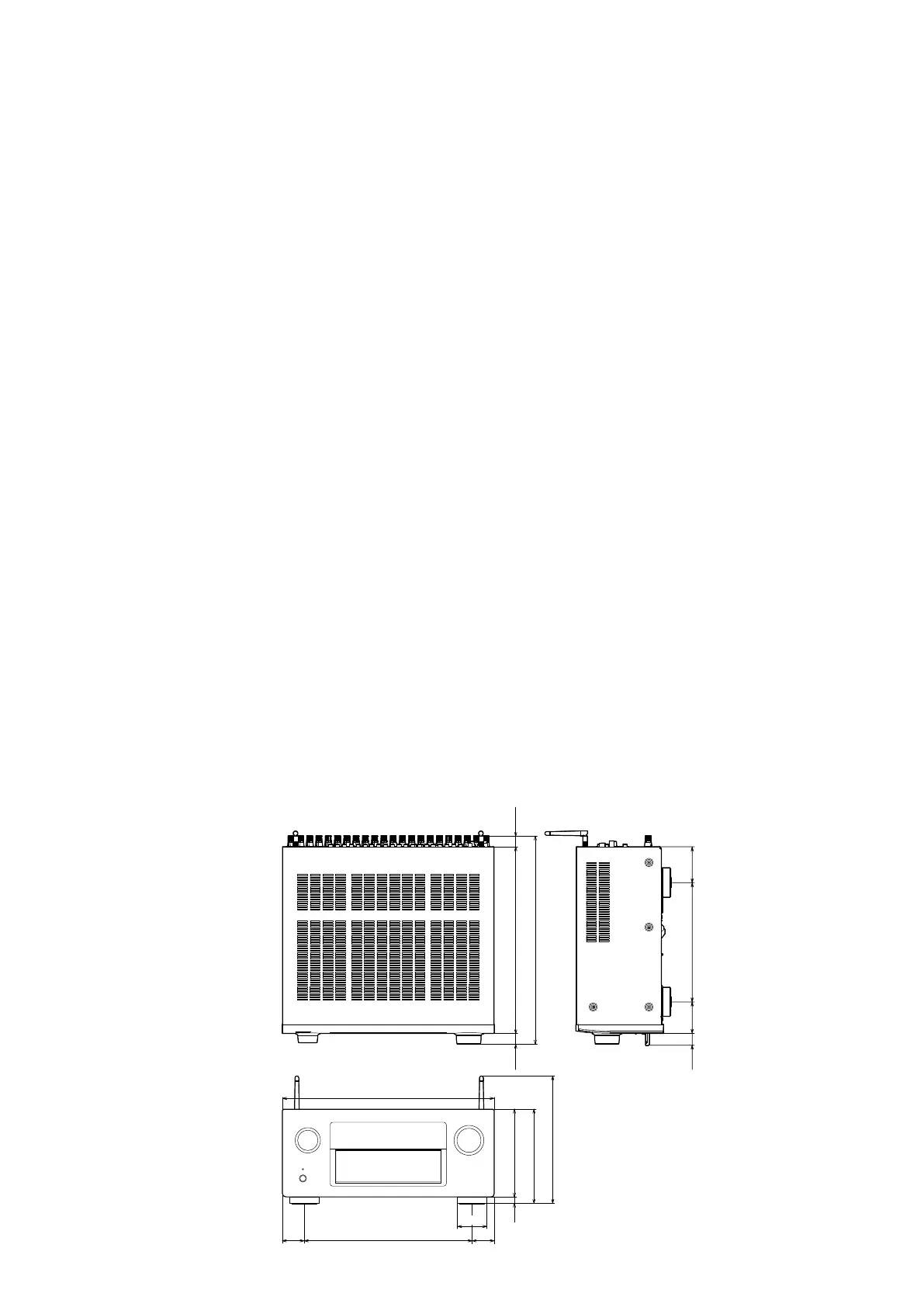

DIMENSION
Unit： in. (mm)
Weight： 31 lb 1 oz (14.1 kg)
434
16 180
196
259
344
60
45 45
245
65
73
25
383 427
22
22
h
9

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
