Q
3
Q
4
Q
8
Q
1
Q
2
Q
7
Q
6
Q
5
K

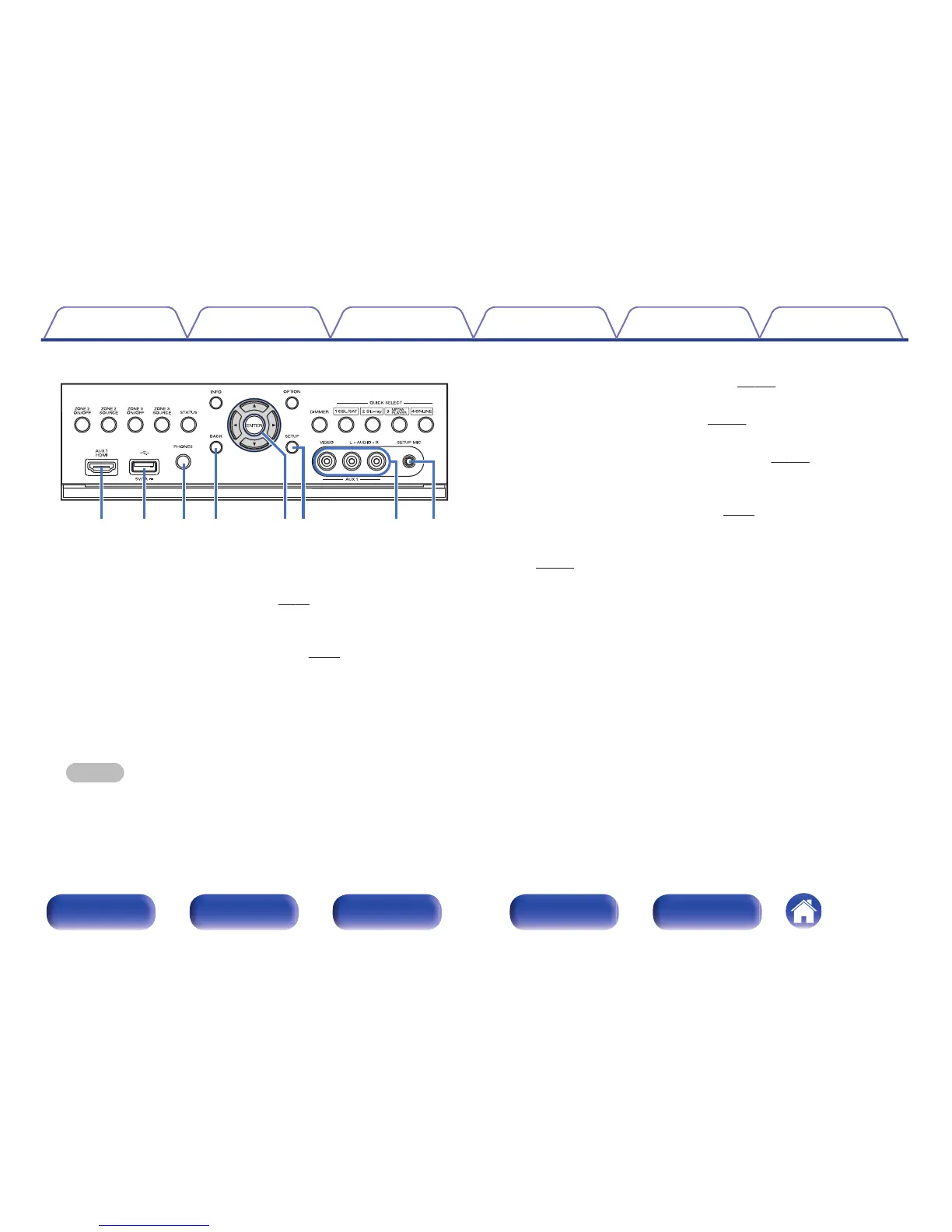

AUX1 HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v p. 73)
L
USB port
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod. (v p. 76)
M
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
N
BACK button
This returns to the previous screen. (v
p. 186)
O
ENTER button
This determines the selection. (v p. 186)
P
SETUP button
This displays the menu on the TV screen. (v
p. 186)
Q
AUX1 INPUT connector
Used to connect analog output compatible devices such as video
camcorders and game consoles. (v
p. 73)
R
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 227)
Contents Connections Playback Settings Tips Appendix
22
Front panel Display Rear panel Remote Index
