Denon AVR-X7200W User Manual

o

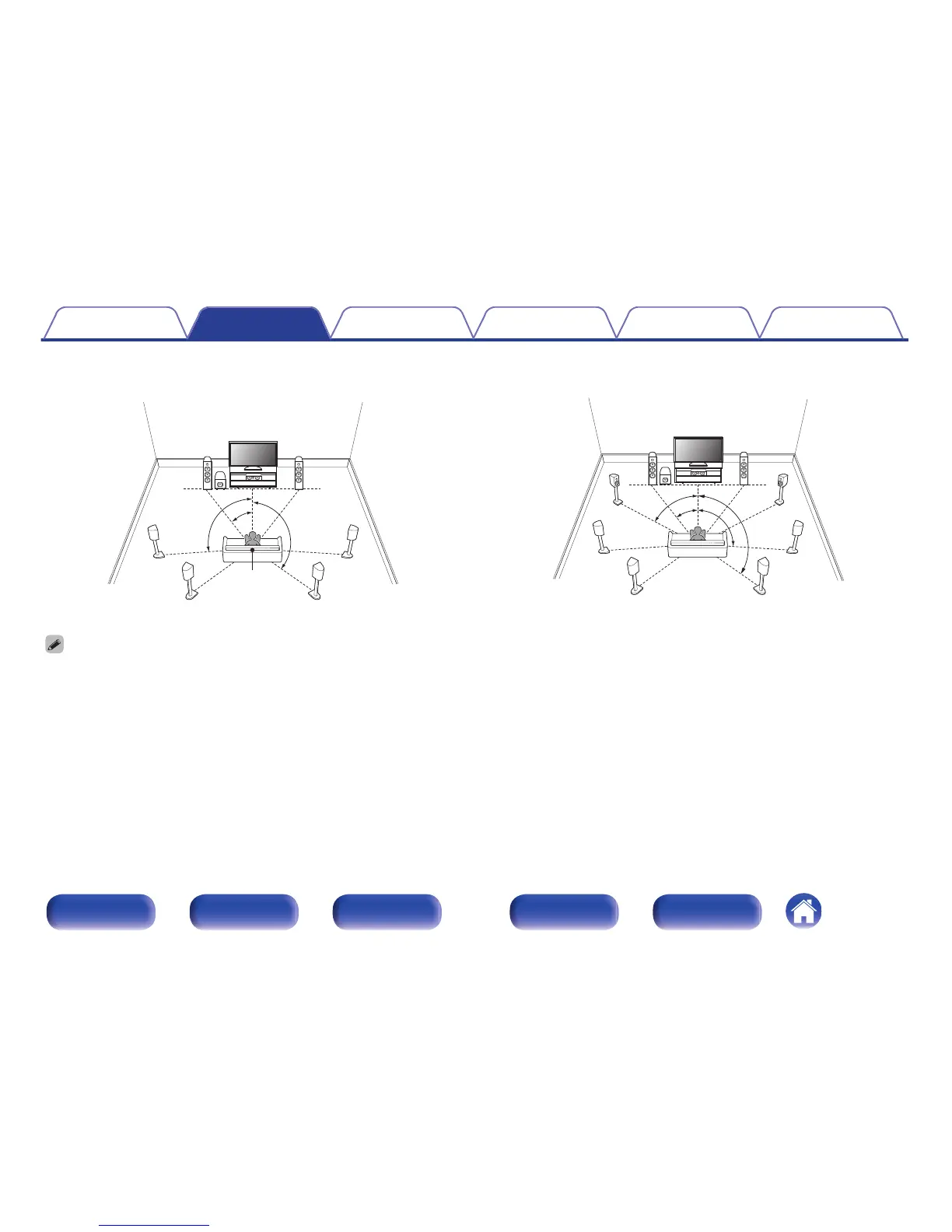

When 7.1-channel speakers are installed using
surround back speakers
.
z1
z2
z3
FL
SW
C
SL
SBL
FR
SR
SBR
Listening
position
z
1:22° - 30°
z
2:90° - 110°
z
3:135° - 150°
When using a single surround back speaker, place it directly behind the listening
position.
o
When 9.1-channel speakers are installed using
front wide speakers
.
z3
z2
z1
z4
SBL
SBR
FL
SW
C
SL
FR
SR
FWL
FWR
z
1: 22° - 30°
z
2: 55° - 60°
z
3: 90° - 110°
z
4: 135° - 150°
Contents
Connections Playback Settings Tips Appendix
39
Front panel Display Rear panel Remote Index

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
